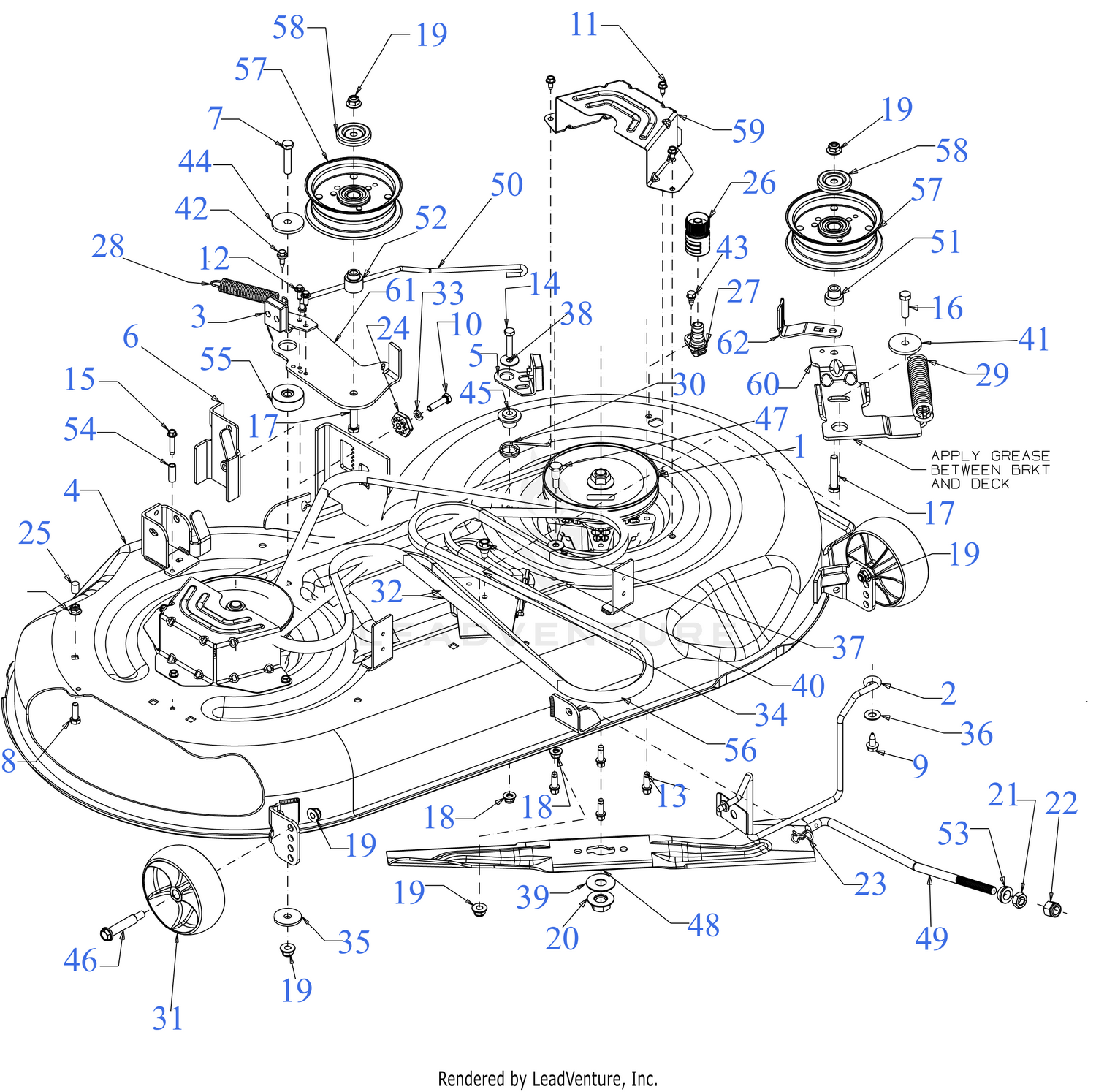

| Ref | Part Number | Description |
|---|
| 2 |
683-04414-0637 |
BELT KEEPER BRACKET ASSEMBLY (POWDER BLACK) Price: $22.21 |
| 3 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) Price: $87.42 |
| 5 |
983-05396 |
DECK BRAKE ASSEMBLY Price: $88.32 |
| 7 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 8 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-0528 |
SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 11 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 12 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 13 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 14 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 15 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 16 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 17 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04065 |
NUT Price: $3.68 |
| 20 |
712-07050 |
HEX FLANGE NUT 5/8-18 GR5 Price: $5.16 |
| 21 |
712-3048 |
HEX NUT Price: $4.08 |
| 22 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 23 |
714-04043 |
PIN:COTTER Price: $4.24 |
| 24 |
917-04074 |
DECK ADJUSTMENT GEAR Price: $11.45 |
| 25 |
720-05010 |
VINYL CAP Price: $3.70 |
| 26 |
921-04041 |
WATER NOZZLE ADAPTER Price: $20.19 |
| 27 |
731-07487 |
DECK WASH NOZZLE Price: $3.86 |
| 28 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 29 |
732-04909 |
EXTENSION SPRING Price: $11.59 |
| 30 |
732-08321 |
TORSION SPRING Price: $6.11 |
| 31 |
734-06305A |
DECK WHEEL (5.0 DIA x 1.875) Price: $14.82 |
| 32 |
735-0271A |
BUMPER, .62 DIA x .3 Price: $7.84 |
| 33 |
936-0119 |
LOCK WASHER 5/16 Price: $4.29 |
| 34 |
736-0226 |
Flat Washer, .474 x .879 x .064 This part replaces 936-0226. Price: $3.64 |
| 35 |
736-0227 |
FLAT WASHER .390x1.500x.134 Price: $5.78 |
| 36 |
736-0300 |
FLAT WASHER Price: $3.93 |
| 37 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 38 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 39 |
736-3088 |
FLAT WASHER .635X1.585X.062 HDN Price: $3.90 |
| 40 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 41 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 42 |
738-04184A |
SHOULDER SCREW Price: $5.99 |
| 43 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 44 |
738-05082 |
SHOULDER SPACER Price: $7.32 |
| 45 |
738-05272 |
DOUBLE SHOULDER SPACER .750 x .135 Price: $6.24 |
| 46 |
738-06694 |
SHOULDER BOLT (.50 X 2.0 x 3/8 -16) Price: $7.04 |
| 47 |
738-0754 |
SHOULDER SCREW Price: $3.76 |
| 48 |
490-110-F192 |
GENUINE FACTORY PARTS® 46" High-Lift Blade Set (S-Shaped Mount) 742P05510, 742-05510 Price: $66.78 |
| 49 |
747-05141B |
DECK FRONT LIFT ROD Price: $19.44 |
| 50 |
747-06538 |
DECK BRAKE ROD Price: $12.90 |
| 51 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 52 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 53 |
748-06584 |
DECK LIFT PIVOT CUP Price: $3.78 |
| 54 |
750-0566A |
SPACER Price: $9.17 |
| 55 |
750-06184 |
SPACER .385ID x 1.75OD x .585THK Price: $10.02 |
| 56 |
490-501-F009 |
GENUINE FACTORY PARTS® 46" LT-5 Deck Belt 754-04219, 954-04219 Price: $46.63 |
| 56 |
490-501-Y009 |
Troy-Bilt 46" DECK DRIVE BELT (04219) Price: $46.63 |
| 56 |
954-04219 |
V-BELT A SEC x 103.24 Price: $46.63 |
| 56 |
CMXGZAM501009 |
BELT:DK:DR:46":LT-5/NX-9:4219 Price: $46.63 |
| 56 |
OCC-754-04219 |
V-BELT TYP:A SEC X103.24 Price: $46.63 |
| 57 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 58 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 60 |
783-08618 |
IDLER BRACKET 46T (LH) Price: $22.36 |
| 61 |
783-08654C |
DECK IDLER BRACKET This part replaces 783Z08654C. Price: $62.71 |
