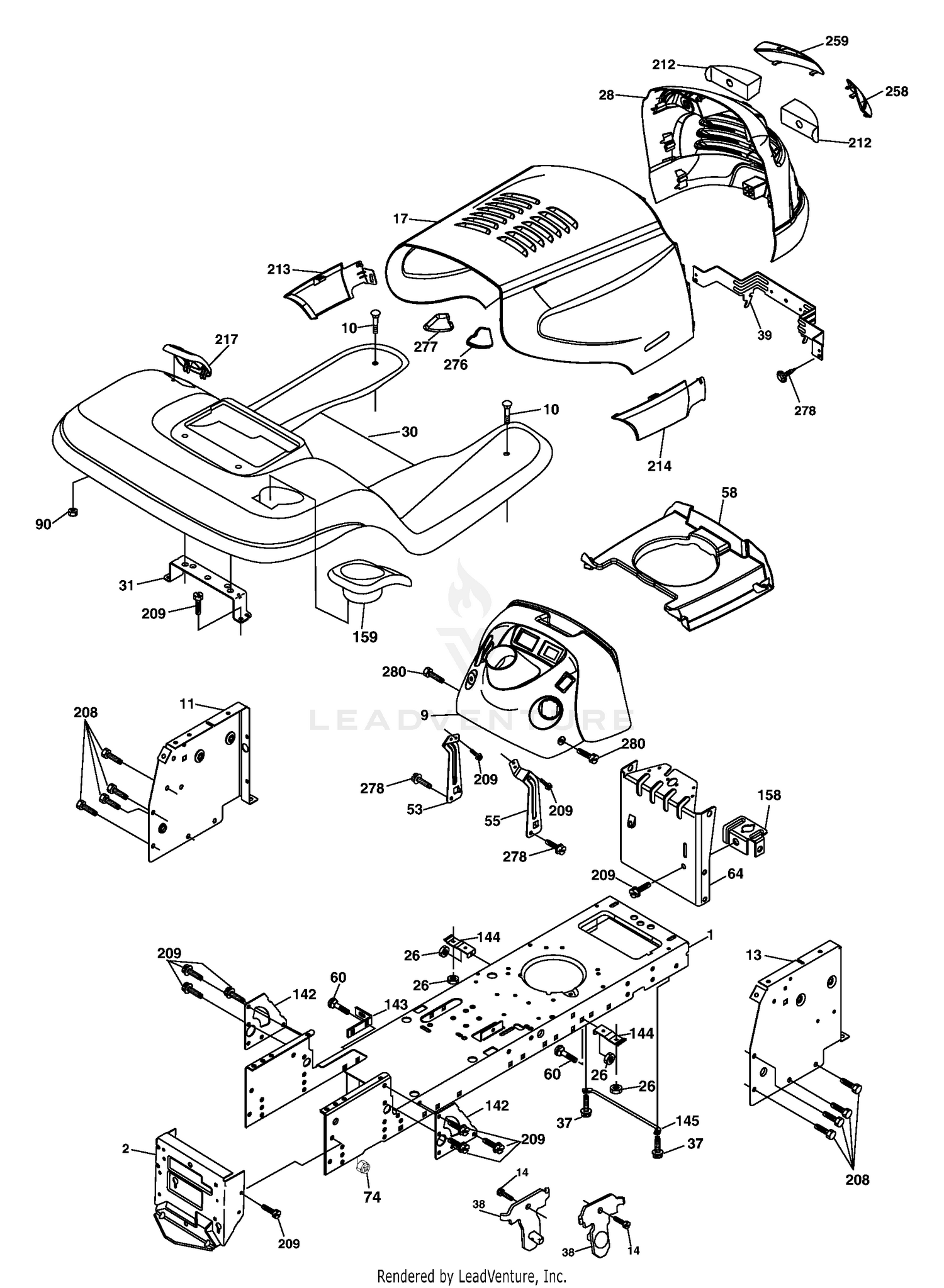

| Ref | Part Number | Description |
|---|
| 1 |
532174619 |
Chassis Stamping Price: $83.99 |
| 2 |
532176554 |
Drawbar Price: $23.99 |
| 9 |
532196095 |
DASH This part replaces 532196138. Price: $84.99 |
| 10 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
Panel Dash Lh Price: $8.99 |
| 13 |
532172105 |
PANEL This part replaces 532181719. Price: $14.99 |
| 14 |
817490608 |
Screw Thdrol 3/8-16 x 1/2 Price: $3.99 |
| 17 |
532188374 |
HOOD This part replaces 532189977. Price: $108.99 |
| 26 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532194806. Price: $201.99 |
| 31 |
532139976 |
Bracket Support Fender Price: $7.99 |
| 37 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 38 |
532175710 |
Bracket Asm Pivot Mower Rear Price: $5.99 |
| 39 |
532407807 |
Bracket Pivot This part replaces 532174714. Price: $14.99 |
| 53 |
532188373 |
Bracket Dash LH Price: $7.99 |
| 55 |
532188372 |
Bracket Dash RH Price: $8.99 |
| 58 |
532189352 |
Air Duct Engine Price: $20.99 |
| 60 |
872140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: $3.99 |
| 64 |
532174997 |
Dash Lower STLT Price: $22.99 |
| 74 |
873680600 |
Nut Crownlock 3/8-16 unc Price: $1.99 |
| 90 |
532124346 |
Nut Self-thd Wsh-Hd 1/4 Price: $3.99 |
| 142 |
532175702 |
Plate Reinforcement STLT Price: $4.99 |
| 143 |
532186689 |
Bracket Swaybar Chassis Price: $2.99 |
| 144 |
532175582 |
Bracket Pnt Footrest STLT Price: $4.99 |
| 145 |
532409167 |
Rod Pivot Hood This part replaces 532156524. Price: $8.99 |
| 158 |
532162037 |
Bracket Parking Brake Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532192404. Price: $7.99 |
| 208 |
817670608 |
Screw Thdrol 3/8-16 x 1/2 TYT Bl Price: $2.99 |
| 209 |
817000612 |
Screw 3/8-16 x 3/4 Price: $2.99 |
| 212 |
532188267 |
Insert Lens Reflect Price: $7.99 |
| 213 |
532188266 |
SKIRT.SIDE.ELITE.LH This part replaces 532189979. Price: $7.99 |
| 214 |
532188265 |
SKIRT SIDE RH This part replaces 532189978. Price: $7.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $6.99 |
| 258 |
532188263 |
LENS ELITE CLEAR RH This part replaces 532189981. Price: $11.99 |
| 259 |
532188264 |
LENS.ELITE.HUSQ.CLEAR.LH This part replaces 532189982. Price: $11.99 |
| 276 |
532189274 |
Bumper Hood RH Price: $7.99 |
| 277 |
532189275 |
Bumper Hood LH Price: $5.99 |
| 278 |
532416358 |
SCREW, NO. 10 This part replaces 532191611. Price: $2.99 |
