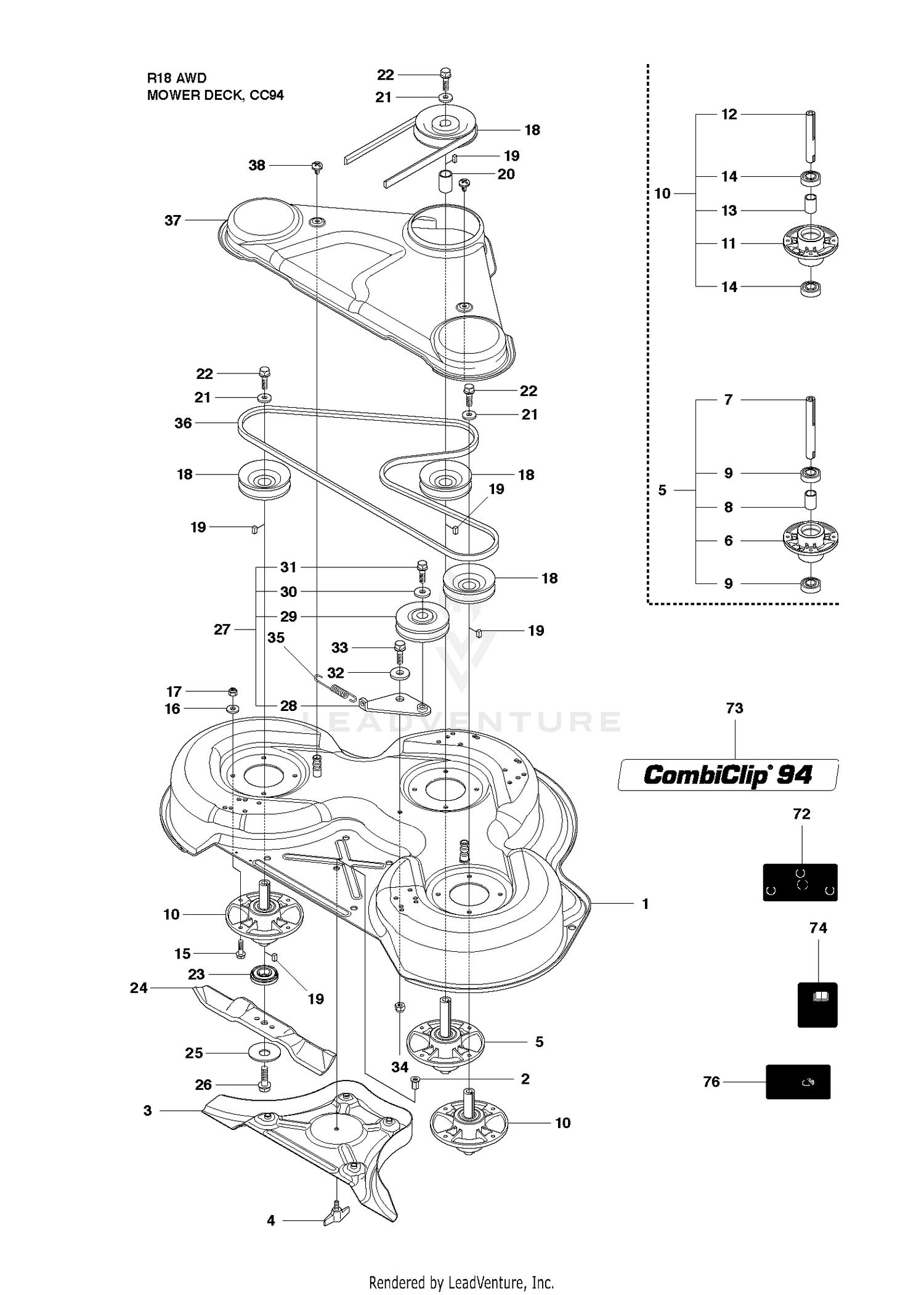

MOWER DECK / CUTTING DECK 2
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 581237401 | DECK SHELL ASSY This part replaces 544065701. Price: $449.99 |
| 2 | 110-8262 | GAUGE-FUEL Price: $109.71 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 3 | 95-8972 | GROMMET Price: $10.92 |
| 4 | 104-5228 | FITTING-ELBOW, 90 DEG Price: $17.50 |
| 4 | 544066101 | KNOB Price: $4.99 |
| 5 | 46-6560 | BUSHING Price: $2.94 |
| 5 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 6 | 46-6550 | FITTING-ELBOW, 90 DEG This part replaces 1-643259. Price: $37.39 |
| 6 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 7 | 112-6374 | FITTING-STRAINER Price: $23.22 |
| 7 | 544067901 | SHAFT Price: $39.99 |
| 8 | 544068001 | SPACER Price: $11.99 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 11 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 12 | 535428702 | AXLE Price: $49.99 |
| 13 | 535428801 | SPACER Price: $7.99 |
| 14 | 738220519 | BALL BEARING Price: $6.99 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 579652510 | BLADE Price: $22.99 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589530701 | BELT Price: $49.99 |
| 37 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 574210301 | Price: Call Us |
| 74 | 506929001 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
