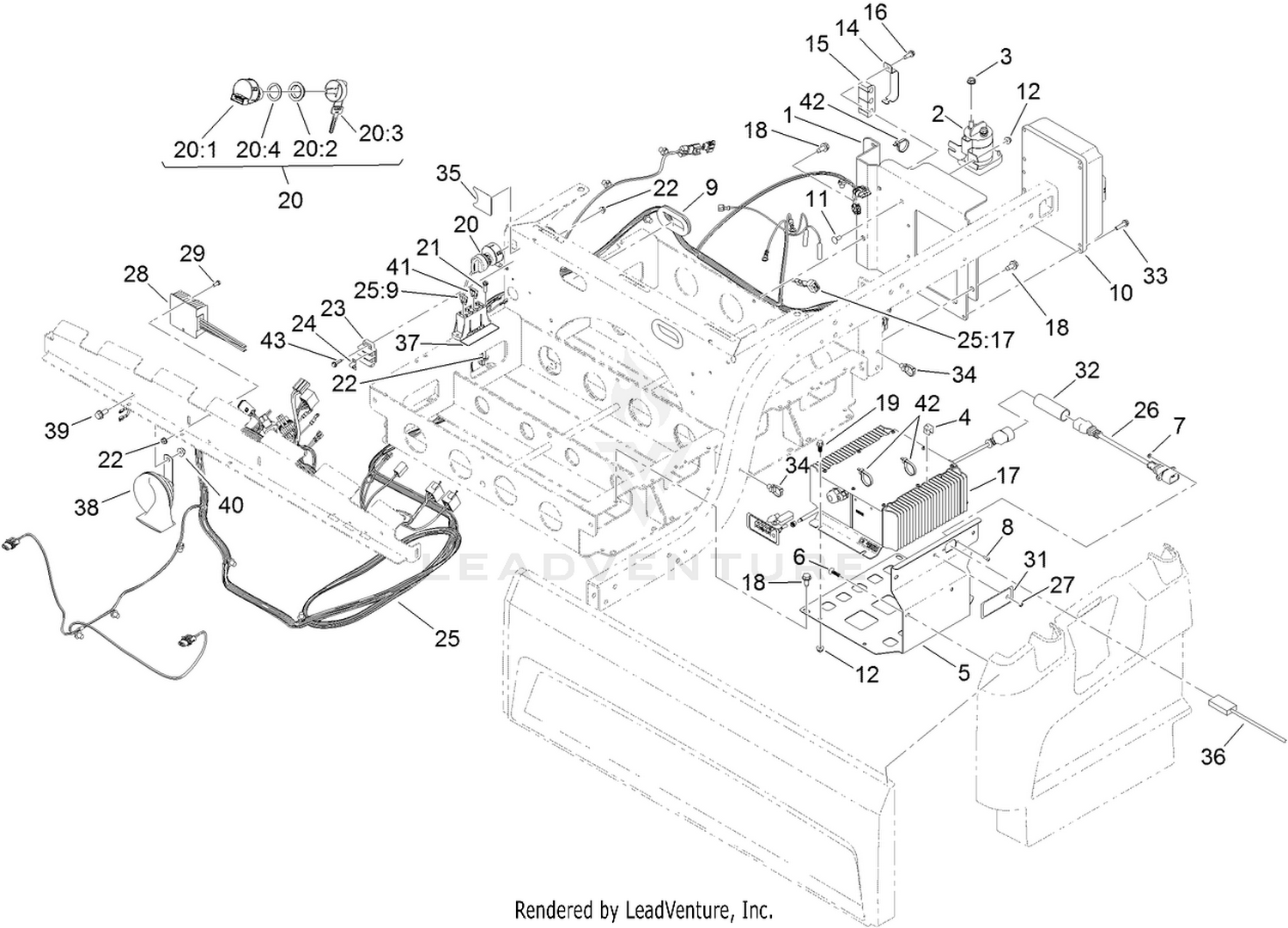

| Ref | Part Number | Description |
|---|
| 1 |
131-8415-03 |
BRACKET-CONTROLLER Price: $80.04 |
| 2 |
104-7136 |
CONTACTOR-48V Price: $256.94 |
| 3 |
107-0380 |
NUT-HHF Price: $1.22 |
| 4 |
32180-082 |
CLIP-EDGE W/TIE, PERPENDICULAR Price: $5.22 |
| 5 |
131-8483-03 |
BRACKET-CHARGER Price: $43.76 |
| 6 |
120-2349 |
SCREW Price: $0.83 |
| 7 |
3296-9 |
NUT-HEX Price: $0.25 |
| 8 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 9 |
240-12 |
GROMMET Price: $28.58 |
| 10 |
137-9898 |
CONTROLLER-SEVCON Price: $2,105.36 |
| 11 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 12 |
104-7201 |
NUT-HF Price: $0.69 |
| 14 |
131-8482 |
RETAINER-ISOLATOR Price: $10.53 |
| 15 |
131-8420 |
ISOLATOR-CLAMP Price: $6.37 |
| 16 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 17 |
131-8490 |
CHARGER-48V ONBOARD Price: $1,732.69 |
| 18 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 19 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 20 |
110-2580 |
SWITCH-KEY, SUPERVISOR Price: $110.15 |
| 21 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 22 |
3290-148 |
NUT-HF Price: $0.25 |
| 23 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 24 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 25 |
122-0524 |
HARNESS-WIRE, 48V VEHICLE Price: $936.28 |
| 26 |
131-8497 |
CORDSET Price: $45.80 |
| 27 |
131-8499 |
HOLDER-LED Price: $0.52 |
| 28 |
131-8509 |
CONVERTER-48V TO 12V Price: $286.60 |
| 29 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 31 |
131-8495 |
DECAL-FUNCTION, CHARGER Price: $4.70 |
| 32 |
107-0341 |
TUBE-SHRINK, HEAT Price: $5.46 |
| 33 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 34 |
32180-030 |
CLIP-TIE Price: $4.19 |
| 35 |
131-8527 |
DECAL-MODE Price: $11.28 |
| 36 |
107-0382 |
POWERCORD-AC, EUROPE Price: $26.17 |
| 36 |
107-0383 |
POWERCORD-AC, U.K. Price: $179.73 |
| 37 |
131-8551 |
DECAL-FUSE BLOCK, 48V Price: $5.01 |
| 38 |
107-0358 |
HORN Price: $121.89 |
| 39 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 40 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 41 |
117-4728 |
FUSE-BLADE, 30A Price: $19.75 |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
