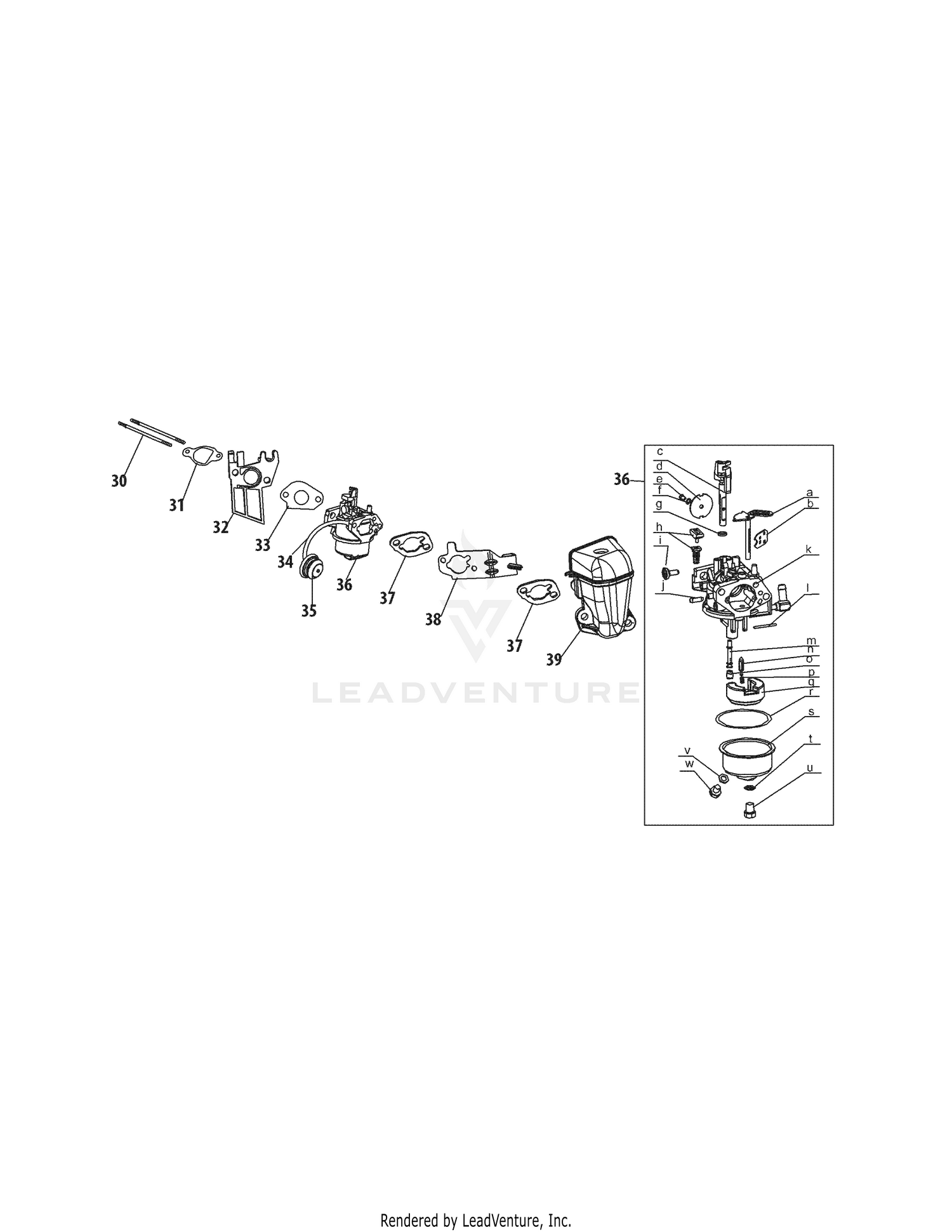

| Ref | Part Number | Description |
|---|
| a |
None |
CHOKE SHAFT |
| b |
None |
CHOKE PLATE |
| c |
None |
THROTTLE SHAFT |
| d |
None |
THROTTLE PLATE |
| e |
None |
SCREW M3×6 |
| f |
None |
LOCK WASHER |
| g |
None |
GASKET, THROTTLE PLATE |
| h |
None |
IDLE JET ASSEMBLY |
| i |
None |
IDLE SPEED ADJUSTING SCREW |
| j |
None |
MIXTURE SCREW |
| k |
None |
CARBURETOR BODY |
| l |
None |
FLOAT PIN |
| m |
None |
EMULSION TUBE (BP19C[B]-0006B) |
| n |
None |
NEEDLE VALVE |
| o |
None |
MAIN JET |
| p |
None |
NEEDLE VALVE SPRING |
| q |
None |
FLOAT |
| r |
951-11589 |
FUEL BOWL GASKET Price: $6.04 |
| s |
908-05001 |
FLOAT BOWL This part replaces 608-05001. Price: $7.16 |
| t |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| u |
710-04945 |
FUEL BOWL MOUNTING BOLT Price: $3.66 |
| v |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 30 |
710-05093 |
STUD M6×92 Price: $3.65 |
| 31 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 32 |
751P11568A |
INSULATOR This part replaces 951-11568. Price: $3.05 |
| 33 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 34 |
935-05038 |
FUEL HOSE 3.2×6.5×150 Price: $11.24 |
| 35 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 36 |
951-05251 |
CARBURETOR Price: $101.36 |
| 37 |
751P11897B |
CARBURETOR GASKET This part replaces 951-11897. Price: $1.61 |
| 38 |
951-14869 |
CHOKE CONTROLER ASSY Price: $6.20 |
| 39 |
951-14870 |
HEATER BOX Price: $14.87 |
