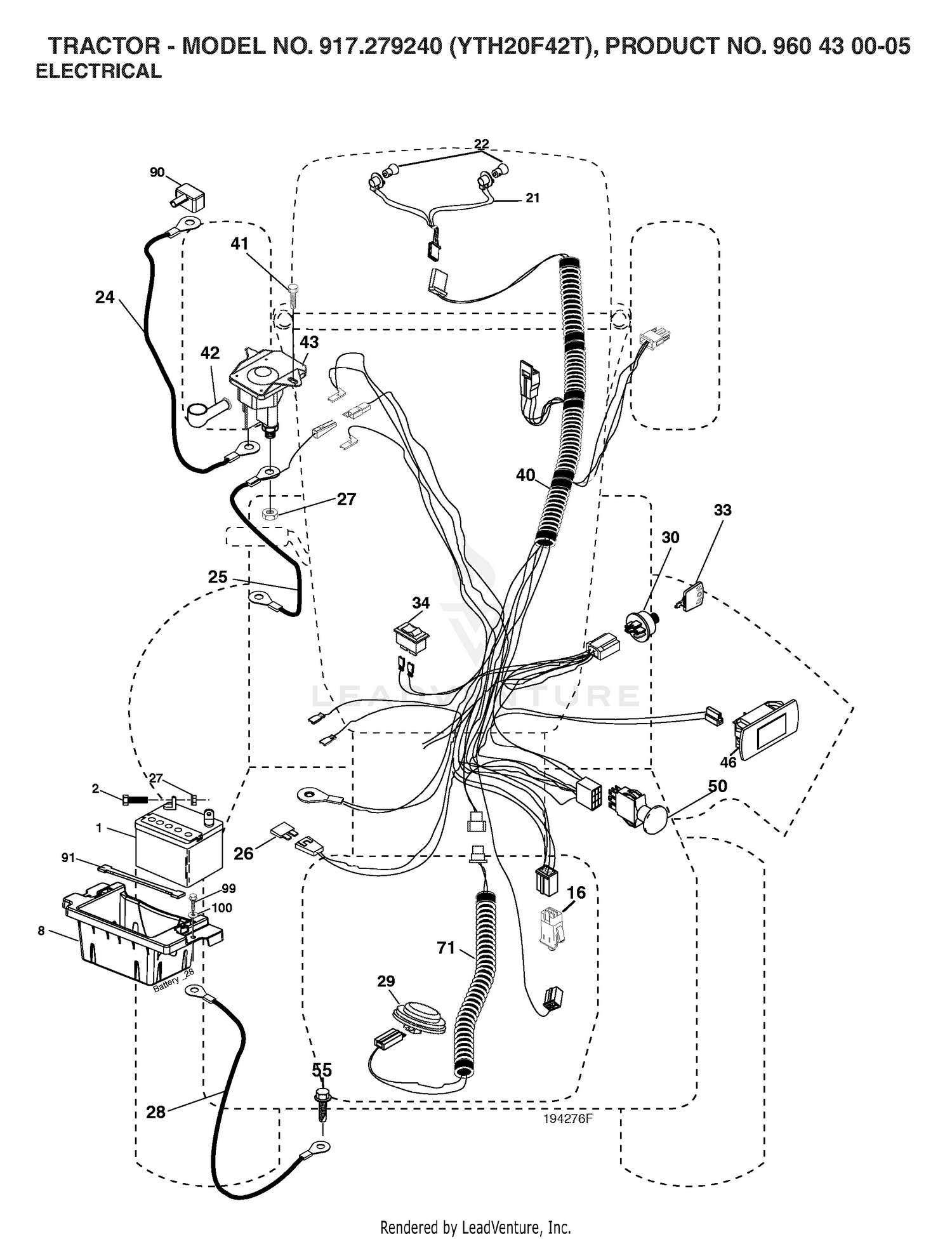

| Ref | Part Number | Description |
|---|
| 1 |
321-10 |
SCREW-HH Price: $1.29 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
321-4 |
SCREW-HH Price: $0.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 4 |
13-3710 |
WASHER Price: $3.05 |
| 5 |
3247-8 |
SCREW-SET, HSH Price: $2.78 |
| 6 |
3218-3 |
NUT-JAM Price: $0.25 |
| 7 |
13-7700 |
HUB-ASM *R Price: $595.54 |
| 8 |
3296-8 |
NUT-HEX Price: $1.29 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 10 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 12 |
13-7560 |
SHAFT WA Price: $2,466.14 |
| 13 |
13-7520 |
PLATE-END Price: $166.67 |
| 14 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 15 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 16 |
3218-17 |
NUT-JAM Price: $22.60 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
13-7530 |
END SPACER Price: $88.31 |
| 18 |
13-7550 |
SPACER WA Price: $95.87 |
| 19 |
2710-29 |
LINK Price: $21.76 |
| 20 |
13-4580 |
CHAIN Price: $580.55 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
13-7740 |
SPROCKET ASSEMBLY *R Price: $484.56 |
| 24 |
13-4570-01 |
IDLER SPROCKET This part replaces 13-4570. Price: $102.29 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
13-7640 |
WASHER Price: $1.03 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 71 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 90 |
532400274 |
COVER TERMINAL BATTERY Price: $99.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
