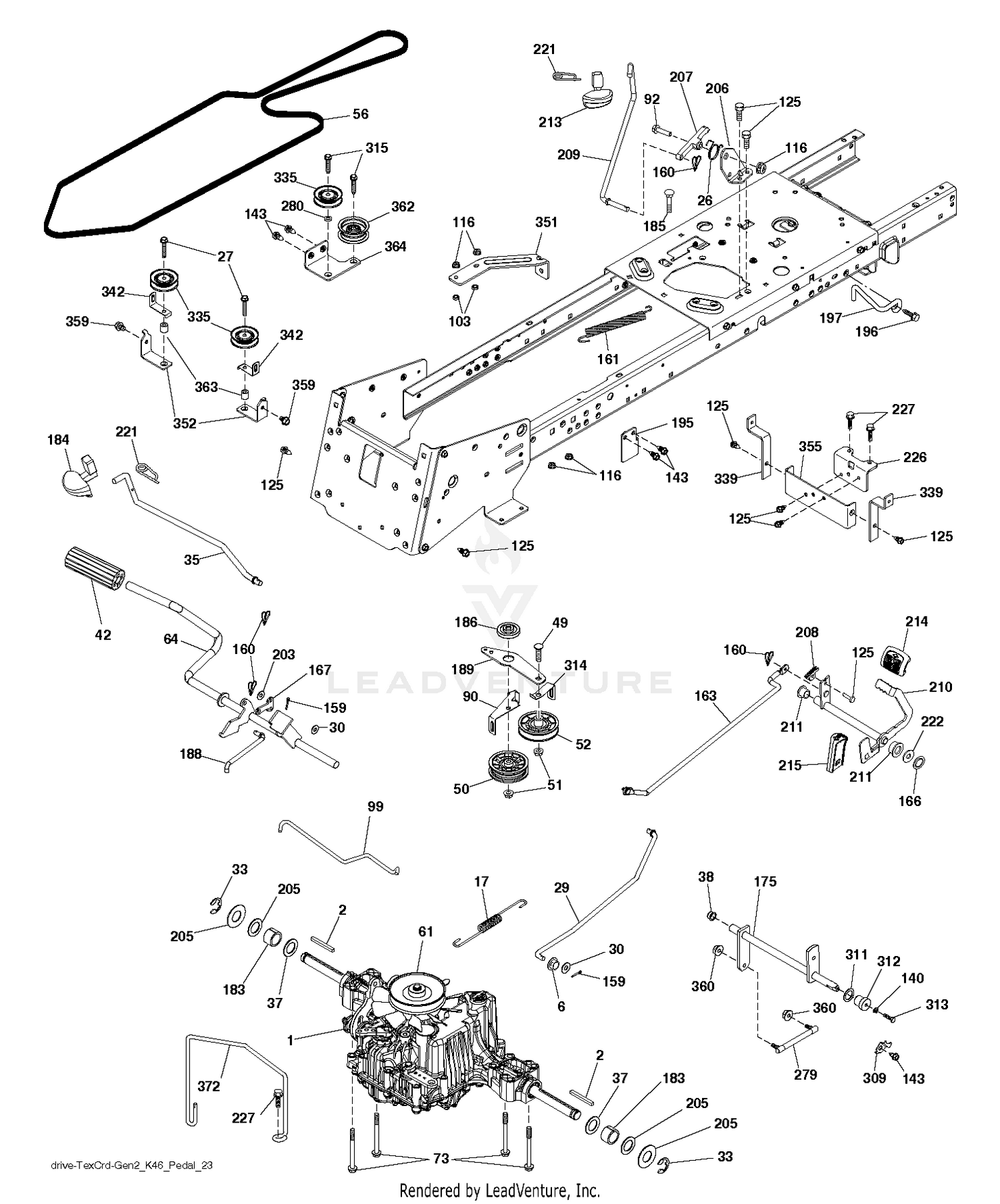

| Ref | Part Number | Description |
|---|
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
76-9700-01 |
COVER-TOWER This part replaces 76-9700. Price: $240.24 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 4 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 5 |
256-237 |
BUSHING Price: $14.99 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 6 |
92-6570 |
DISCONTINUED Price: Call Us |
| 7 |
77-3620 |
KNOB-RETAINER Price: $15.13 |
| 8 |
256-32 |
BUSHING Price: $9.99 |
| 9 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 10 |
68-7573 |
STRIP-SEALING Price: $8.09 |
| 11 |
76-8290 |
SUPPORT - TANK, LOW *B Price: $85.75 |
| 12 |
76-6360 |
DISCONTINUED Price: Call Us |
| 13 |
76-8430 |
FRONT HOOD SUPT *B Price: $33.38 |
| 14 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 15 |
66-2871 |
CABLE-STOP, HOOD Price: $61.31 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 17 |
583508701 |
SPRING.BRAKE.K46.TEX.CRD This part replaces 532436227. Price: $6.99 |
| 18 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
323-34 |
SCREW-HH Price: $0.54 |
| 20 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 21 |
69-3020 |
LATCH-CAMLOC Price: $43.54 |
| 22 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 23 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 24 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 25 |
76-6470 |
SEAL STRIP - FIREWALL Price: $58.40 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 27 |
596241001 |
Screws This part replaces 817490528. Price: $4.99 |
| 27 |
88-1500 |
FOAM-FIREWALL Price: $143.46 |
| 28 |
14-7479 |
HOOD-GM 455D Price: $3,135.45 |
| 29 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 29 |
583566601 |
ROD.BRAKE.K46.TCRD.GEN2 This part replaces 532442795. Price: $22.99 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 31 |
86-2210 |
FOAM-HOOD, TOP RH Price: $169.61 |
| 32 |
86-2220 |
DISCONTINUED Price: Call Us |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
86-2520 |
FOAM-HOOD, REAR RH Price: $46.80 |
| 34 |
92-5823 |
DISCONTINUED Price: Call Us |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 36 |
76-6460 |
DISCONTINUED Price: Call Us |
| 37 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 38 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 39 |
67-0870 |
BOLT-SHOULDER Price: $8.79 |
| 40 |
76-9160 |
L/H HOOD PIVOT WA *B Price: $59.34 |
| 41 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
82-3600 |
LOWER HOOD COVER WA *B Price: $252.13 |
| 43 |
74-4090 |
TREAD-REST, FOOT Price: $46.79 |
| 44 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 45 |
88-1310 |
STRIP-FOAM, COVER Price: $24.15 |
| 46 |
76-9300-01 |
FENDER-LH This part replaces 76-9300. Price: $724.69 |
| 47 |
88-1300-03 |
FRT SEAT COVER This part replaces 88-1300. Price: $45.69 |
| 48 |
76-6380 |
SEAL-COVER, FRONT Price: $5.49 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
76-6361 |
STRIP-SEALING Price: $25.24 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 50 |
86-1650 |
PLATE-AIR DUCT Price: $199.16 |
| 51 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 53 |
62-1230 |
WASHER-RUBBER Price: $5.39 |
| 54 |
86-1690 |
FOAM-IN TAKE Price: $53.44 |
| 55 |
86-2530 |
FOAM-HOOD, REAR LH Price: $46.80 |
| 56 |
583566401 |
RP_BELT.DRIVE.GROUND.114.25 This part replaces 532442781. Price: $84.99 |
| 56 |
86-2200 |
DISCONTINUED Price: Call Us |
| 61 |
583577801 |
PULLEY.INPUT.FLANGED.TRANSAXLE This part replaces 532445151. Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 90 |
583570001 |
KEEPER.BELT.CLUTCHING.TEX.CRD This part replaces 532443605. Price: $4.99 |
| 92 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 99 |
583571801 |
ROD.BYPASS.CRD.TEX.GEN2 This part replaces 532443947. Price: $7.99 |
| 103 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 140 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
594084102 |
Rods This part replaces 532442793. Price: $29.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 175 |
583450901 |
SHAFT.ASM.CROSSHIFT.REARCRD.NT This part replaces 532429359. Price: $14.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
583492701 |
BELLCRANK.GROUND.DRIVE.CRD.TEX This part replaces 532433611. Price: $5.99 |
| 195 |
580456901 |
BRACKET.ROD.BRAKE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
583376501 |
PAD.PEDAL.REVERSE This part replaces 532419482. Price: $8.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 279 |
593898401 |
Links This part replaces 532444283. Price: $8.99 |
| 309 |
532165581 |
PLATE FASTENING LT Price: $3.99 |
| 311 |
532169845 |
WASHER NYL Price: $2.99 |
| 312 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 313 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 314 |
583575801 |
KEEPER.BELT This part replaces 532444713. Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 339 |
583512601 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532436867. Price: $2.99 |
| 342 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 351 |
583515101 |
BRACKET.97.CRD.DECK.SWAY This part replaces 532436998. Price: $7.99 |
| 352 |
583506401 |
BRACKET.IDLER.CRD.TEX This part replaces 532435645. Price: $4.99 |
| 355 |
583506501 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532435669. Price: $5.99 |
| 359 |
596564002 |
Screws This part replaces 817490610. Price: $2.99 |
| 360 |
583575901 |
NUT.HEX.CENTERLOCK.5/16-24 UNF This part replaces 532444714. Price: $2.99 |
| 362 |
583512101 |
IDLER.FLAT.2.25.INCH This part replaces 532436812. Price: $27.99 |
| 363 |
583566301 |
SPACER.343X63X.62 This part replaces 532442780. Price: $3.99 |
| 364 |
583567401 |
BRACKET.IDLER.CRD.TEX This part replaces 532443032. Price: $7.99 |
| 372 |
582654901 |
KEEPER.BELT.CRD2.K46.2.BOLT. This part replaces 587062701. Price: $11.99 |
