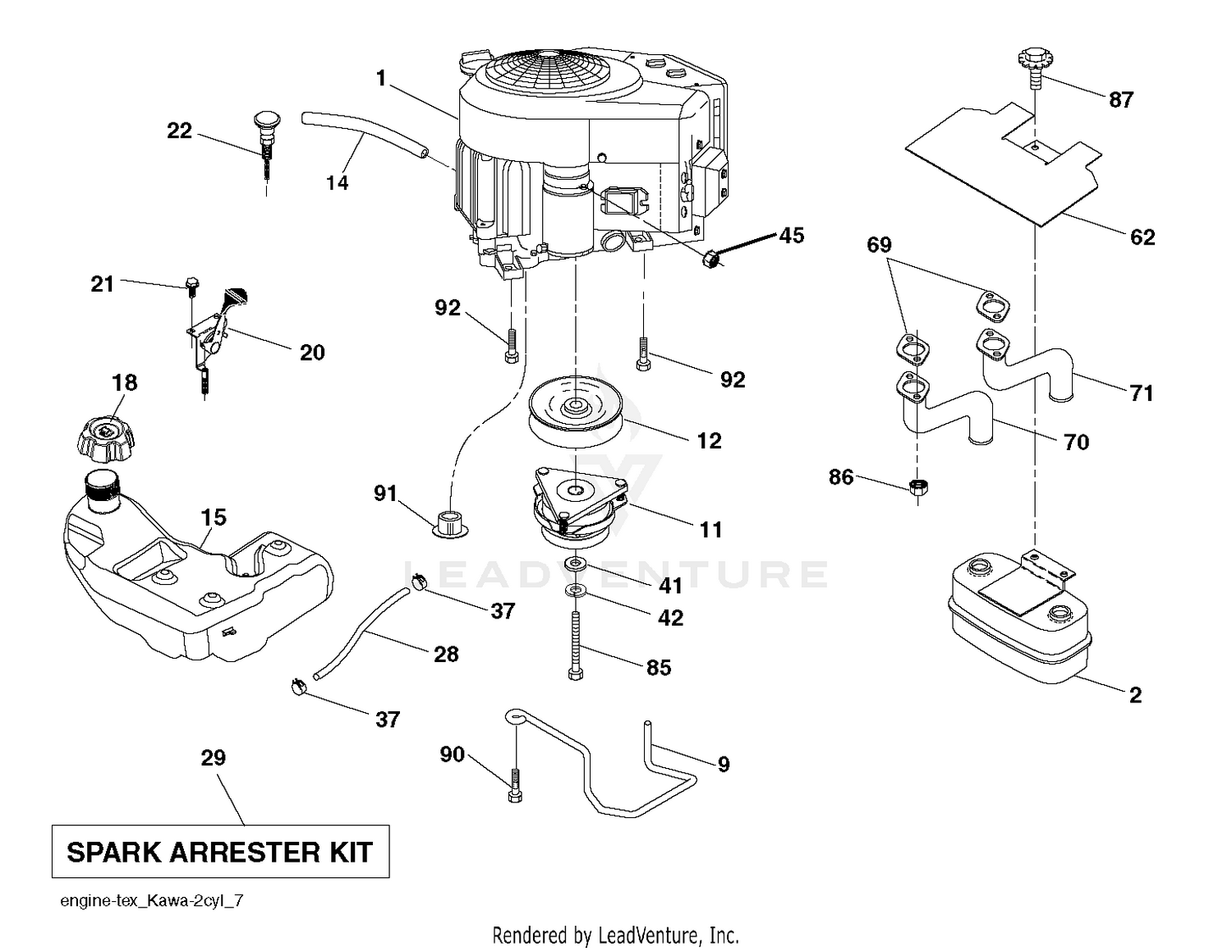

| Ref | Part Number | Description |
|---|
| 1 |
94-3112 |
DISCONTINUED Price: Call Us |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
98-8071 |
CRANKSHAFT PULLEY Price: $186.64 |
| 4 |
93-5699 |
SPACER Price: $34.07 |
| 5 |
93-5710 |
SCREW Price: $4.71 |
| 6 |
93-5687 |
GASKET PLATE Price: $87.06 |
| 7 |
93-5701 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
93-5703 |
KEY Price: $2.95 |
| 10 |
93-5715 |
CONNECTING ROD BOLT Price: $13.22 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
93-5716 |
CIRCLIP Price: $0.50 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
93-5714 |
SET OF 3 PISTONS RINGS Price: $231.69 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
529998404 |
FUEL TANK, 4GAL, 2.25"NECK, 20 This part replaces 532438081. Price: $199.99 |
| 15 |
93-5712 |
SET OF 4 CON RODS Price: $860.43 |
| 16 |
93-5713 |
DISCONTINUED Price: Call Us |
| 16 |
95-2705 |
HALF BEARING-8 X 44.7 Price: $114.97 |
| 17 |
93-5681 |
CRANKSHAFT Price: $2,901.02 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
74-8250 |
PIN Price: $0.97 |
| 19 |
93-5702 |
GASKET Price: $81.23 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
93-5709 |
SCREW Price: $3.40 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
93-5700 |
PLUG Price: $5.89 |
| 23 |
93-5705 |
PIN Price: $2.76 |
| 24 |
93-5708 |
SCREW Price: $4.82 |
| 27 |
93-5707 |
STUD Price: $4.45 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
93-5704 |
SCREW Price: $2.44 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
93-5686 |
GASKET PLATE Price: $87.06 |
| 30 |
100-1383 |
PIN Price: $1.76 |
| 31 |
93-5688 |
HALF BEARING CN-EP 1.844 Price: $23.82 |
| 32 |
93-5691 |
HALF BEARING CN-EP 1.844 Price: $24.18 |
| 33 |
93-5694 |
HALF FLANGE - EP 2.40 Price: $14.51 |
| 34 |
93-5711 |
SCREW Price: $4.82 |
| 35 |
74-8080 |
WASHER Price: $4.77 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
