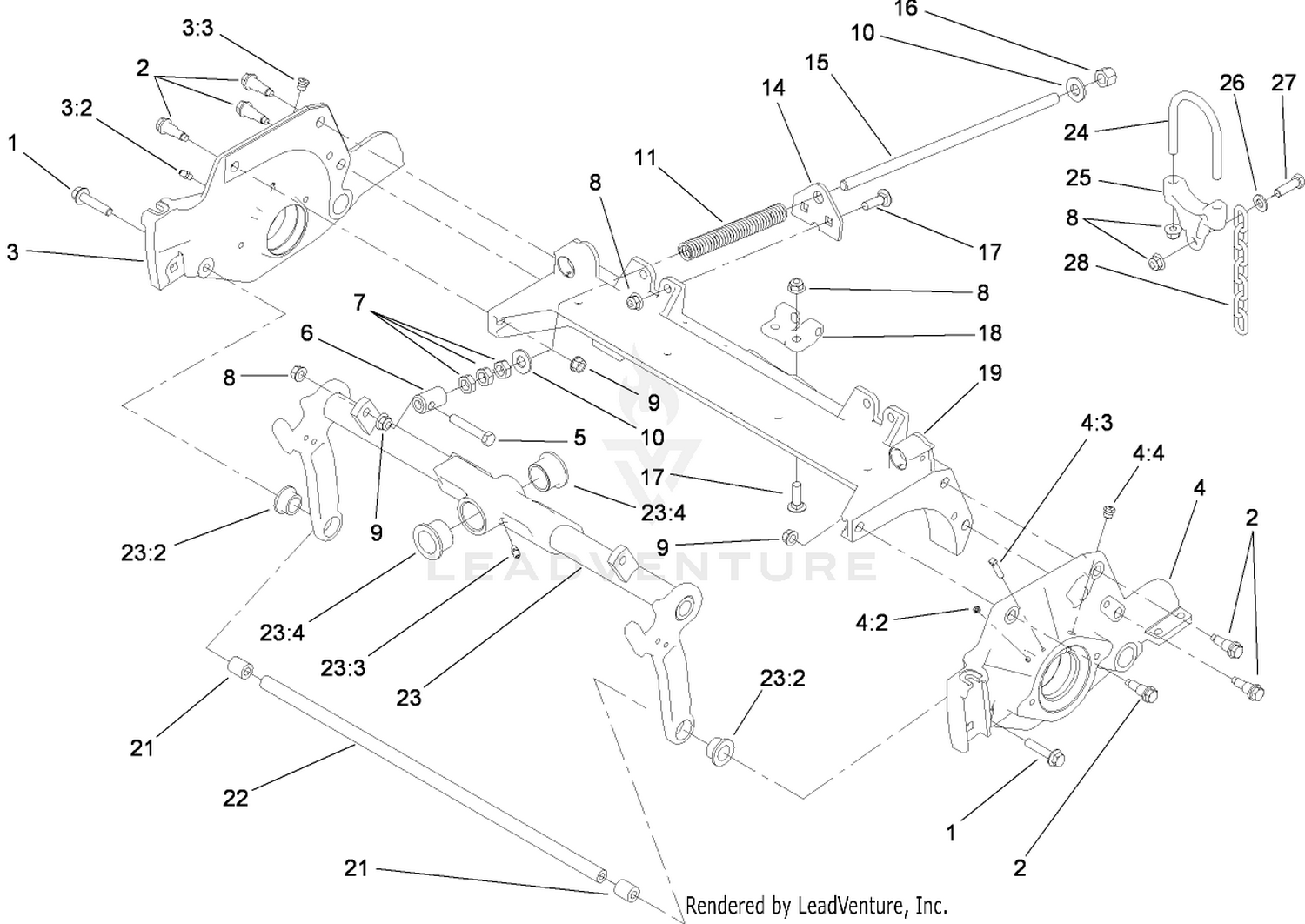

| Ref | Part Number | Description |
|---|
| 1 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 2 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 3 |
110-9631 |
RH SIDE PLATE ASM Price: $330.07 |
| 4 |
110-9630 |
LH SIDE PLATE ASM Price: $330.07 |
| 5 |
104-3396 |
SCREW-HH Price: $0.75 |
| 6 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 7 |
3218-5 |
NUT-JAM Price: $0.27 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 10 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 11 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 14 |
110-4069 |
BRACKET Price: $5.57 |
| 15 |
99-8661 |
ROD-SPRING Price: $36.89 |
| 16 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 21 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 22 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 23 |
110-9713 |
CARRIER FRAME ASM Price: $642.24 |
| 24 |
115-2032 |
U-BOLT This part replaces 92-2752. Price: $55.97 |
| 25 |
112-6564 |
BRACKET-CHAIN Price: $47.71 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
323-7 |
SCREW-HH Price: $0.65 |
