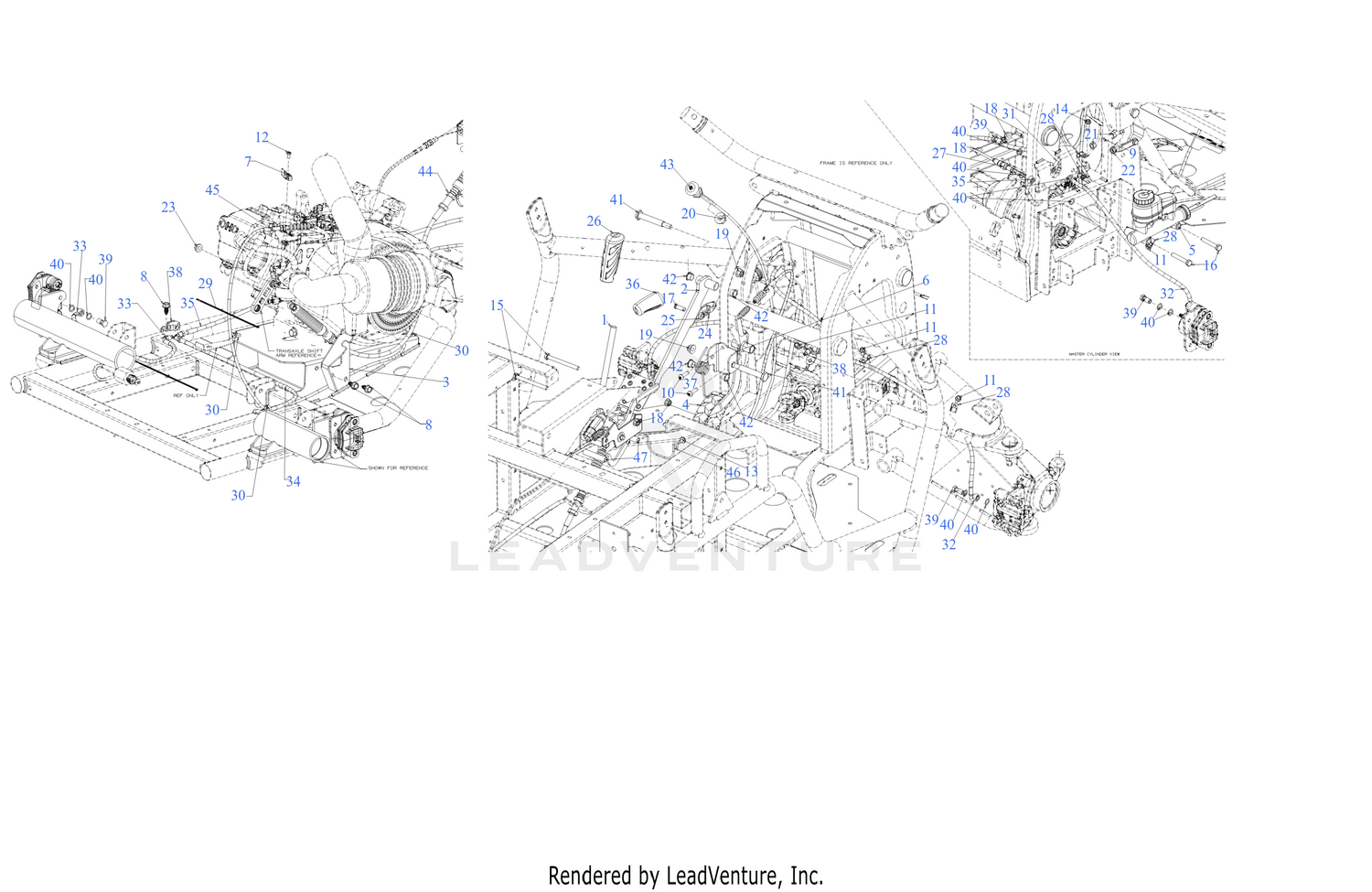

| Ref | Part Number | Description |
|---|
| 3 |
607E05268 |
SHIFT BRACKET WELD ASSEMBLY Price: $49.77 |
| 5 |
661-04042 |
MASTER CYLINDER ASSEMBLY Price: $161.25 |
| 7 |
707-06923 |
THROTTLE BRACKET Price: $16.35 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-04532 |
CARRIAGE BOLT 5/16-18 x 2.00 GR5 Price: $5.50 |
| 10 |
710-05074 |
SCREW 1/4-20 x 1.0 Price: $2.90 |
| 11 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 12 |
710-06085 |
SCREW M5-.8X10MM SLOT/TORX Not Available Price: |
| 13 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 14 |
710-0642 |
SCREW 1/4-20 x .750 Price: $4.05 |
| 15 |
710-3056 |
SCREW 5/16-18 x 3.25 GR5 Price: $8.82 |
| 16 |
710-3103 |
SCREW 5/16-18 x 2.0 GR5 Price: $4.02 |
| 17 |
711-0653 |
CLEVIS PIN .312 x 1.0 Price: $3.37 |
| 18 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 19 |
712-04065 |
NUT Price: $3.68 |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 22 |
712-3025 |
HEX JAM NUT 5/16-24 GR 5 Price: $6.24 |
| 23 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 24 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 25 |
719-3018 |
ADJUSTABLE ROD END Price: $37.92 |
| 26 |
720-05107 |
GRIP Price: $12.46 |
| 27 |
725-04507 |
BRAKE SWITCH Price: $120.35 |
| 28 |
726-0273 |
MOUNTING CLAMP Price: $6.24 |
| 29 |
726-0317 |
TIE CABLE 8.5 LG Price: $4.26 |
| 30 |
726-0470 |
CABLE TIE Price: $4.20 |
| 31 |
727-05159 |
BRAKE HOSE (FRONT MASTER CYLINDER) Price: $54.05 |
| 32 |
727-05160 |
BRAKE HOSE (FRONT) Price: $61.50 |
| 33 |
727-05161 |
BRAKE HOSE (LEFT HAND REAR) Price: $61.50 |
| 34 |
727-05162 |
BRAKE HOSE (RIGHT HAND REAR) Price: $61.50 |
| 35 |
727-05164 |
BRAKE HOSE (REAR MASTER CYLINDER) Price: $87.85 |
| 36 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 37 |
732-05582 |
TORSION SPRING Price: $7.10 |
| 38 |
737-04128 |
TEE FITTING Price: $50.38 |
| 39 |
737-04129 |
BANJO FITTING Price: $25.22 |
| 40 |
737-04130 |
BANJO FITTING Price: $7.46 |
| 41 |
938-3056 |
SHOULDER BOLT .50 x 2.5 x 3/8 -16 Price: $8.53 |
| 42 |
741-0491 |
NYLINER BEARING Price: $4.39 |
| 43 |
946-05372 |
CHOKE CABLE 93" Price: $56.39 |
| 44 |
946-05406 |
SHIFT CABLE 44" Price: $100.15 |
| 45 |
946-05442 |
THROTTLE CONTROL CABLE 108" Price: $82.60 |
| 46 |
747-06999 |
CABLE GUIDE ROD Price: $7.10 |
| 47 |
750-06574 |
SPACER Price: $4.43 |
