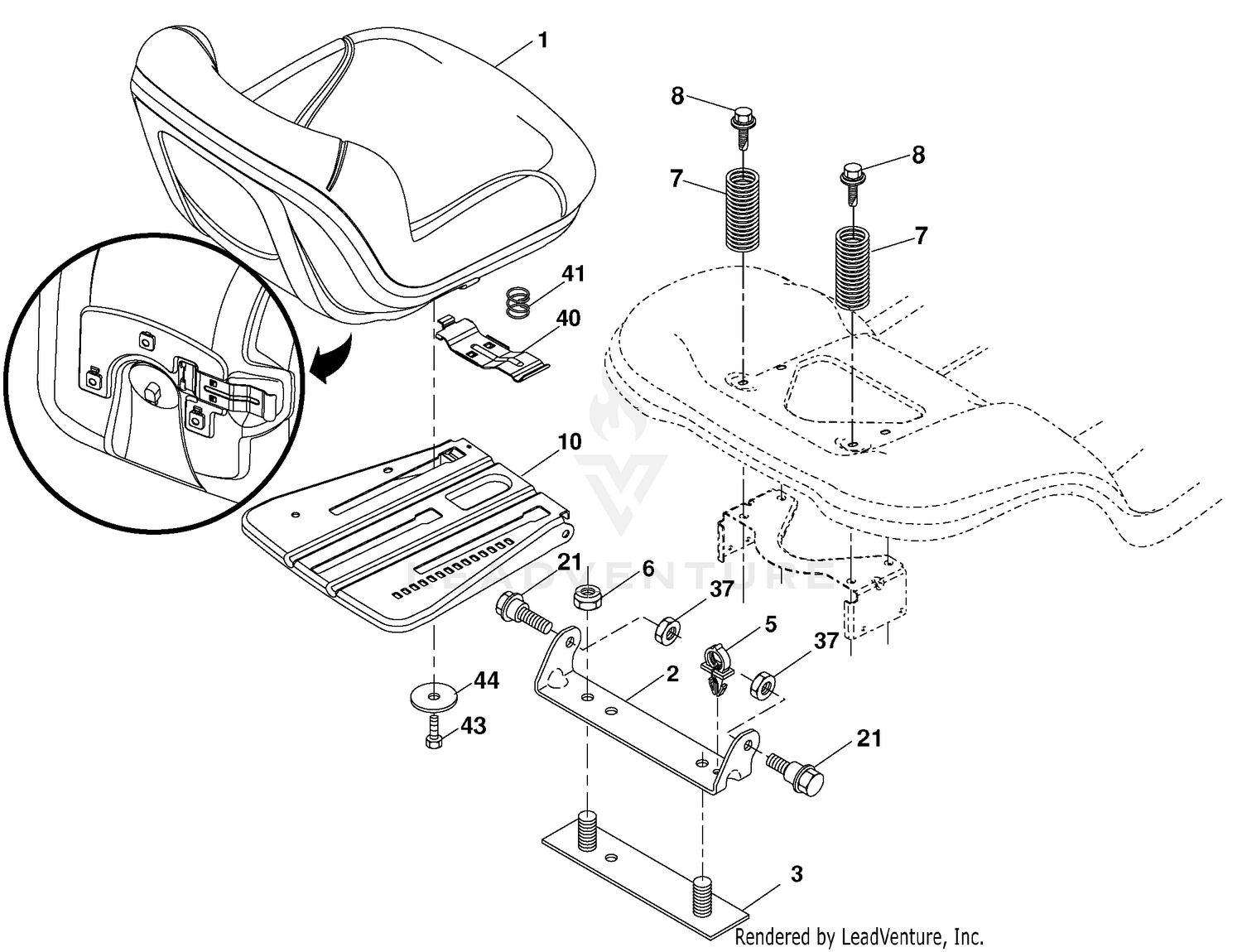

| Ref | Part Number | Description |
|---|
| 1 |
197530 |
Seat Price: Call Us |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 5 |
145006 |
Clip, Push In, Hinged Price: Call Us |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 6 |
STD541437 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 37 |
STD541431 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 40 |
197661 |
Handle Slide Seat Price: Call Us |
| 41 |
198200 |
Spring Latch Seat Price: Call Us |
| 43 |
74760612 |
Bolt Fin Hex 3/8-16 unc x 3/4 Price: Call Us |
