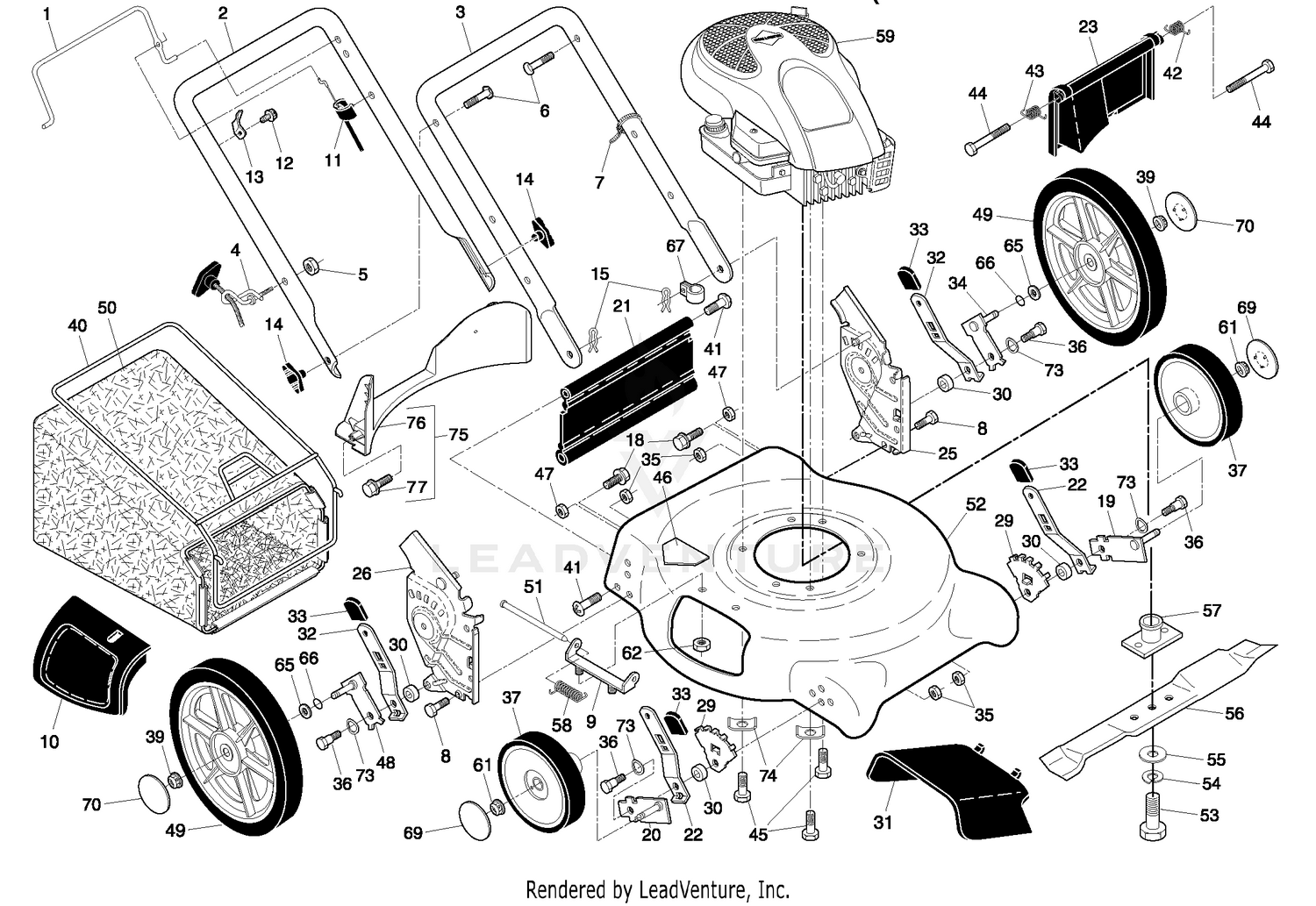

| Ref | Part Number | Description |
|---|
| 1 |
194177X428 |
Control Bar Price: Call Us |
| 1 |
256-247 |
BUSHING-FLANGE Price: $2.17 |
| 2 |
194179X479 |
Upper Handle Price: Call Us |
| 2 |
69-7890-03 |
RH BRAKE ARM ASM Price: $127.42 |
| 3 |
169708X479 |
Lower Handle Price: Call Us |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
194788 |
Rope Guide Price: Call Us |
| 4 |
69-9210-03 |
LEVER-LATCH, BRAKE Price: $15.85 |
| 5 |
132004 |
Locknut, Hex 1/4-20 Price: Call Us |
| 5 |
321-4 |
SCREW-HH Price: $0.99 |
| 6 |
191574 |
Handle Bolt Price: Call Us |
| 6 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 7 |
664-26 |
Wire Tie Price: Call Us |
| 7 |
69-7720-03 |
BRAKE PAWL ASM Price: $53.60 |
| 8 |
69-9200 |
PIN Price: $22.07 |
| 8 |
74780512 |
Hex Bolt 5/16-18 x 3/4 Price: Call Us |
| 9 |
154132 |
Mounting Bracket, Mulcher Door Price: Call Us |
| 9 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
165754 |
Mulcher Door Price: Call Us |
| 10 |
321-2 |
SCREW-HH Price: $2.79 |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 11 |
69-7790-03 |
PIN ASM Price: $31.86 |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 12 |
750634 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 13 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 13 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
189713X428 |
Handle Knob Price: Call Us |
| 14 |
3296-9 |
NUT-HEX Price: $0.25 |
| 15 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 15 |
51793 |
Hairpin Cotter Price: Call Us |
| 16 |
106-0485-03 |
MOUNT-PEDAL, BRAKE This part replaces 69-7840-03. Price: $126.17 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
17600406 |
Screw Price: Call Us |
| 18 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 19 |
401174X004 |
Axle Arm Assembly, Front, LH Price: Call Us |
| 19 |
49-6171 |
PAD-BRAKE, LH Price: $26.16 |
| 20 |
401175X004 |
Axle Arm Assembly, Front, RH Price: Call Us |
| 20 |
69-7700-03 |
PEDAL ASM Price: $51.40 |
| 21 |
189008 |
Rear Skirt Price: Call Us |
| 21 |
323-4 |
SCREW-HH Price: $1.02 |
| 22 |
401621X004 |
Selector Spring, Front Price: Call Us |
| 22 |
69-5670 |
CABLE-BRAKE Price: $133.04 |
| 23 |
401814X428 |
Rear Door Assembly Price: Call Us |
| 23 |
69-7880-03 |
LH BRAKE ARM ASM Price: $127.42 |
| 24 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 24 |
73930500 |
Locknut, Hex 5/16-18 Price: Call Us |
| 25 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 25 |
410385X479 |
Handle Bracket, LH Price: Call Us |
| 26 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 26 |
410386X479 |
Handle Bracket, RH Price: Call Us |
| 28 |
407494X005 |
Wheel Adjusting Bracket Price: Call Us |
| 30 |
401629 |
Spacer Price: Call Us |
| 31 |
165760 |
Deflector, Discharge Price: Call Us |
| 32 |
401624X004 |
Selector Spring, Rear Price: Call Us |
| 33 |
701037X421 |
Selector Knob Price: Call Us |
| 34 |
401176X004 |
Axle Arm Assembly, Rear, LH Price: Call Us |
| 35 |
166785 |
Locknut, Hex 5/16-18 Price: Call Us |
| 36 |
401638 |
Shoulder Bolt 5/16-18 Price: Call Us |
| 37 |
150339 |
Wheel & Tire Assembly, Front, 8" Price: Call Us |
| 38 |
401638 |
Shoulder Bolt Price: Call Us |
| 39 |
409149 |
Flanged Locknut Price: Call Us |
| 40 |
401808 |
Frame, Grassbag Price: Call Us |
| 41 |
88652 |
Hinge Screw Price: Call Us |
| 42 |
405421 |
Spring, Rear Door, LH Price: Call Us |
| 43 |
405423 |
Spring, Rear Door, RH Price: Call Us |
| 44 |
184193 |
Bolt, Rear Door Price: Call Us |
| 45 |
150406 |
Screw, Hex Head Thread Rolling Screw 3/8-16 x 1 Price: Call Us |
| 46 |
404763 |
Danger Decal Price: Call Us |
| 47 |
751153 |
Nut, Hex Price: Call Us |
| 48 |
401177X004 |
Axle Arm Assembly, Rear, RH Price: Call Us |
| 49 |
408852X421 |
Wheel & Tire Assembly, Rear, 12" Price: Call Us |
| 50 |
411060 |
Grassbag Price: Call Us |
| 51 |
147286 |
Rod, Hinge Price: Call Us |
| 53 |
851084 |
Hex Head Screw, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 54 |
850263 |
Helical Lockwasher Price: Call Us |
| 55 |
851074 |
Hardened Washer Price: Call Us |
| 57 |
193707 |
Blade Adapter Price: Call Us |
| 58 |
152124 |
Spring, Hinge Rod Price: Call Us |
| 61 |
409148 |
Flanged Locknut Price: Call Us |
| 62 |
73800400 |
Nut, Hex Price: Call Us |
| 65 |
88348 |
Washer, Flat 3/8 Price: Call Us |
| 66 |
197480 |
O-Ring Price: Call Us |
| 67 |
197991 |
Clip, Cable Price: Call Us |
| 69 |
407793X421 |
Hubcap, Front Wheel Price: Call Us |
| 70 |
407794X421 |
Hubcap, Rear Wheel Price: Call Us |
| 73 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 74 |
851201X004 |
Washer, Special, Engine Price: Call Us |
| 75 |
413693 |
Kit, Rear Baffle Price: Call Us |
| 76 |
410589 |
Baffle, Rear Price: Call Us |
| 77 |
17411312 |
Screw, Rear Baffle Price: Call Us |
| 77 |
193732 |
Operator's Manual, English Price: Call Us |
| 77 |
193734 |
Operator's Manual, French Price: Call Us |
