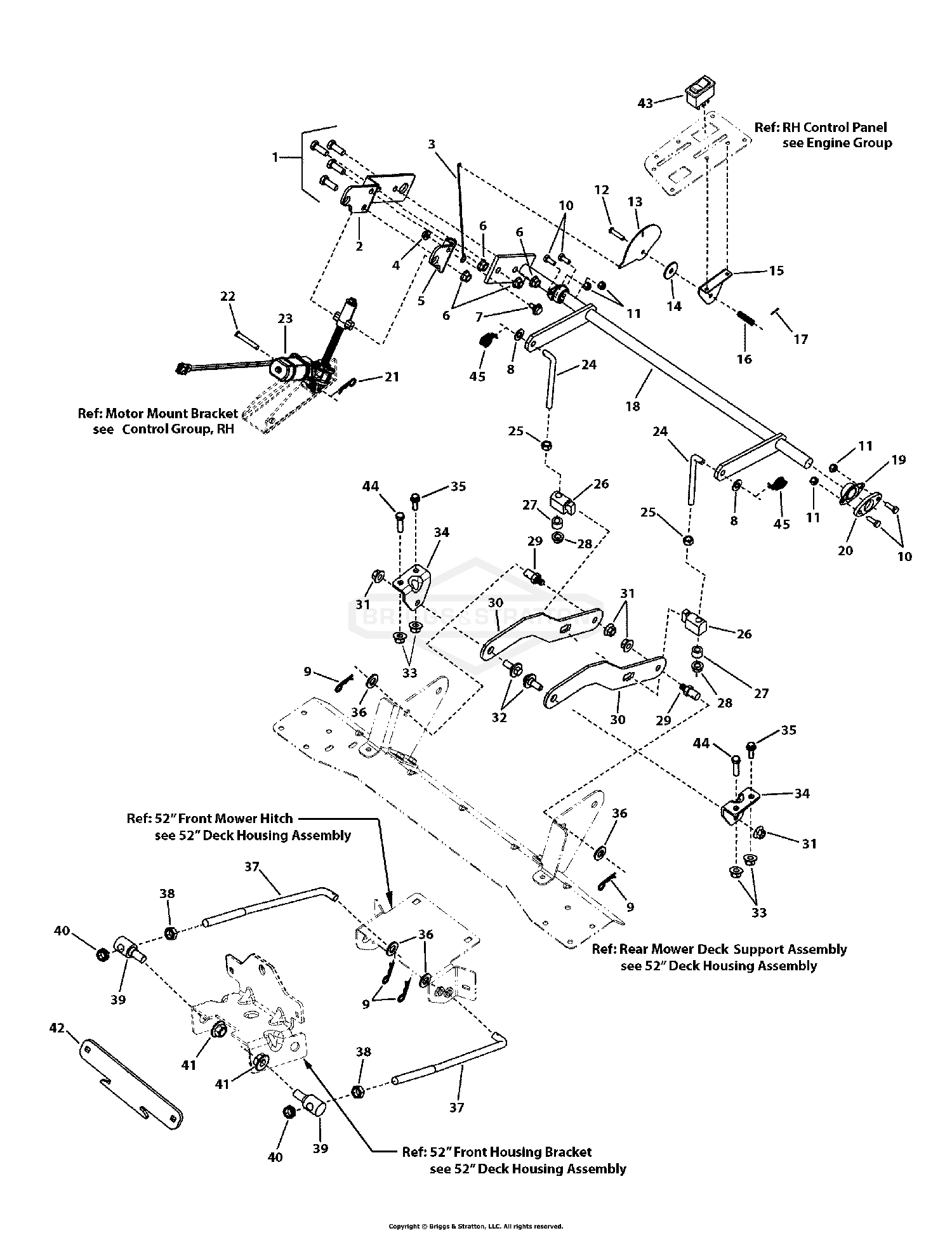

| Ref | Part Number | Description |
|---|
| 1 |
7091304 |
SCREW, 3/8-16 x 1" Hex Head Cap, GR 5, YZ Price: Call Us |
| 2 |
7301104BMYP |
BRACKET, Lift, Deck, Primary This part replaces 7301104BM. Price: $12.85 |
| 3 |
7103956YP |
ROD, Indicator, Height-Of-Cut This part replaces 7103956. Price: $8.66 |
| 4 |
703233 |
NUT, 1/4-20, GR5 This part replaces 7091584. Price: $3.94 |
| 5 |
7301105BMYP |
BRACKET, Lift, Deck, Secondary This part replaces 7301105BM. Price: $13.90 |
| 6 |
703333 |
NUT, 3/8-16 This part replaces 7091619. Price: $4.26 |
| 7 |
009X54MA |
SHOULDER BOLT, 1/4-20 x 3/8 This part replaces 720100. Price: $4.70 |
| 8 |
7090122 |
WASHER, 3/8" Flat (SAE) Price: $1.90 |
| 9 |
703300 |
PIN, 3/32 X 1.6 This part replaces 7091503. Price: $3.50 |
| 10 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 7091495. Price: $3.29 |
| 11 |
703251 |
NUT, 1/4-20 This part replaces 7092126. Price: $4.41 |
| 12 |
578309MA |
LF PIN, CLEVIS .25DX This part replaces 724579. Price: $5.09 |
| 13 |
7301119BCYP |
LEVER, Indicator, Height-Of-Cut This part replaces 7301119BC. Price: $6.99 |
| 14 |
7023649YP |
WASHER, 5/16 Nylon This part replaces 7023649. Price: $3.73 |
| 15 |
7301120BMYP |
BRACKET, Indicator, Height-Of-Cut This part replaces 7301120BM. Price: $8.69 |
| 16 |
164X34MA |
SPRING, Compression This part replaces 722412. Price: $5.13 |
| 17 |
579493MA |
PIN, COTTER .06X .50 This part replaces 7090673. Price: $3.73 |
| 18 |
7400011BM |
WELDMENT, Deck Lift, 38/42 Price: Call Us |
| 19 |
7026196SM |
BEARING, Flange, 3/4 This part replaces 7026196. Price: $6.46 |
| 20 |
7301125BMYP |
SPACER, Bearing, 1/4 This part replaces 7301125BM. Price: $11.79 |
| 21 |
703430 |
PIN, 13X1.19 This part replaces 1722460. Price: $2.87 |
| 22 |
1668344 |
SHEAR PIN, .248 ID x 1-3/4" Long Price: Call Us |
| 23 |
7103818YP |
MOTOR, Actuator, Lift, Deck This part replaces 7103818. Price: $137.79 |
| 24 |
1734217SM |
ROD, Mower Lift (3/8-16 thread) This part replaces 1734217. Price: $13.14 |
| 25 |
703577 |
NUT, HEX, 3/8-16 This part replaces 1916950. Price: $3.72 |
| 26 |
1731894SM |
TRUNNION This part replaces 1731894. Price: $8.76 |
| 27 |
1666294SM |
SPACER This part replaces 1666294. Price: $4.64 |
| 28 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK This part replaces 1960687. Price: $3.82 |
| 29 |
704054 |
PIN, 3/8-16 This part replaces 721221. Price: $6.36 |
| 30 |
7301098BMYP |
BAR, Rear Lift This part replaces 7301098BM. Price: $26.64 |
| 31 |
703893 |
NUT, CNTR LCK, 3/8-16 This part replaces 720148. Price: $5.91 |
| 32 |
1732129SM |
SHOULDER BOLT, 3/8-16 x .94 This part replaces 1732129. Price: $5.19 |
| 33 |
703409 |
NUT, 5/16-18, GR5 This part replaces 7091601. Price: $4.92 |
| 34 |
7300028BMYP |
BRACKET, Deck Hanger This part replaces 7300028BM. Price: $13.15 |
| 35 |
703823 |
BOLT, 5/16-18X0.625 This part replaces 7091811. Price: $3.39 |
| 36 |
703853 |
WASHER, 0.516IDX1OD This part replaces 1960170. Price: $4.49 |
| 37 |
1736081YP |
ROD, Front Bail This part replaces 1736081. Price: $12.01 |
| 38 |
1913744SM |
NUT, Hex Jam, 1/2-13 This part replaces 1913744. Price: $4.26 |
| 39 |
1737417YP |
TRUNNION, Unthreaded This part replaces 1737417. Price: $18.96 |
| 40 |
1960379SM |
NUT, Hex Lock, 1/2-13 This part replaces 1960379. Price: $4.38 |
| 41 |
1930644SM |
NUT-HEX FLANGE 1/2-1 This part replaces 1930644. Price: $3.06 |
| 42 |
7301097BMYP |
SUPPORT, Hanger This part replaces 7301097BM. Price: $9.29 |
| 43 |
1734141SM |
SWITCH, Rocker Electric Height-Of-Cut This part replaces 1734141. Price: $44.22 |
| 44 |
7027168 |
SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ Price: Call Us |
