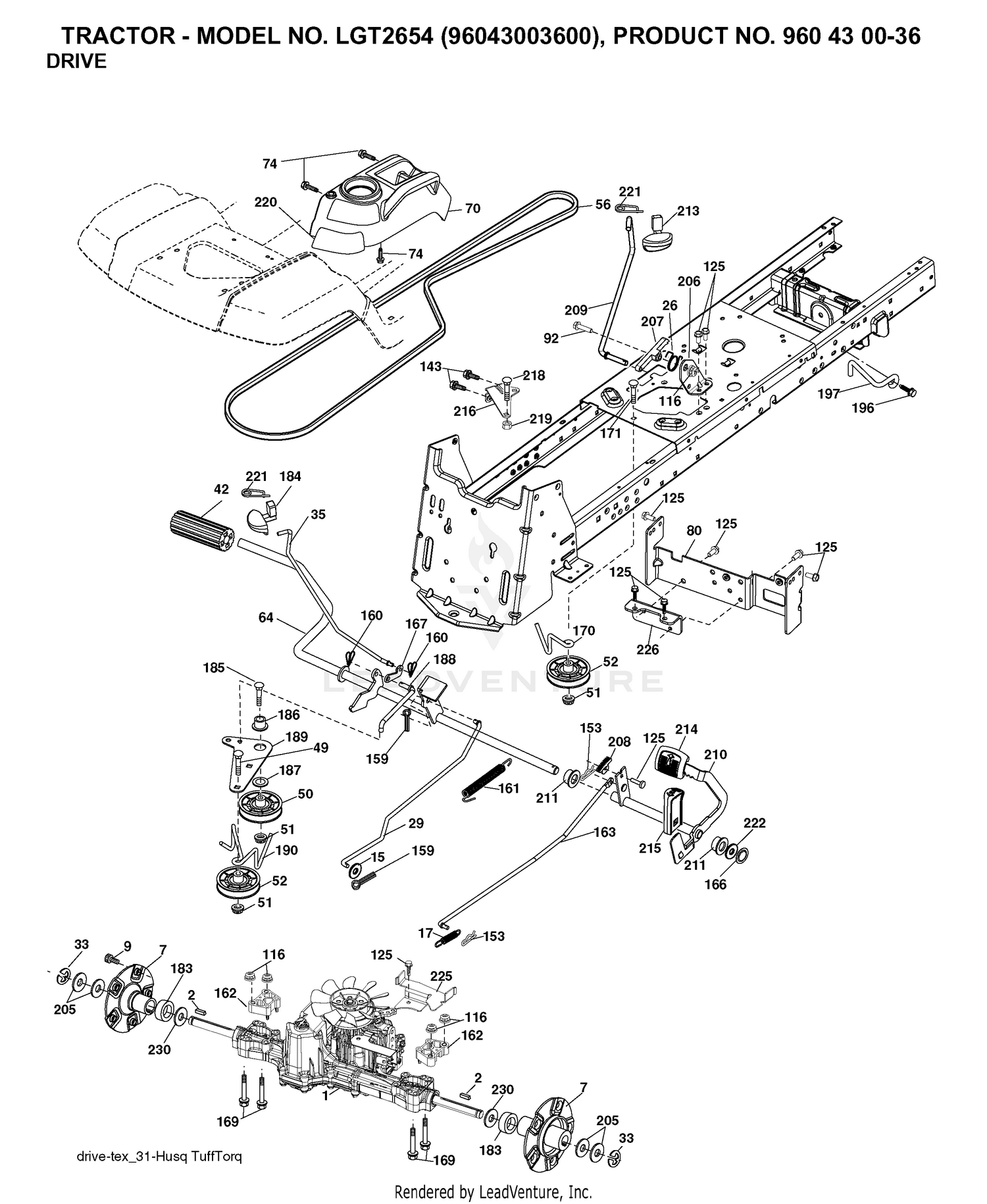

| Ref | Part Number | Description |
|---|
| 1 |
117-0723 |
PLATE-MOUNT, TUBE CLAMP Price: $13.30 |
| 1 |
532426119 |
TRANSAXLE(K46BN) This part replaces 532404047. Price: $749.99 |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $3.99 |
| 2 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 3 |
353-987 |
FITTING-ELBOW, 90 Price: $74.72 |
| 4 |
117-0693 |
HYDRAULIC TUBE Price: $61.58 |
| 5 |
340-157 |
FITTING-HYD, TEE Price: $49.83 |
| 6 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 7 |
340-70 |
NUT-LOCK Price: $2.10 |
| 7 |
531170101 |
SERVICE.KIT HUB ASM HUB.ASM.WH This part replaces 532199844. Price: $49.99 |
| 8 |
117-0708 |
PUMP CONTROL VALVE ASM Price: $1,425.48 |
| 9 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 11 |
354-79 |
CAP-DUST Price: $7.81 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
322-14 |
SCREW-HH Price: $1.01 |
| 14 |
340-129 |
FITTING-ELBOW, 90 DEG Price: $99.81 |
| 15 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
125-5854 |
TUBE ASM Price: $113.43 |
| 17 |
100-5616 |
FITTING Price: $50.63 |
| 17 |
532401072 |
SPRING.BRAKE.K46 Price: $6.99 |
| 18 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 19 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 22 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 23 |
117-0689 |
PLATE-MOUNT, TUBE CLAMPS Price: $17.96 |
| 24 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 25 |
2412-102 |
CLAMP-R Price: $6.85 |
| 26 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 28 |
117-0680 |
HOSE ASM Price: $200.68 |
| 29 |
117-0682 |
HOSE ASM Price: $205.74 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
119-0583 |
HOSE ASM Price: $155.32 |
| 31 |
119-5045 |
HOSE-SUCTION Price: $86.98 |
| 32 |
117-0687 |
HOSE ASM Price: $181.17 |
| 33 |
125-5853 |
HYD-HOSE Price: $273.06 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
94-3688 |
SLEEVE-PROTECTIVE Price: $23.04 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 96 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 169 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 218 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 219 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
734118571 |
WASHER This part replaces 819212010. Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
529846701 |
SERVICE KIT BRKT.MOUNT.TORQUE. This part replaces 532400831. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
