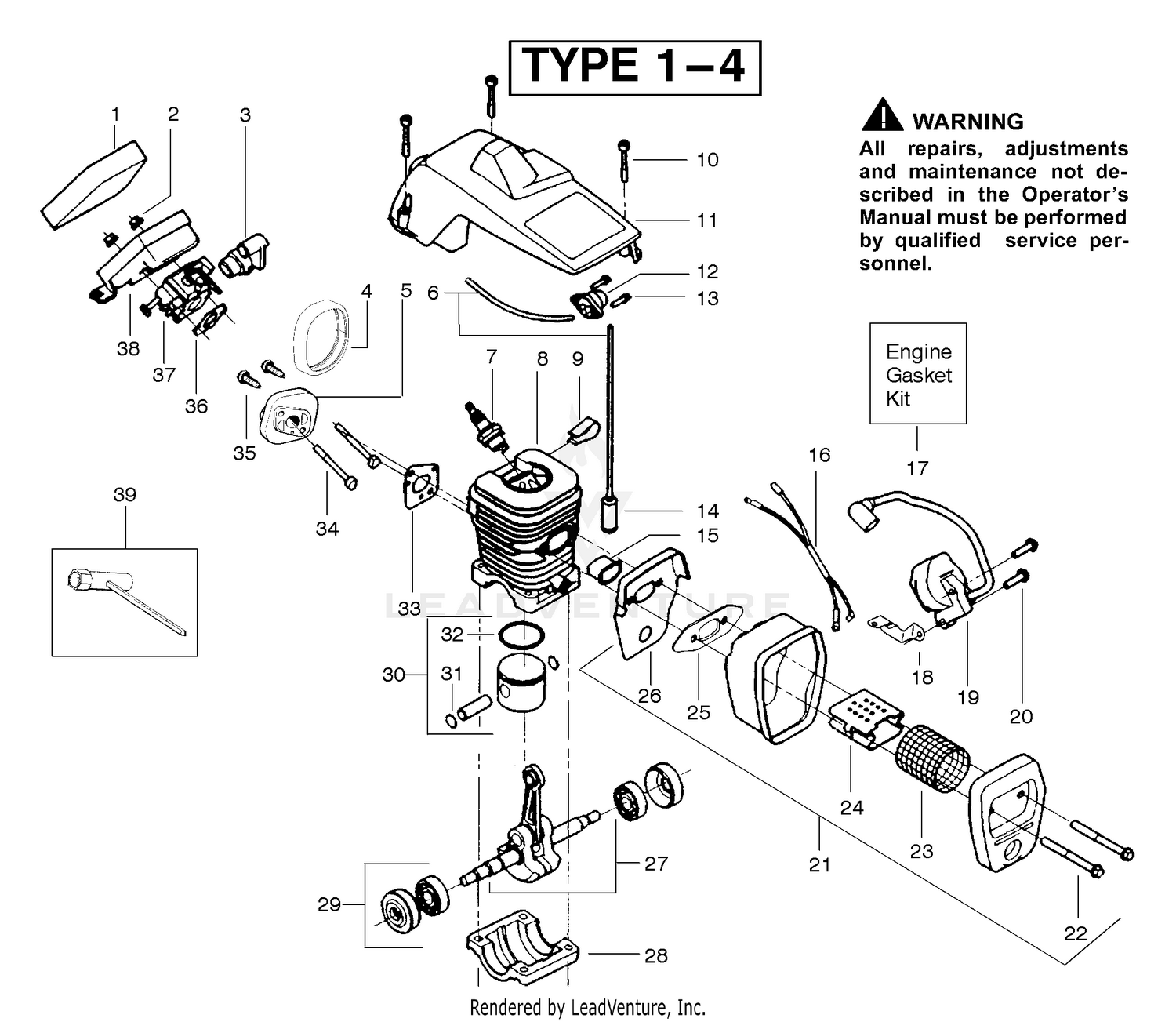

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
530037793 |
Foam Air Filter Price: $1.99 |
| 2 |
530016101 |
Nut Price: $1.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
530035526 |
Grommet Carb Adjust Price: Call Us |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530054144 |
Seal Carb Adapter Price: $2.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
530049700 |
Adapter Carb. Price: $3.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530069247 |
Kit Fuel Line (Small) Price: $3.99 |
| 7 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
530012550 |
Cylinder This part replaces 530069607. Price: $17.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530016136 |
Clip High Tension Lead Price: $1.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
530016153 |
Screw Price: $1.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530071310 |
Shield Cylinder Price: $9.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530015780 |
Screw Price: $1.99 |
| 14 |
530095646 |
Assy Fuel Pickup Price: $2.99 |
| 15 |
530037652 |
Insulator Heat Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
530052296 |
Assy.Wire Harness Price: $4.99 |
| 18 |
530047442 |
Strap Ground Price: $1.99 |
| 19 |
530071905 |
KIT This part replaces 530039167. Price: $37.99 |
| 20 |
530015814 |
Screw Price: $1.99 |
| 22 |
530016132 |
Screw Price: $1.99 |
| 23 |
530036103 |
Screen Spark Price: Call Us |
| 24 |
530037813 |
Diffuser Muffler Price: $1.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
530069608 |
Gasket Muffler (kit) Price: $5.99 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
131-4715 |
WASHER Price: $0.95 |
| 26 |
530049870 |
Backplate Muffler Price: $3.99 |
| 27 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 27 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 28 |
530037935 |
Cap Crankcase Price: $8.99 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 29 |
530056363 |
Assy. Seal & Bearing Price: $11.99 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 31 |
530015697 |
Retainer Piston Pin Price: $1.99 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
530069608 |
Gasket Adapter (kit) Price: $5.99 |
| 34 |
137-8427 |
ES REEL+,5IN FWY(22)11 BLD LD(FSR) This part replaces 132-7112. Price: $770.20 |
| 34 |
530016187 |
Screw Price: $1.99 |
| 35 |
530016386 |
Screw Price: $5.99 |
| 36 |
530069608 |
Gasket Carb. (kit) Price: $5.99 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 37 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530069703. Price: $22.99 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 38 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 39 |
530031163 |
Wrench Bar Price: $4.99 |
