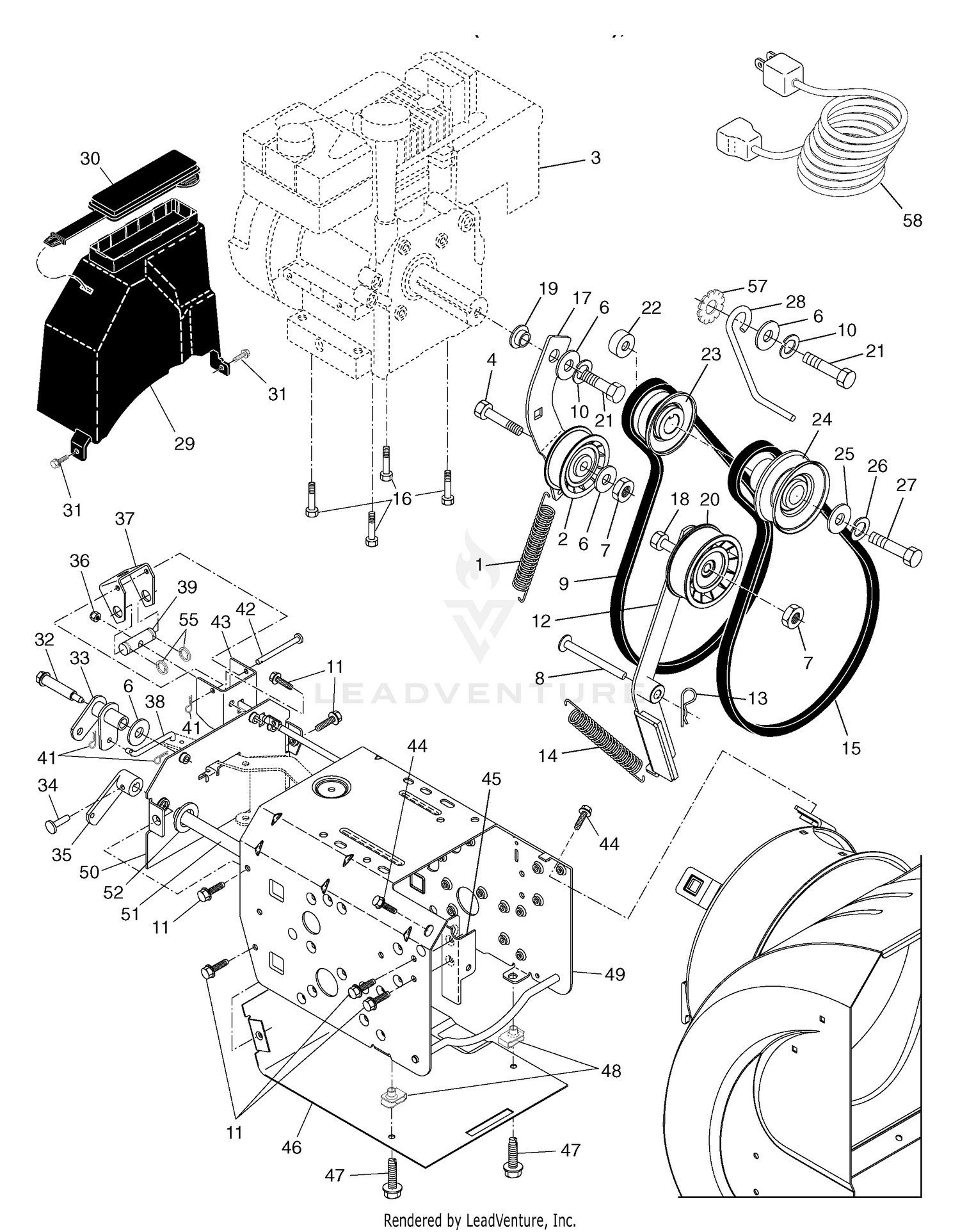

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
532198552 |
WASHER, LOCK 5/16 Price: $6.99 |
| 11 |
532198584 |
SCREW, HEX HEAD 5/16-18 X 1/2 Price: $3.99 |
| 11 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 12 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532179259. Price: $79.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
532408010 |
BELT.V.IMPELLER.DRIVE Price: $34.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
532198559 |
BUSHING, IDLER PIVOT Price: $2.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
532179371 |
SPACER, ENGINE PULLEY Price: $7.99 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 24 |
532426491 |
PULLEY.IMPELER. This part replaces 532179157. Price: $14.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 26 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 31 |
532405024 |
SCREW, HEX HEAD 1/4-20 X 1/2 This part replaces 532400524. Price: $3.99 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 34 |
75-0720 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 36 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 39 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532404431 |
FRAME.WELDMENT.SNOW.ORANGE This part replaces 532407642. Price: $64.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 55 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
