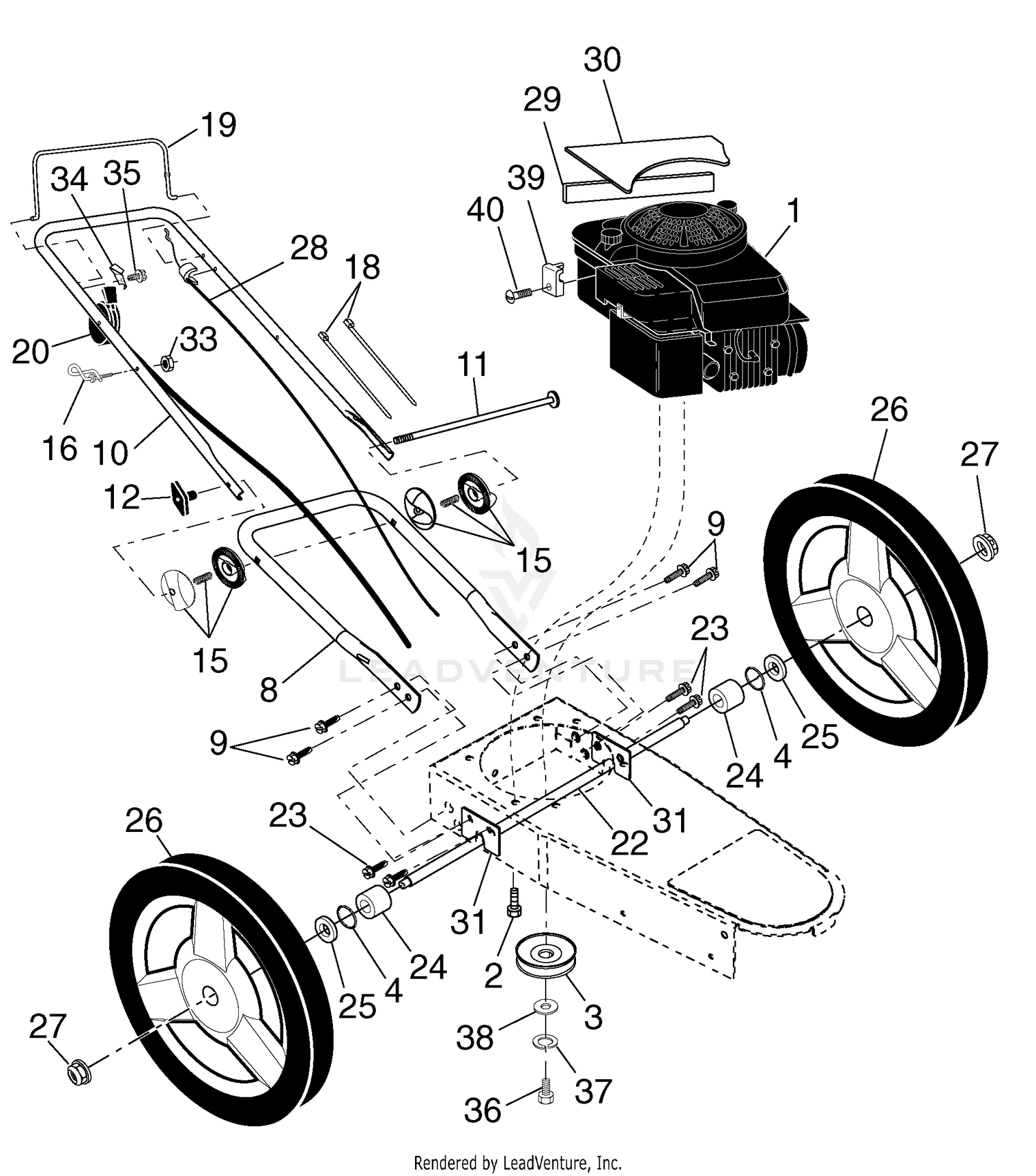

| Ref | Part Number | Description |
|---|
| 2 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 3 |
532184130 |
KIT.PULLEY.WEED.TRIMMER This part replaces 532179466. Price: $60.99 |
| 3 |
76-0090 |
HEAD Price: $161.21 |
| 4 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 4 |
76-2320 |
DISCONTINUED Price: Call Us |
| 5 |
76-2330 |
NUT - LOCK TOP DEFORM Price: $5.94 |
| 8 |
532186754 |
HANDLE.LOWER.STRG.TIMMER.BLACK Price: $14.99 |
| 8 |
76-0040 |
PISTON Price: $104.65 |
| 9 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 10 |
532186755 |
HANDLE.UPPER.STRG.TIMMER.BLACK Price: $24.99 |
| 11 |
532170980 |
BOLT.HANDLE.WHEELED.TRIMMER Price: $3.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 12 |
76-0050 |
RING-RETAINING Price: $40.71 |
| 15 |
532179751 |
ADJSTR.ASSEM.HANDLE.WHLD.TRIMM Price: $17.99 |
| 16 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 18 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 19 |
532176983 |
BAIL.SPINDLE.ENGAGE.BLACK Price: $8.99 |
| 20 |
586861201 |
CONTROL.THROTTLE.TRIMMER This part replaces 532417238. Price: $19.99 |
| 22 |
592930001 |
AXLE This part replaces 532169787. Price: $17.99 |
| 23 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 24 |
532169823 |
SPACER.AXLE.STRING.TRIMMER Price: $6.99 |
| 25 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 26 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB This part replaces 532410815. Price: $22.99 |
| 27 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 28 |
532181699 |
CONTROL.DRIVE.TRIMMER.WHEELED Price: $27.99 |
| 29 |
532406678 |
DECAL, WARNING Price: $29.99 |
| 30 |
532178365 |
DECAL, WARNING Price: $12.99 |
| 31 |
532426297 |
BRACKET, AXLE Price: $3.99 |
| 33 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 34 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 35 |
532750634 |
SCREW Price: $2.99 |
| 36 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 37 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 38 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 39 |
532011190 |
Clamp, Cable Price: Call Us |
| 40 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 532177817 |
Manual, |
Operator's, English Price: Call Us 532177817 |
