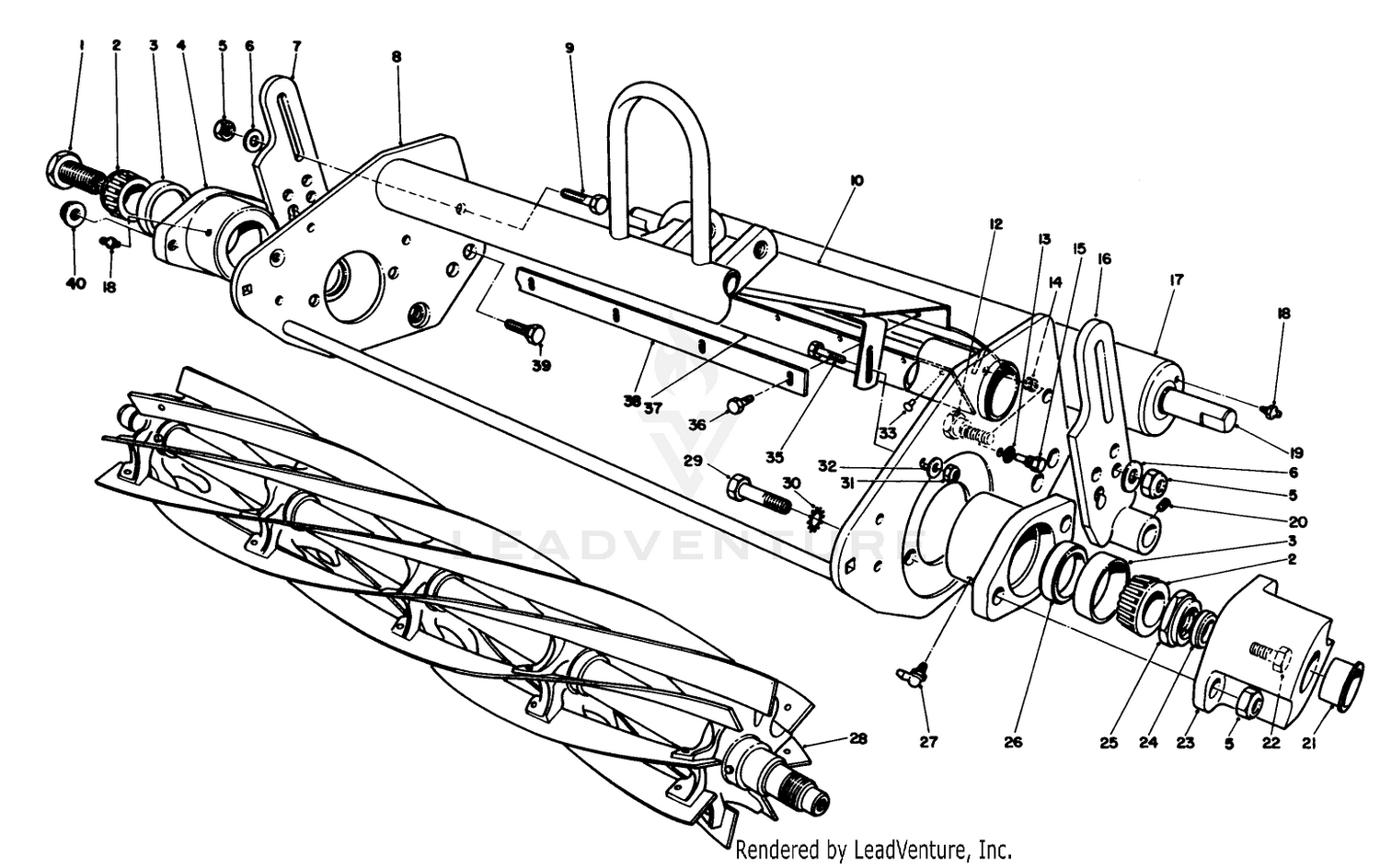

| Ref | Part Number | Description |
|---|
| 1 |
93-1394 |
NUT-SPLINE This part replaces 10-5100. Price: $27.80 |
| 2 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 3 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 4 |
108-6475 |
KIT-BEARING HOUSING This part replaces 10-5120. Price: $42.60 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
99-5653 |
RH HOC WA & SCREW This part replaces 52-3060. Price: $92.24 |
| 8 |
70-1200-01 |
FRAME-REEL ASM This part replaces 57-5100. Price: $396.13 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
57-5200 |
GRASS SHIELD ASM Price: $136.52 |
| 12 |
52-3100 |
BOLT-HOC ECCENTRIC, LH Price: $47.11 |
| 13 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 14 |
237-84 |
GROMMET Price: $1.12 |
| 15 |
57-9910 |
PIVOT SCREW Price: $6.45 |
| 16 |
99-5654 |
LH HOC WA & SCREW This part replaces 52-3090. Price: $90.89 |
| 17 |
52-3120 |
ROLLER ASM Price: $180.27 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
52-3180 |
BEARING-ROLLER, FRONT This part replaces 21-8430. Price: $31.50 |
| 20 |
3290-125 |
SCREW-SET,HSH Price: $1.47 |
| 21 |
12-0460 |
CAPLUG Price: $2.84 |
| 22 |
323-2 |
SCREW-HH Price: $0.68 |
| 23 |
10-5080-01 |
CAP-END This part replaces 10-5080. Price: $94.19 |
| 24 |
253-61 |
SEAL-OIL Price: $9.11 |
| 25 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 26 |
253-96 |
SEAL-OIL Price: $6.85 |
| 27 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 28 |
137-8577 |
ES REEL-SPA 4 BOLT, 8 BLD This part replaces 5-3189. Price: $506.13 |
| 29 |
57-3210 |
SCREW Price: $2.28 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 33 |
3295-46 |
RIVET Price: $0.34 |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 36 |
104-2065 |
SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 37 |
57-5210 |
SHIELD FLAP Price: $7.02 |
| 38 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 39 |
52-3110 |
BOLT-HOC SHOULDER, RH Price: $31.65 |
| 40 |
32128-36 |
NUT-HF Price: $1.56 |
