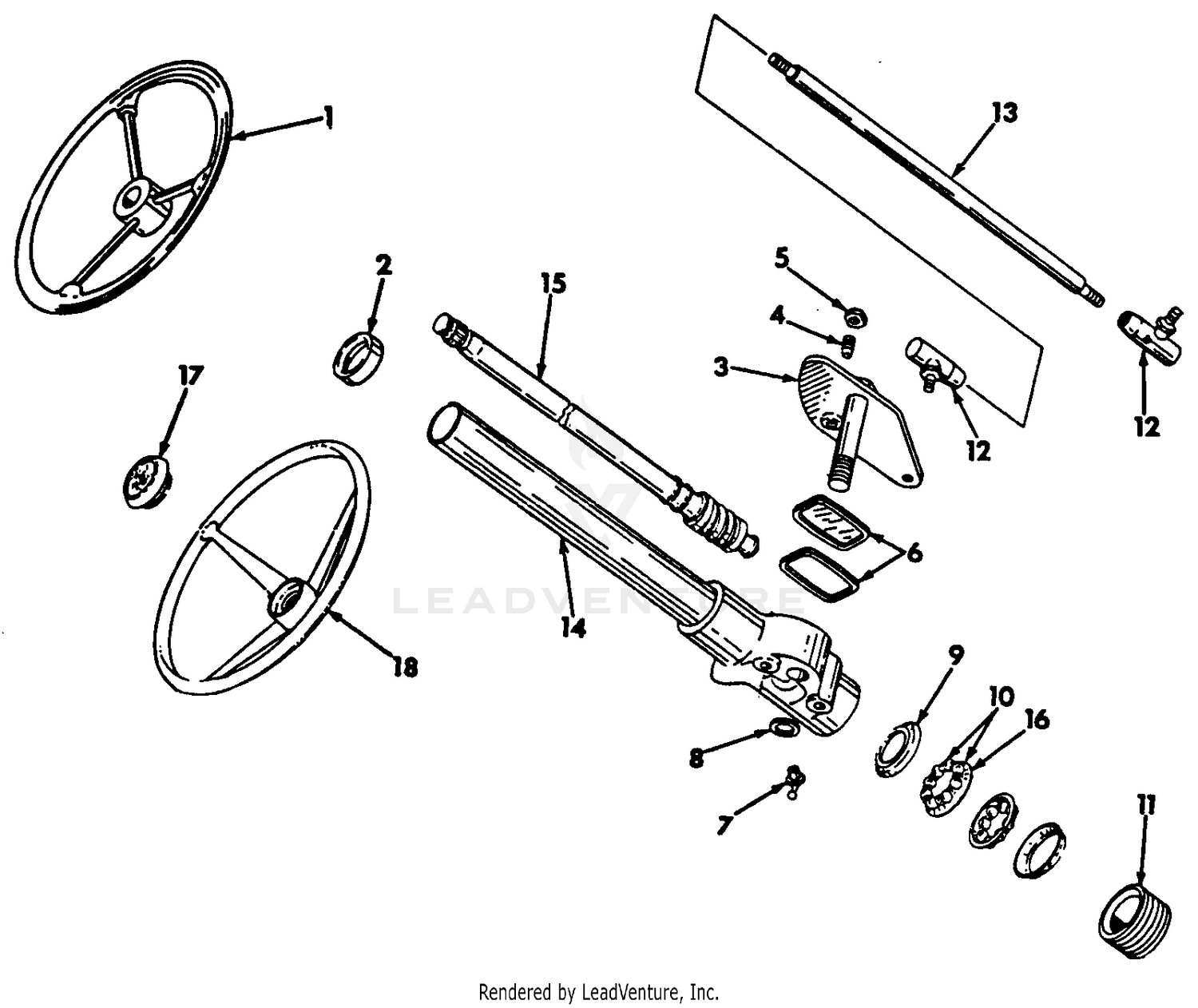

| Ref | Part Number | Description |
|---|
| 1 |
None |
Not used in this application |
| 1 |
69-2650 |
BOOT-CYLINDER, MASTER Price: $9.02 |
| 2 |
69-2660 |
RING-SNAP Price: $2.16 |
| 2 |
941-3023 |
COLUMN BEARING This part replaces 741-3000. Price: $7.17 |
| 3 |
69-2730 |
PISTON ASM Price: $80.82 |
| 3 |
IH-385522-R1 |
LEVER Not Available Price: |
| 4 |
69-2750 |
COVER-RESERVOIR Price: $24.03 |
| 4 |
IH-62806-C2 |
STUD Not Available This part replaces IH-62806-C1. Price: |
| 5 |
69-2760 |
GASKET-DIAPHRAGM Price: $12.99 |
| 5 |
712-3029 |
Nut, Hex Jam, 1/2-20 GR5 This part replaces IH-192510-R1. Price: $6.01 |
| 6 |
69-2770 |
SEAT-TUBE Price: $5.89 |
| 6 |
IH-394936-R91 |
KIT-SEAL & RETAINE Not Available Price: |
| 7 |
IH-273360 |
FITTING Not Available Price: |
| 8 |
IH-308362-C1 |
WASHER Not Available Price: |
| 9 |
903-1029 |
BEARING CUP Not Available This part replaces IH-379405-R1. Price: |
| 10 |
941-3021 |
RETAINER/BALL ASSEMBLY This part replaces IH-389081-R91. Price: $32.76 |
| 11 |
IH-394288-R1 |
PLUG Not Available Price: |
| 14 |
IH-401653-R1 |
GEAR ASM-STEERING Not Available Price: |
| 15 |
IH-401661-R1 |
GEAR ASSEMBLY-STEERI Not Available Price: |
| 16 |
941-3021 |
RETAINER/BALL ASSEMBLY This part replaces IH-389081-R1. Price: $32.76 |
