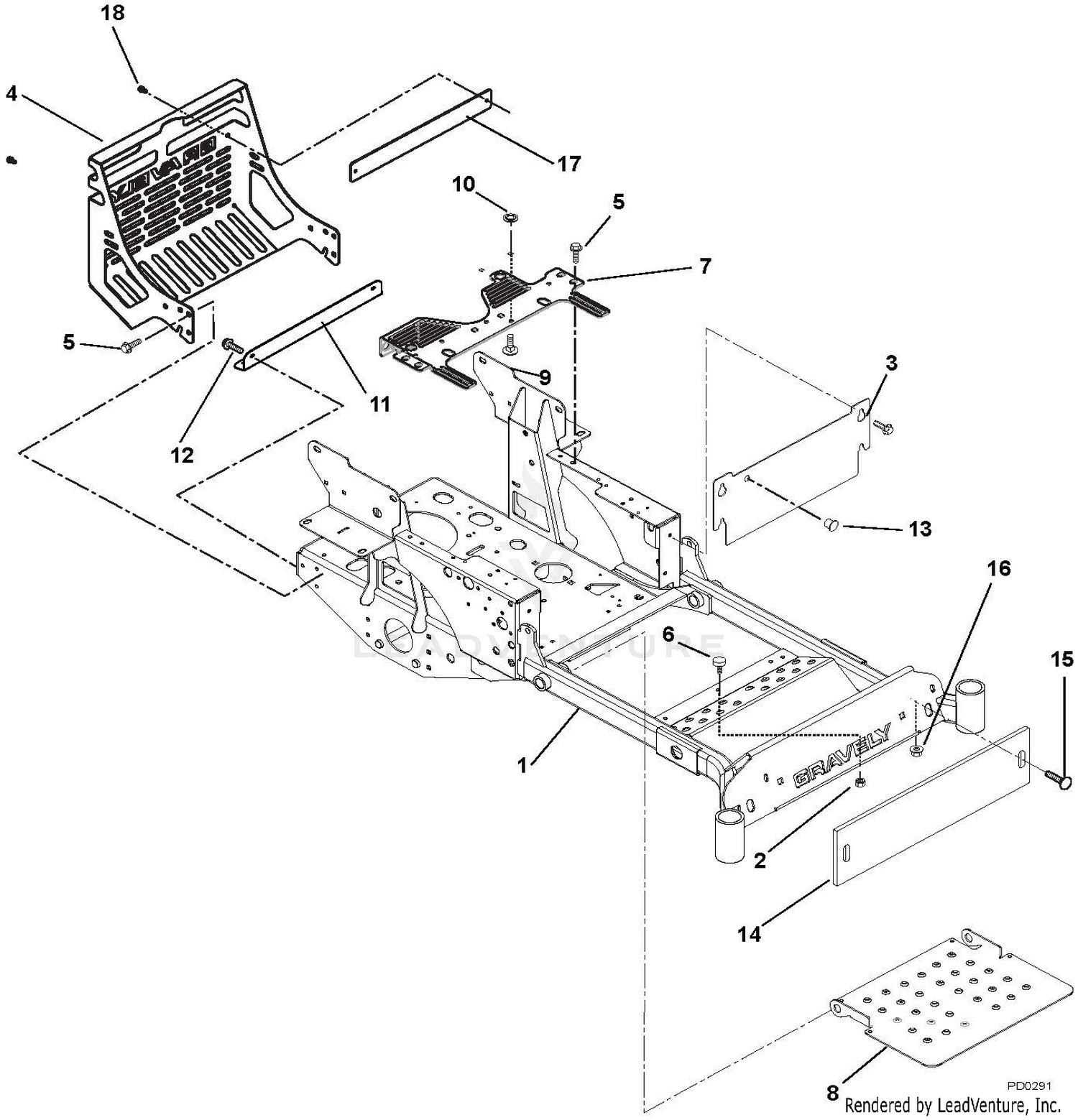

| Ref | Part Number | Description |
|---|
| 1 |
00346553 |
FRAME, 34Z Price: $699.95 |
| 2 |
06500815 |
NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45 |
| 3 |
09297253 |
PANEL, ACCESS Price: $49.45 |
| 4 |
04369353 |
WMT-COMPACT-PRO 34" BUMPER Price: $174.95 |
| 5 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 6 |
07533600 |
BUMPER, RUBBER Price: $10.95 |
| 7 |
04114551 |
SEAT PLATE,34Z - BLK Price: $67.95 |
| 8 |
00298951 |
PANEL, INSPECTION - BLACK Price: $64.45 |
| 9 |
06200309 |
BLT, RHSSN.31-18X.750 G5 ZCC This part replaces 06220800. Price: $2.45 |
| 10 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 11 |
04672751 |
BRKT, HEAT SHIELD - MUFFLER Price: $17.95 |
| 12 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 13 |
01554900 |
HOLE PLUG, PLASTIC .56 HOLE Price: $2.45 |
| 14 |
01922851 |
COUNTERWEIGHT, CZ FRONT-BLACK Price: $29.95 |
| 16 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 17 |
03995751 |
BUMPER PLATE 2.00 X 16.50 -BLK Price: $12.45 |
| 18 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 19 |
04161651 |
GUARD,LH HINGE OPENING (BLK) Price: Call Us |
| 20 |
04161551 |
GUARD,RH HINGE OPENING (BLK) Price: Call Us |
