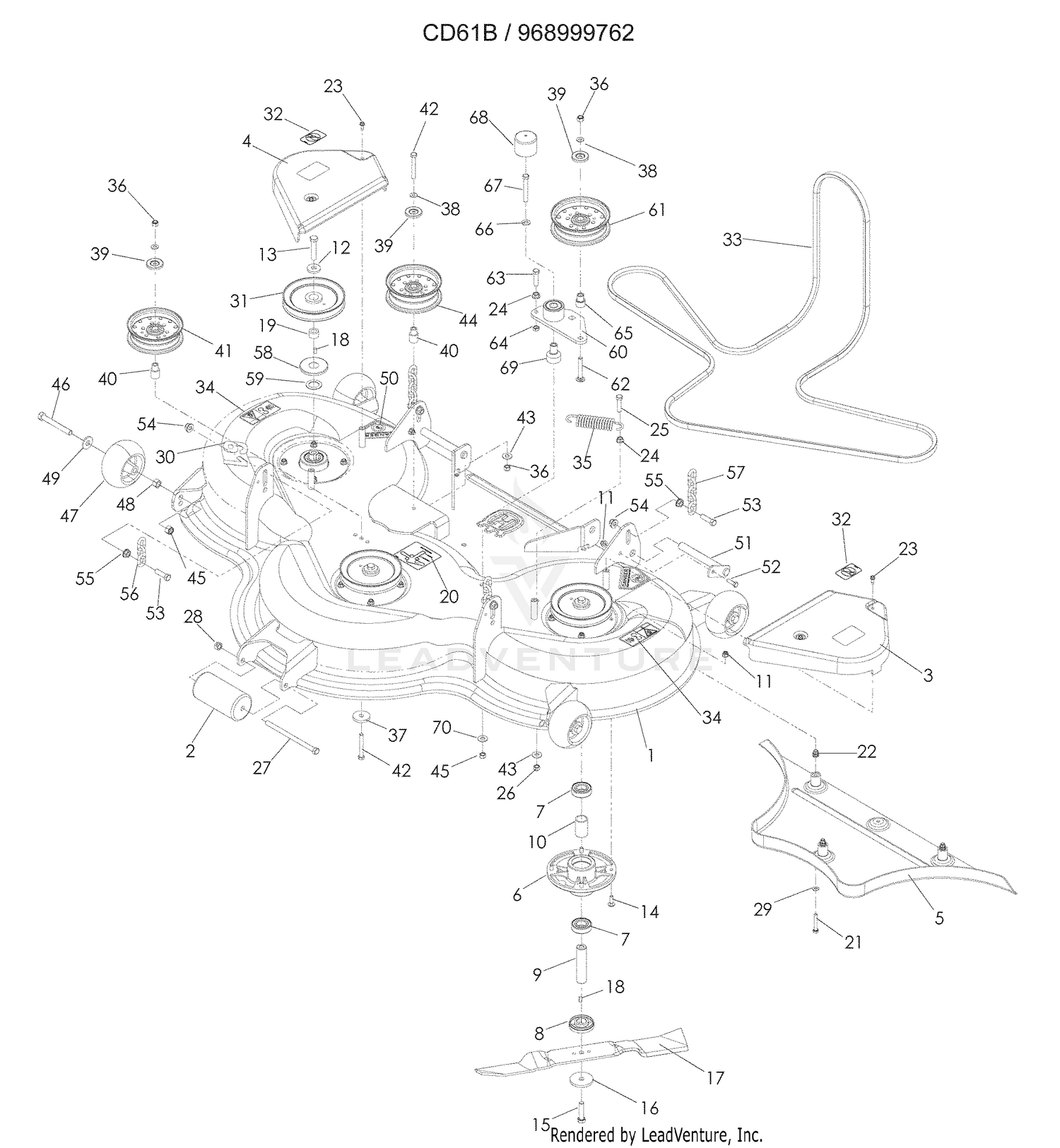

Combi Deck CD61

Combi Deck CD61

Parts (72)

RefPart NumberDescription
1 3218-5 NUT-JAM Price: $0.27
1 539133057 DECK W/DECALS, 61" HUS Price: $2,020.99
2 3253-7 WASHER-LOCK Price: $0.27
2 539002472 ROLLER This part replaces 544185401. Price: $77.99
3 325-14 SCREW-HH Price: $2.64
3 539112508 BELT SHIELD LT Price: $19.99
4 539112509 BELT SHIELD RT Price: $27.99
5 544166401 PLUG ASSEMBLY Price: $649.99
6 535428901 BEARING HOUSING Price: $119.99
7 738220519 BALL BEARING Price: $6.99
8 539132778 BUSHING, BLADE Price: $69.99
9 535428702 AXLE Price: $49.99
10 535428801 SPACER Price: $7.99
11 594944401 NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99
12 539115550 WASHER-.533IDX1.37OD Price: $3.99
13 539132479 HCS M12 X 1.75 X 60 GR5 ZD Price: $2.99
14 595901501 Bolts This part replaces 539990208. Price: $3.99
15 539132480 HCS M12 X 1.75 X 50 GR8.8 ZD Price: $2.99
16 506792302 WASHER Price: $12.99
17 544175801 BLADE Price: $64.99
18 506533501 KEY Price: $3.99
19 539112609 KEY RETAINER Price: $8.99
20 539112620 DECAL, BELT ROUTING Price: $4.99
21 539132494 HCS M8 X 1.25 X 50 GR8.8 ZD Price: $2.99
22 506916203 BLIND RIVET NUT Price: $7.99
23 539990362 SCREW 1/4 X 5/8 Price: $3.99
24 596583501 Washers This part replaces 539990613. Price: $2.99
25 539990588 HCS 3/8C X 2 Price: $3.99
26 596230801 Nuts This part replaces 539200282. Price: $2.99
27 539132470 HCS 7/16-14 X 7 GR5 ZD Price: $3.99
28 539990839 NUT 7/16C CENTERLOCK Price: $2.99
29 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
30 539002461 LABEL This part replaces 544245302. Price: $9.99
31 539112507 PULLEY, 61 Price: $99.99
32 581724301 DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99
33 539112531 DECK BELT, 61 BZCMB Price: $139.99
34 539105744 DECAL, BELT DRIVE Price: $5.99
35 539103256 SPRING Price: $9.99
36 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
37 596770301 Washers This part replaces 539106504. Price: $4.99
38 522023401 WASHER, 3/8 THICK Price: $2.99
39 510254502 SHIELD DUST This part replaces 510254501. Price: $3.99
40 539103295 IDLER BUSHING Price: $12.99
41 539103257 IDLER PULLEY Price: $49.99
42 539102612 SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99
43 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
44 539103258 IDLER PULLEY (TALL) Price: $44.99
45 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
46 539108365 HCS 1/2-13 X 4 GR 5 TPBLT ZD Price: $1.99
47 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
48 539990258 NUT HEX 1/2 Price: $3.99
49 595316401 Washers This part replaces 539109554. Price: $2.99
50 539913010 DECAL, CPSC Price: $3.99
51 539132498 PIN, STRUT, WELDMENT Price: $109.99
52 596580801 Bolts This part replaces 539990209. Price: $2.99
53 594944601 Bolts This part replaces 539101175. Price: $2.99
54 873900700 NUT.LOCK.FLANGE.7/16 This part replaces 539132019. Price: $3.99
55 596577901 Nuts This part replaces 539102582. Price: $2.99
56 594722001 Chains This part replaces 539109693. Price: $3.99
57 594722002 LIFT This part replaces 539102641. Price: $4.99
58 539108449 BOTTOM DUST CAP Price: $3.99
59 539127099 WASHER-1.06IDX1.63ODX.06 Price: $4.99
60 539130391 ARM-IDLER W/BRG Price: $37.99
61 539103257 IDLER PULLEY Price: $49.99
62 596337801 Bolts This part replaces 539128101. Price: $4.99
63 539107042 HCS 3/8-16 X 1-1/2 Price: $2.99
64 596433501 NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99
65 539130242 BUSHING, IDLER Price: $2.99
66 596581701 Washers This part replaces 539115528. Price: $2.99
67 539101572 SCREW, 1/2C X 3 HEX CAP Price: $4.99
68 539114823 CAP, VINYL Price: $2.99
69 510206301 PIVOT, BEARING Price: $3.99
