| Ref | Part Number | Description |
|---|
| 1 |
233-48 |
KNOB Price: $10.92 |
| 2 |
93-2400-03 |
LOCKUP HANDLE ASM This part replaces 93-2400. Price: $110.85 |
| 3 |
83-0760 |
SPACER-PLATE, LOCKUP Price: $8.77 |
| 4 |
83-0740 |
DISC-FRICTION Price: $12.57 |
| 5 |
68-5130 |
WHEEL-STEERING Price: $124.07 |
| 6 |
107-2561 |
NUT-HEX This part replaces 47-6990. Price: $14.65 |
| 7 |
3274-63 |
SCREW-HSBH Price: $1.09 |
| 8 |
83-0730 |
SPACER-LOCKUP Price: $11.78 |
| 9 |
93-2199 |
SCREW-HH, RH Price: $50.68 |
| 10 |
325-4 |
SCREW-HH Price: $0.95 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
47-2890 |
BUSHING Price: $3.19 |
| 13 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 14 |
94-3461-03 |
COVER-STEERING ASM This part replaces 94-3461. Price: $68.87 |
| 15 |
83-1420 |
COLUMN-STEERING Price: $284.84 |
| 16 |
83-0810 |
COVER-STEERING Price: $110.46 |
| 17 |
340-133 |
FITTING-STR Price: $35.33 |
| 18 |
323-4 |
SCREW-HH Price: $1.02 |
| 19 |
93-2115-01 |
STEERING ARM ASM This part replaces 93-2115. Price: $326.55 |
| 20 |
93-8068 |
DECAL-ARM, STEERING Price: $5.09 |
| 21 |
3274-80 |
SCREW-HH Price: $1.76 |
| 22 |
3242-2 |
SCREW-SQH Price: $1.29 |
| 23 |
93-2120 |
DISCONTINUED Price: Call Us |
| 24 |
65-6390 |
WASHER-THRUST, PLAIN Price: $5.02 |
| 25 |
3290-277 |
NUT-SPEED Price: $0.61 |
| 26 |
93-8063 |
DECAL-CAUTION, CE Price: $18.92 |
| 27 |
68-5140 |
CAP-WHEEL, STEERING Price: $15.13 |
| 28 |
32144-21 |
SCREW Price: $0.20 |
| 29 |
237-79 |
O-RING Price: $5.46 |
| 30 |
93-2272 |
HYDRAULIC HOSE ASM Price: $95.00 |
| 31 |
93-2252 |
HOSE ASSY - HYD Price: $119.96 |
| 32 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 33 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 34 |
93-2271 |
HYD HOSE ASM Price: $80.93 |
| 35 |
237-21 |
O-RING Price: $0.70 |

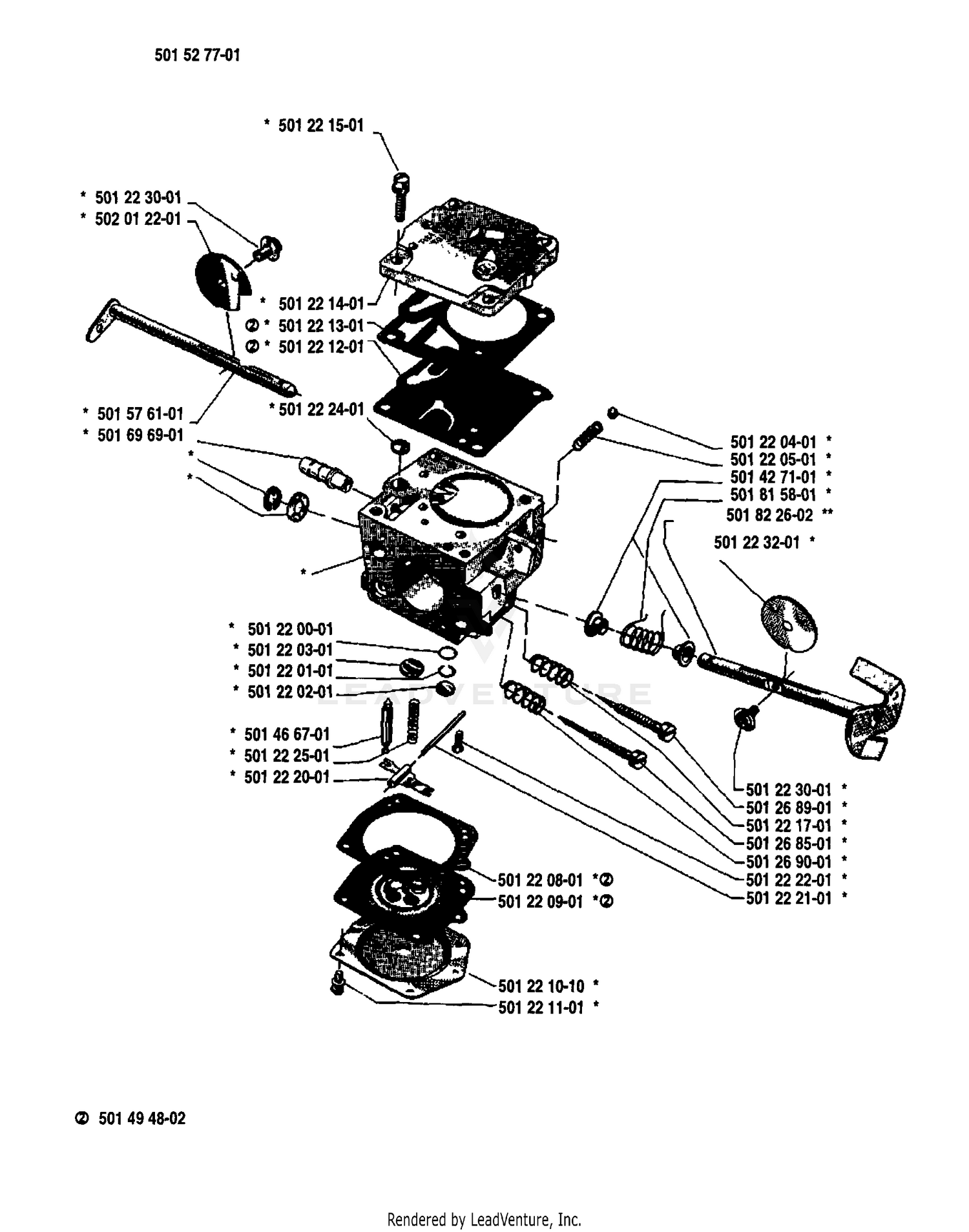

| 501220001 |
501220001 |
SCREEN Price: $0.99 |
| 501220101 |
501220101 |
LOCKING RING Price: $0.69 |
| 501220201 |
501220201 |
PLUG (TIL 179-60X) Price: $2.25 |
| 501220301 |
501220301 |
Plug Price: $0.85 |
| 501220401 |
501220401 |
BALL Price: $11.99 |
| 501220501 |
501220501 |
SPRING Price: $3.99 |
| 501220801 |
501220801 |
GASKET, METERING SIDE Price: $3.99 |
| 501220901 |
501220901 |
METERING DIAPHRAGM Price: $14.99 |
| 501221010 |
501221010 |
Price: Call Us |
| 501221101 |
503486301 |
COVER SCREW This part replaces 501221101. Price: $3.99 |
| 501221201 |
501221201 |
FUEL PUMP DIAPHRAGM Price: $7.99 |
| 501221301 |
501221301 |
GASKET, PUMP SIDE Price: $3.99 |
| 501221401 |
501221401 |
CAP Price: $27.99 |
| 501221501 |
501221501 |
SCREW Price: $3.99 |
| 501221701 |
501221701 |
SPRING Price: $3.99 |
| 501222001 |
501222001 |
LEVER Price: $4.99 |
| 501222101 |
501222101 |
SHAFT Price: $6.99 |
| 501222201 |
501222201 |
SCREW Price: $1.30 |
| 501222401 |
578004601 |
FILTER This part replaces 501222401. Price: $0.99 |
| 501222501 |
501222501 |
SPRING Price: $3.99 |
| 501223001 |
503652701 |
SCREW This part replaces 501223001. Price: $4.99 |
| 501268501 |
501268501 |
IDLE ADJ. SCREW Price: $17.99 |
| 501268901 |
501268901 |
NEEDLE H Price: $6.99 |
| 501427101 |
501427101 |
Bushing Price: $1.00 |
| 501466701 |
503117001 |
VALVE/INLET. This part replaces 501466701. Price: $19.99 |
| 501494802 |
501494802 |
DIAPHRAGM SET Price: $17.99 |
| 501527701 |
501527701 |
Price: $86.94 |
| 501576101 |
501576101 |
CHOKE SHAFT AND LEVER Price: $9.99 |
| 501696901 |
503801301 |
CONNECTION This part replaces 501696901. Price: $8.99 |
| 501815801 |
501815801 |
SPRING Price: $2.07 |
| 501822602 |
501814401 |
THROTTLE SHAFT This part replaces 501822602. Price: $6.99 |
| 502012201 |
502012201 |
CHOKE FLAP Price: $2.62 |
