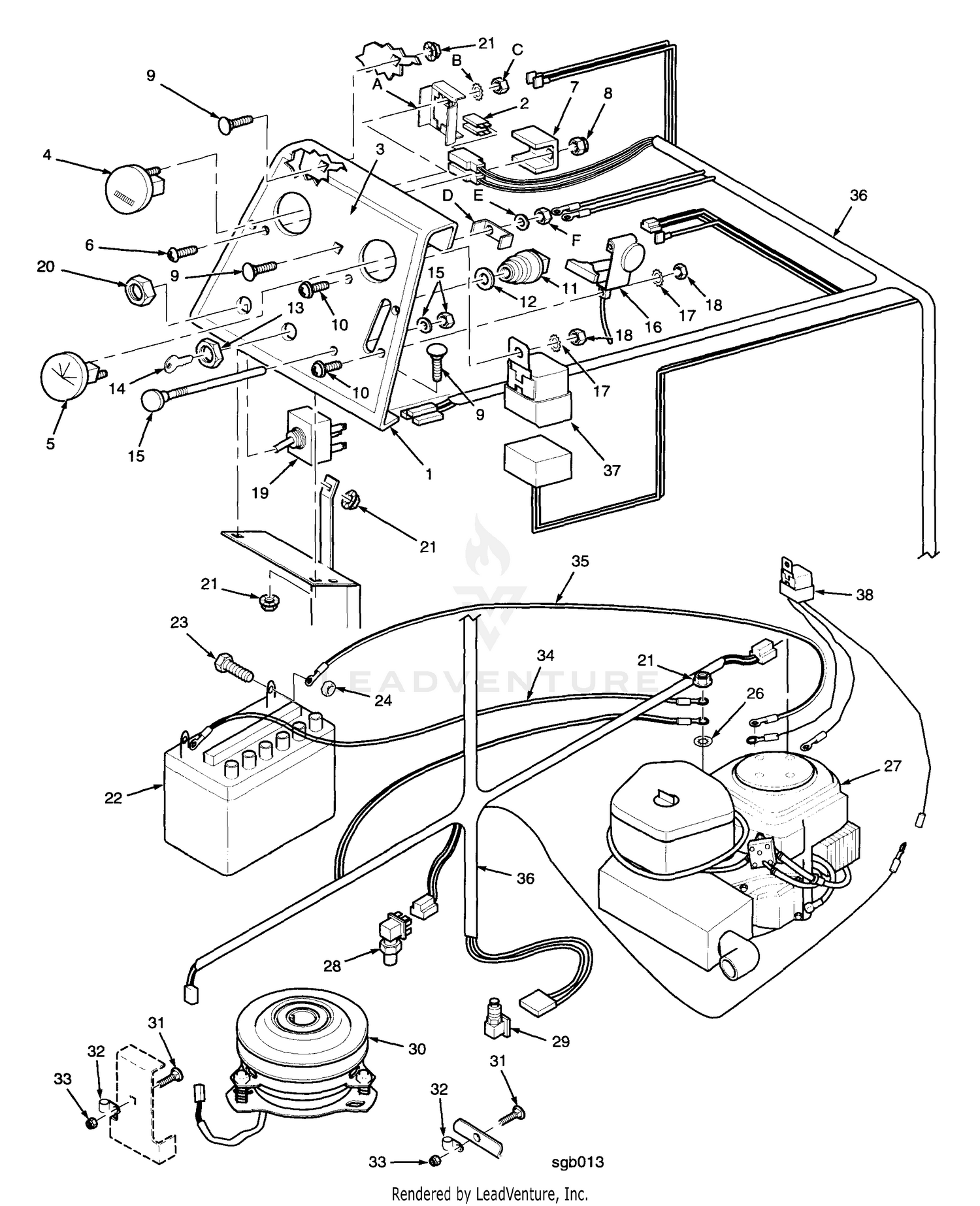

| Ref | Part Number | Description |
|---|
| 2 |
48298 |
Blade Fuse, 20 amp. Price: Call Us |
| 3 |
481136 |
Decal, Instrument Panel Price: Call Us |
| 6 |
04010-11 |
Phillips Rd. Head Screw, #10-32 x 1-112" Price: Call Us |
| 7 |
42413 |
Bracket, Fuse Holder Price: Call Us |
| 8 |
04021-01 |
Elastic Stop Nut, #10-32 Price: Call Us |
| 9 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4" Price: Call Us |
| 10 |
04010-01 |
Phillips Washer Head Screw, #10-32 x .50" Price: Call Us |
| 11 |
48798 |
Keyswitch Price: Call Us |
| 14 |
48017-02 |
Ignition Key and Ring Assy. Price: Call Us |
| 16 |
48879 |
Throttle Control Price: Call Us |
| 17 |
04031-01 |
Lockwasher, #10 Ext. Tooth Price: Call Us |
| 18 |
04020-01 |
Hex Nut, #10-32 Price: Call Us |
| 19 |
48787 |
Switch, PTO Price: Call Us |
| 21 |
04019-03 |
Serr. Fl. HH Nut, 5/16-18 Price: Call Us |
| 22 |
48015 |
Battery Price: Call Us |
| 23 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 24 |
04020-02 |
Hex Nut 1/4-20 Price: Call Us |
| 26 |
04031-09 |
Lockwasher 5/16 int. Tooth Price: Call Us |
| 27 |
48836 |
Engine, 20 HP Kohler CV Price: Call Us |
| 28 |
481474 |
Switch, Parking Brake Price: Call Us |
| 29 |
481476 |
Switch, Foot Safety Price: Call Us |
| 30 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 31 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4" Price: Call Us |
| 32 |
48030-09 |
Wireloom Price: Call Us |
| 33 |
04021-10 |
Locknut, Elastic Stop 5/16-18 Price: Call Us |
| 34 |
48029-15 |
Battery Cable, 36" Black Price: Call Us |
| 35 |
48029-13 |
Battery Cable, 25" Red Price: Call Us |
| 36 |
481268 |
Wire Harness, STHM Price: Call Us |
| 37 |
48788 |
Relay Price: Call Us |
