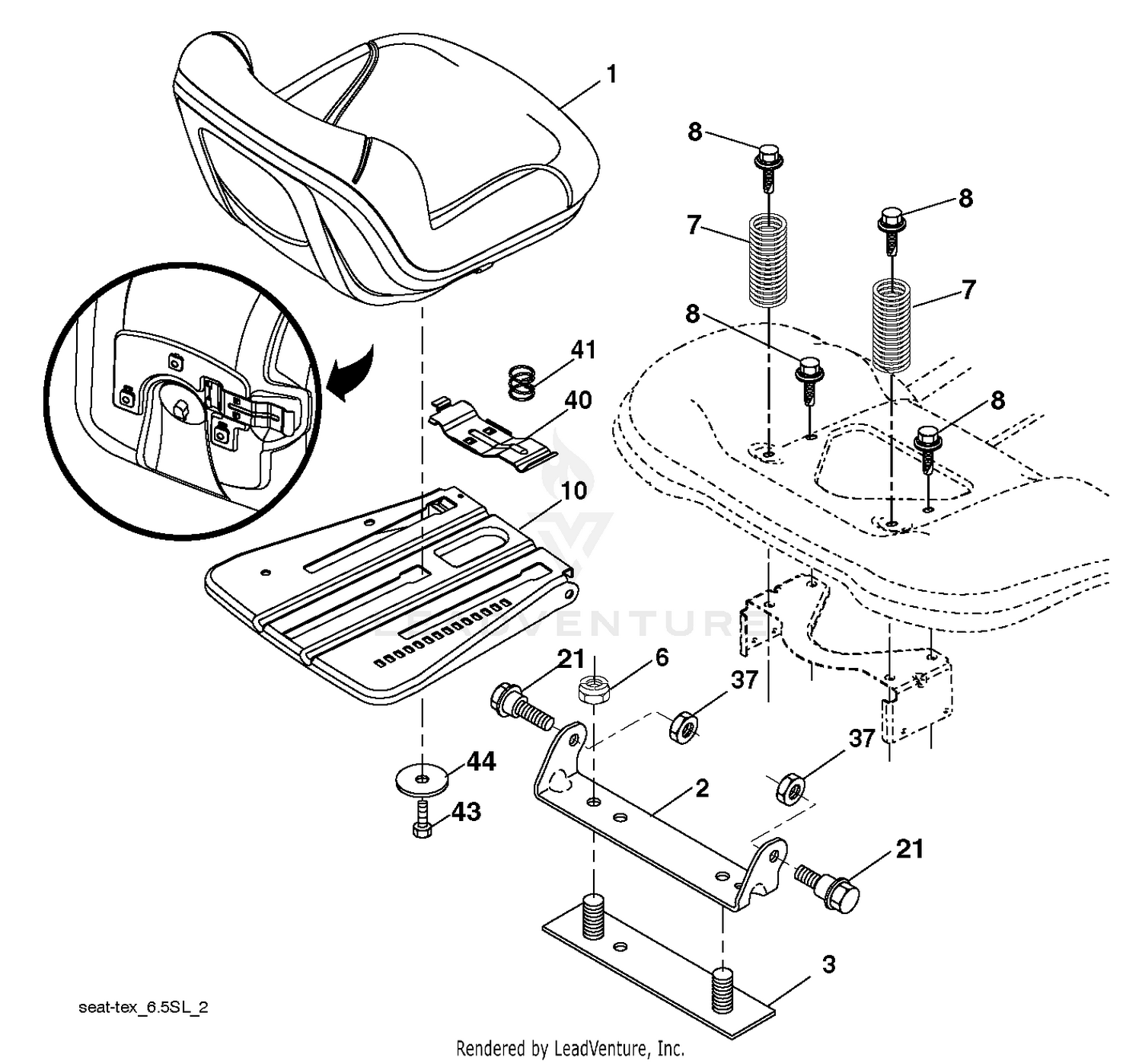

| Ref | Part Number | Description |
|---|
| 1 |
532406625 |
SEAT.TG150.BLK.NLOGO. Price: $174.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 6 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 010 |
98-9604 |
CRANKCASE ASM This part replaces 105-3778. Price: $1,882.83 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $31.99 |
| 020 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
532171852 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 030 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 040 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 050 |
105-3779 |
PLUG Price: $8.05 |
| 060 |
98-9597 |
PLUG Price: $17.66 |
| 070 |
98-7487 |
PLUG Price: $3.18 |
| 080 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 090 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 100 |
98-9375 |
PIN-STRAIGHT This part replaces 105-3793. Price: $0.41 |
| 110 |
105-3794 |
PIN-STRAIGHT Price: $1.21 |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 210 |
98-7509 |
O-RING Price: $4.31 |
| 220 |
120-3121 |
DRAINCOCK ASM This part replaces 98-9436. Price: $16.19 |
