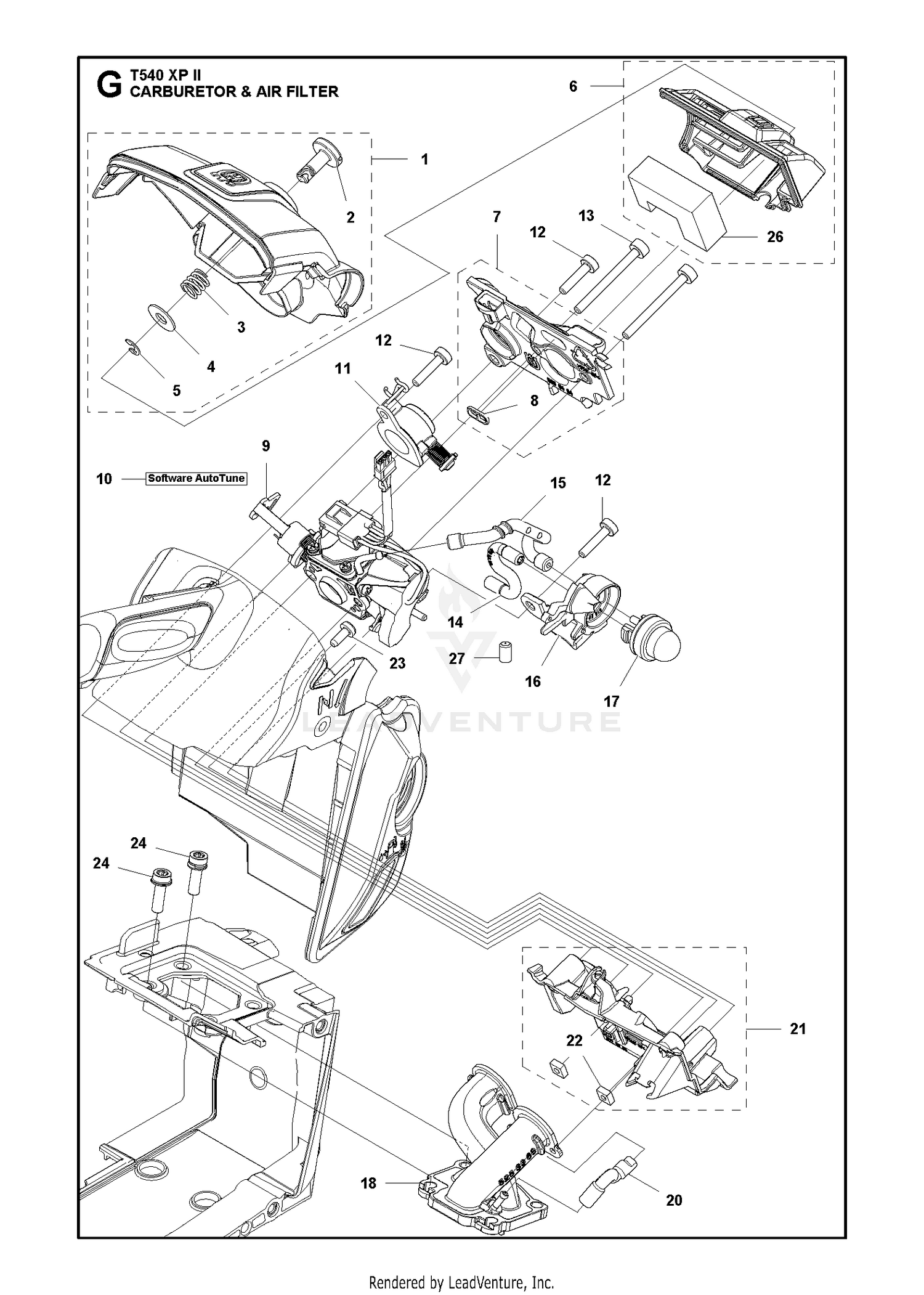

CARBURETOR & AIR FILTER
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576353601 | FILTER COVER ASSY Price: $29.99 |
| 1 | 98-1471 | WHEEL-STEERING Price: $145.99 |
| 2 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 3 | 3256-27 | WASHER-FLAT Price: $0.47 |
| 3 | 575487601 | SPRING Price: $4.99 |
| 4 | 117-3373 | BUSHING-ALIGNMENT Price: $5.63 |
| 4 | 576049801 | WASHER Price: $3.99 |
| 5 | 117-3371 | COLUMN-STEERING Price: $1,002.50 |
| 5 | 735310820 | E-RING 4 Price: $2.99 |
| 6 | 130-7948 | VALVE-CONTROL, STEERING This part replaces 117-3265. Price: $945.89 |
| 7 | 117-3234-03 | PLATE-STEERING Price: $42.64 |
| 7 | 506948402 | FILTER HOLDER ASSY Price: $24.99 |
| 8 | 3231-26 | SCREW-CARR Price: $0.86 |
| 8 | 525619201 | SEALING Price: $2.99 |
| 9 | 63-9750 | MOUNT Price: $18.92 |
| 10 | 63-8410 | WASHER Price: $1.76 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 574437601 | THROTTLE ASSY Price: $19.99 |
| 12 | 108-1531 | SCREW-HHF Price: $1.15 |
| 12 | 525824801 | SCREW ITXSCT Price: $3.99 |
| 13 | 574353502 | SCREW ITXSCM Price: $3.99 |
| 14 | 523056801 | FUEL HOSE Price: $4.99 |
| 15 | 516003301 | SUCTION HOSE Price: $9.99 |
| 16 | 574366401 | CHOKE CONTROL ASSY Price: $6.99 |
| 17 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 18 | 525396802 | INLET PIPE ASSY Price: $37.99 |
| 20 | 577406402 | HOSE This part replaces 577406401. Price: $4.99 |
| 21 | 522890301 | CARBURETTOR BRACKET Price: $11.99 |
| 22 | 574620401 | NUT SQUARE Price: $3.99 |
| 23 | 526222001 | SCREW CITXPANT Price: $2.99 |
| 26 | 574444502 | FOAMING FILTER Price: $5.99 |
| 27 | 537051801 | PLUG Price: $1.99 |
