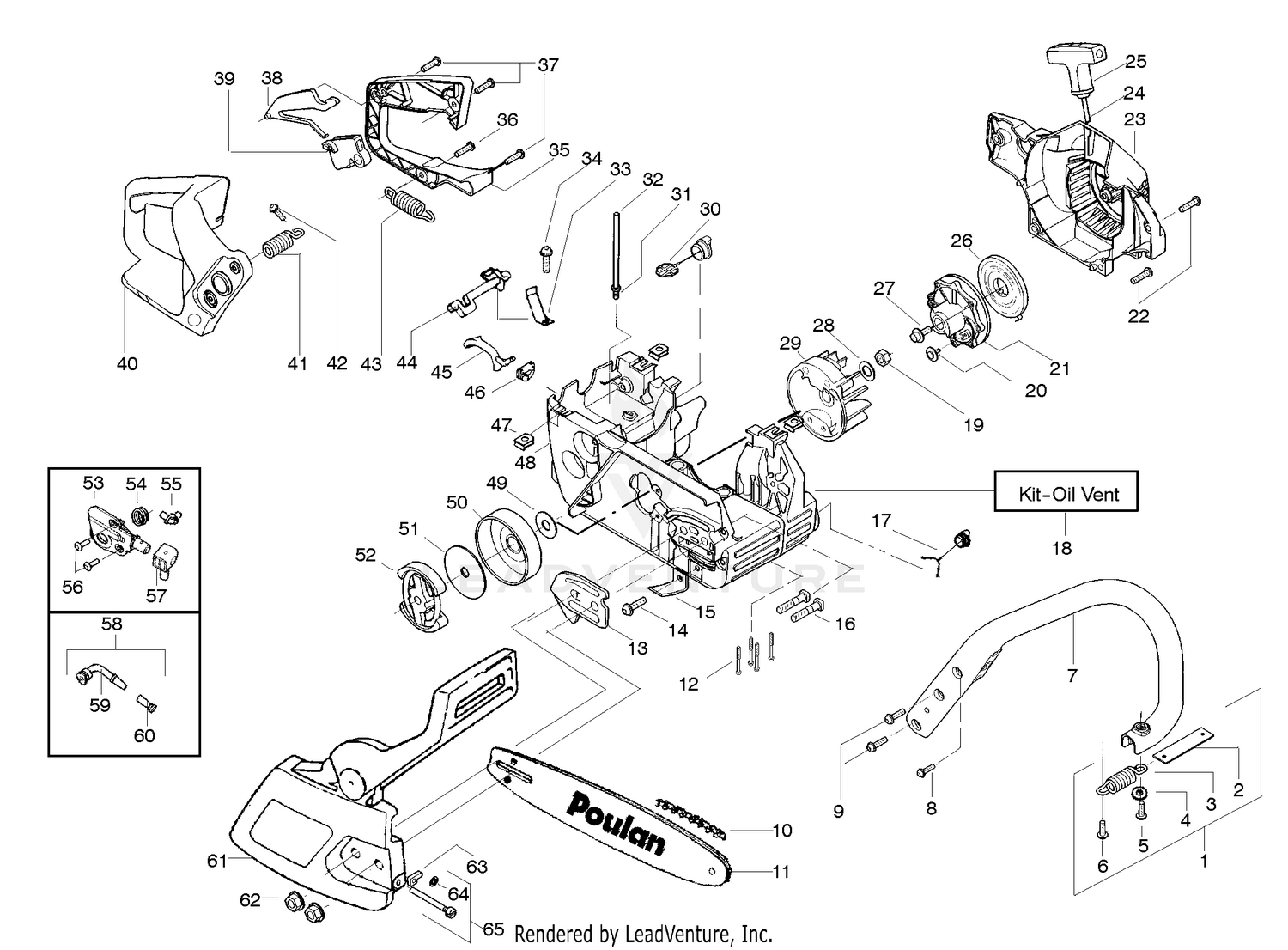

| Ref | Part Number | Description |
|---|
| 1 |
253-100 |
DISCONTINUED Price: Call Us |
| 1 |
530059667 |
Assy.-Isolator Price: $1.08 |
| 3 |
545006036 |
SPRING This part replaces 530059668. Price: $5.99 |
| 4 |
217-26 |
WHEEL HUB ASM Price: $509.40 |
| 4 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 5 |
254-20 |
CUP-BEARING Price: $44.82 |
| 5 |
530016018 |
Screw Price: $1.99 |
| 6 |
530015843 |
Screw Price: $1.99 |
| 6 |
56-7950 |
TIRE (9.5-14) 6-PLY This part replaces 33-0750. Price: $175.01 |
| 7 |
10-0720 |
DISCONTINUED Price: Call Us |
| 7 |
545048001 |
HANDLE This part replaces 530047583. Price: $27.99 |
| 8 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 8 |
530015940 |
Screw Price: $1.99 |
| 9 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
217-33 |
HUB CAP F/W Price: $83.14 |
| 10 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 11 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 11 |
952044418 |
Bar - 18" Price: $30.95 |
| 12 |
3256-9 |
WASHER-FLAT Price: $8.69 |
| 12 |
530016132 |
Screw Price: $1.99 |
| 13 |
254-42 |
CONE-BEARING Price: $94.24 |
| 13 |
530038238 |
Plate-Bar Mount. Price: $1.99 |
| 14 |
530015814 |
Screw Price: $1.99 |
| 15 |
530029850 |
Chain Catcher Price: $1.99 |
| 16 |
530016133 |
Bolt-Bar Price: $1.99 |
| 17 |
530057236 |
Assy-Oil Cap Price: $5.99 |
| 18 |
530071666 |
Kit-Oil Vent Price: $7.99 |
| 19 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 20 |
530016080 |
Screw Price: $1.99 |
| 21 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 22 |
530015892 |
Screw Price: $1.99 |
| 23 |
530054175 |
Housing-Fan Price: $4.99 |
| 24 |
530069232 |
Kit - Rope Price: $3.99 |
| 25 |
530056402 |
Handle-Starter Price: $2.99 |
| 26 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 27 |
530015920 |
Screw Price: $1.99 |
| 28 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 29 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 30 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 31 |
530023877 |
Fitting-fuel line Price: $1.99 |
| 32 |
530069216 |
Kit-Fuel line (large) Price: $3.99 |
| 33 |
530016149 |
Spring-Switch Price: $1.99 |
| 34 |
530015775 |
Screw Price: $1.99 |
| 35 |
530047581 |
Cover-Rear Handle Price: $3.99 |
| 36 |
530015886 |
Screw Price: $1.99 |
| 37 |
530015906 |
Screw Price: $1.99 |
| 38 |
545056901 |
Throttle Lockout Price: $1.99 |
| 39 |
545056801 |
Trigger-Throttle Price: $1.99 |
| 40 |
530047582 |
Handle - Rear Price: $11.99 |
| 41 |
545006036 |
SPRING This part replaces 530071958. Price: $5.99 |
| 42 |
530015875 |
Screw Price: $1.99 |
| 43 |
545006036 |
SPRING This part replaces 530059668. Price: $5.99 |
| 44 |
530057473 |
Lever-Switch Price: $2.99 |
| 45 |
530057474 |
Lever-Choke Price: $3.99 |
| 46 |
530049005 |
Grommet-Knob Price: $1.99 |
| 47 |
530015922 |
Nut-"U"-Type Price: $1.99 |
| 48 |
530058730 |
Assy-Chassis fuel lines and caps Price: $49.99 |
| 49 |
530015907 |
Washer-Thrust Price: $1.99 |
| 50 |
530047061 |
Assy.-Clutch Drum w/bearing Price: $11.99 |
| 51 |
530015611 |
Washer-Clutch Price: $1.99 |
| 52 |
530014949 |
Assy. Clutch Price: $7.99 |
| 54 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 55 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 56 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 57 |
530019206 |
Seal Block Price: $1.99 |
| 59 |
530038373 |
Pick-up Oiler Price: $1.99 |
| 60 |
530056533 |
Filter-Oil Price: $2.99 |
| 61 |
545139902 |
Assy.-Chain Brake Price: $22.99 |
| 62 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 63 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 64 |
530038593 |
Retainer Price: $0.99 |
