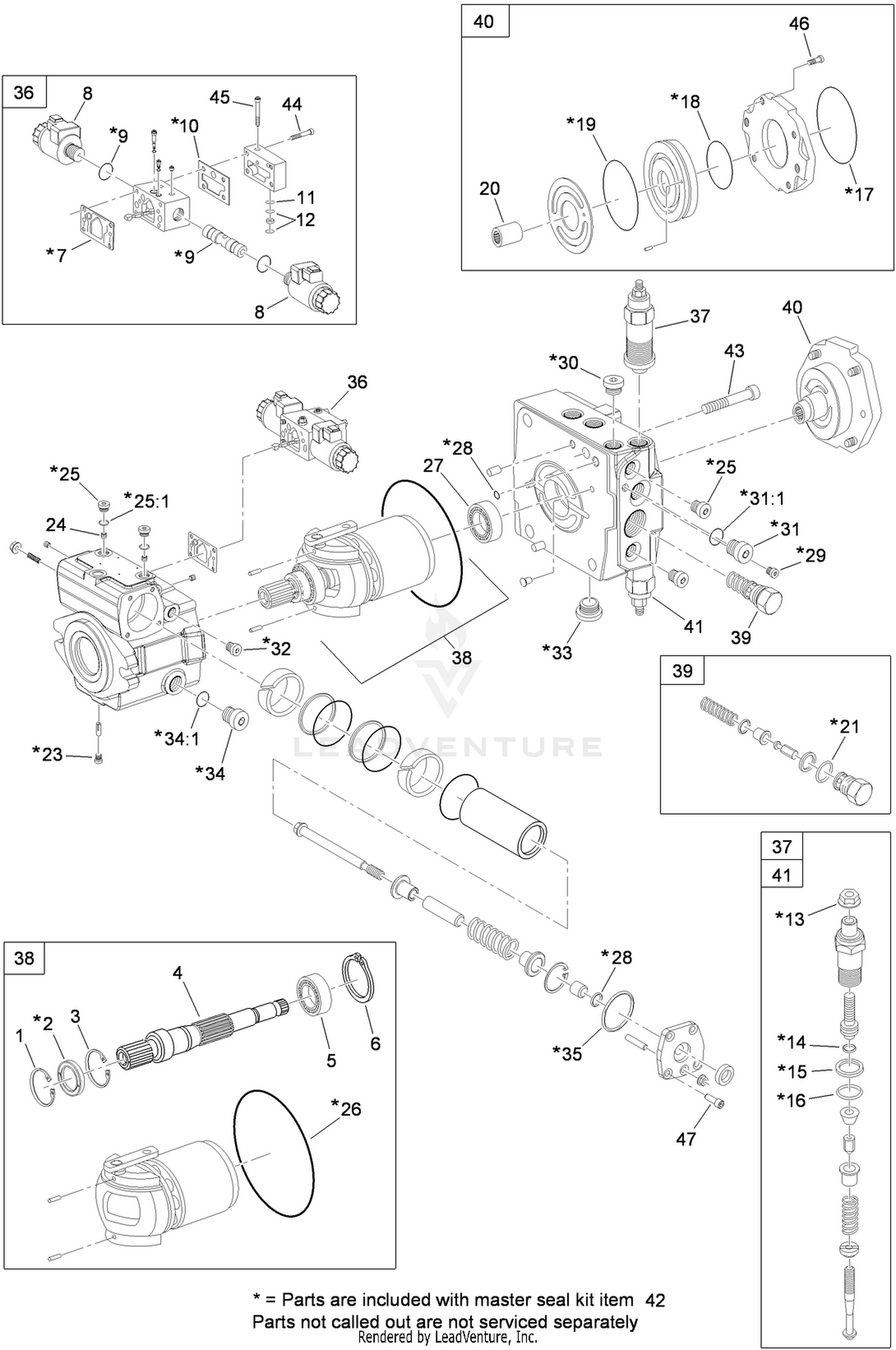

Piston Pump Assembly No. 110-5989
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-1115 | RING-SNAP Price: $10.44 |
| 2 | 117-1118 | SEAL-SHAFT Price: $104.04 |
| 3 | 117-1116 | RING-SNAP Price: $7.47 |
| 4 | 117-2751 | SHAFT-DRIVE Price: $722.36 |
| 5 | 117-1117 | BEARING-ROLLER Price: $447.11 |
| 6 | 117-1119 | RING-RETAINING Price: $9.07 |
| 7 | 117-1125 | GASKET Price: $42.83 |
| 8 | 117-1126 | SOLENOID-PROPORTIONAL Price: $667.28 |
| 9 | 117-1130 | O-RING Price: $8.38 |
| 10 | 117-1127 | GASKET Price: $38.44 |
| 11 | 117-1128 | DISC-PROTECTION, CONTROL LINE Price: $105.50 |
| 12 | 117-1129 | O-RING Price: $8.25 |
| 13 | 117-1131 | NUT-LOCK Price: $5.92 |
| 14 | 117-1132 | O-RING Price: $7.56 |
| 15 | 117-1133 | RING-BACK-UP Price: $6.91 |
| 16 | 117-1134 | O-RING Price: $32.94 |
| 17 | 117-1135 | O-RING Price: $33.36 |
| 18 | 117-1136 | O-RING Price: $9.90 |
| 19 | 117-1137 | O-RING Price: $39.22 |
| 20 | 117-1138 | COUPLING-DRIVE, THROUGH Price: $326.31 |
| 21 | 117-1140 | O-RING Price: $31.46 |
| 23 | 117-1122 | PLUG Price: $19.82 |
| 24 | 117-1124 | ORIFICE Price: $14.59 |
| 25 | 353-990 | PLUG ASM Price: $10.01 |
| 26 | 117-1144 | O-RING Price: $35.64 |
| 27 | 117-1143 | BEARING-ROLLER Price: $195.09 |
| 28 | 117-1120 | O-RING Price: $7.88 |
| 29 | 117-1139 | PLUG Price: $18.58 |
| 30 | 117-2752 | PLUG Price: $67.75 |
| 31 | 354-74 | PLUG-HH Price: $17.90 |
| 32 | 117-2753 | PLUG Price: $49.13 |
| 33 | 117-1142 | SCREW-LOCKING Price: $65.33 |
| 34 | 353-551 | PLUG-HH Price: $18.48 |
| 35 | 117-1121 | O-RING Price: $23.80 |
| 36 | 117-1123 | EP CONTROL ASM Price: $3,408.10 |
| 37 | 117-1145 | PRESET-HP RELIEF VALVE, 296 BAR Price: $1,305.53 |
| 38 | 117-1146 | ROTARY GROUP Price: $6,146.32 |
| 39 | 117-1147 | CHARGE RELIEF Price: $740.35 |
| 40 | 117-1148 | PUMP SUPPORT PLATE ASM Price: $1,578.36 |
| 41 | 117-1149 | PRESET-HP RELIEF VALVE, 365 BAR Price: $1,305.53 |
| 42 | 117-2750 | SEAL KIT Price: $974.36 |
| 43 | 117-2755 | SCREW Price: $17.87 |
| 44 | 117-2756 | SCREW-HSH Price: $6.11 |
| 45 | 117-2757 | SCREW-HSH Price: $6.23 |
| 46 | 117-2758 | SCREW-HSH Price: $5.92 |
