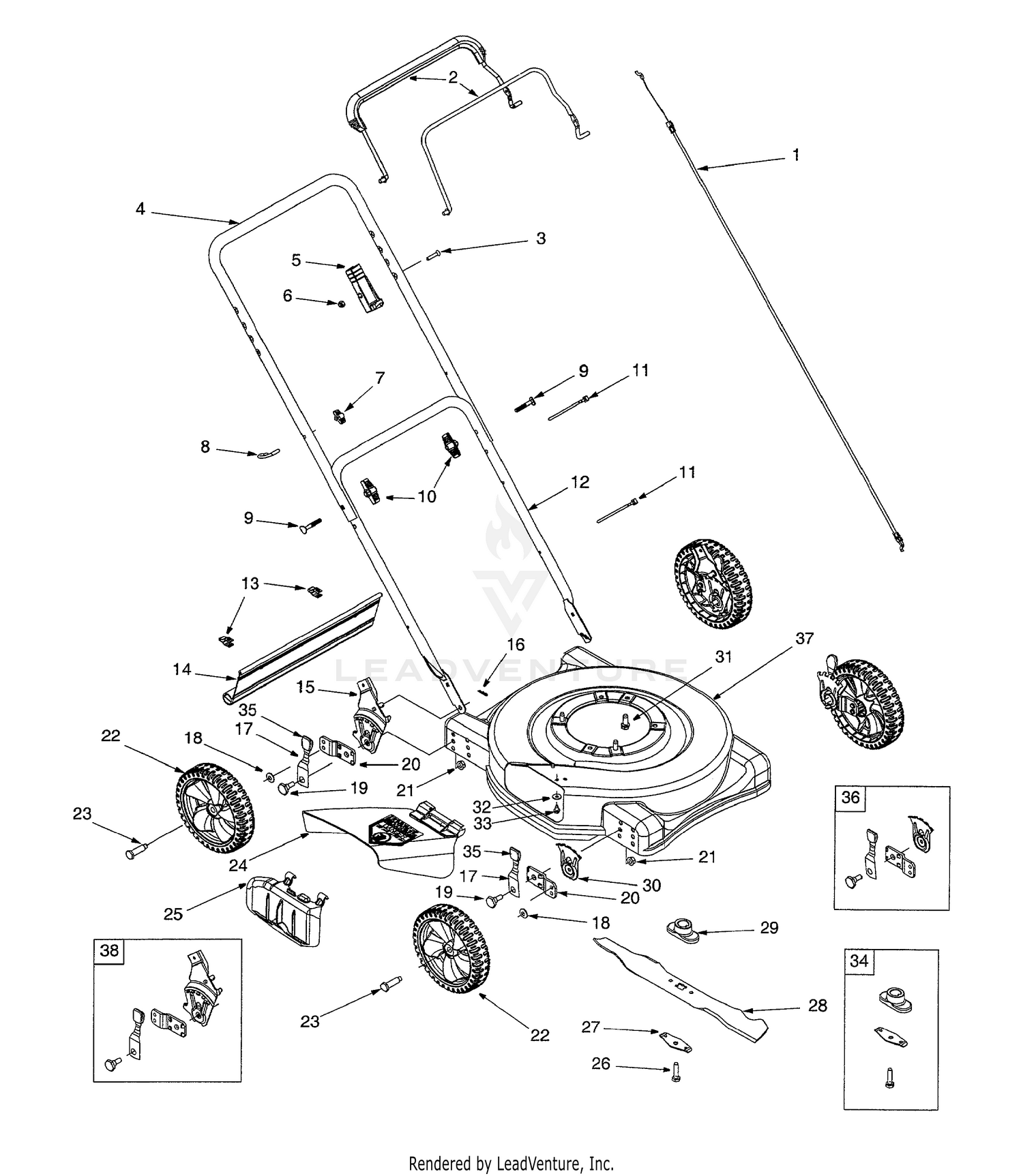

| Ref | Part Number | Description |
|---|
| 1 |
946-0554 |
Control Cable (brake) This part replaces 746-0554. Price: $19.73 |
| 2 |
747-0824B-0637 |
Std. Control Handle This part replaces 747-0824. Price: $57.85 |
| 3 |
710-1270 |
SCREW 1/4-20 x 1.310 Not Available Price: |
| 4 |
749-0705 |
UPPER HANDLE Not Available Price: |
| 5 |
746-0883 |
Control Cable Housing Price: $15.66 |
| 6 |
712-0324 |
Hex Lock Nut, Nylon, 1/4-20 GR8 Price: $3.38 |
| 7 |
720-0279 |
Wing Knob Price: $3.93 |
| 8 |
710-1205 |
Eye Bolt Price: $3.53 |
| 9 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 10 |
720-0314 |
Wing Knob Price: $5.31 |
| 11 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 12 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928. Price: $29.67 |
| 13 |
17098P |
HINGE CLIP Not Available This part replaces 17098. Price: |
| 14 |
731-0872B |
Rear Flap Not Available This part replaces 731-0872A. Price: |
| 15 |
987-02106A |
HANDLE BRACKET ASSEMBLY (RH) Not Available This part replaces 782-3024. Price: |
| 16 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 17 |
94832 |
Front Spring Lever This part replaces 732-0404. Price: $9.48 |
| 18 |
736-0105 |
Bell Washer, .400 ID x .88" Price: $3.96 |
| 19 |
738-0507B |
SHOULDER SCREW Price: $3.86 |
| 20 |
152628 |
Wheel Pivot Bar Price: Call Us |
| 21 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 23 |
738-0102 |
Shoulder Screw, .498 x 1.445: 3/8-16 Price: $9.22 |
| 24 |
931-1034B |
CHUTE DEFLECTOR Not Available This part replaces 731-1034B. Price: |
| 26 |
710-1044 |
Hex Head Cap Screw, 3/8-24 x 1.5 GR8 Price: $3.48 |
| 27 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 29 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 30 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 31 |
710-0654A |
Self Tapping Screw, 3/8-16 x 1" Price: $3.75 |
| 32 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 33 |
710-0599 |
Self Tapping Screw, 1/4-20 x 1/2" Price: $3.86 |
| 34 |
753-06315 |
Blade Adapter Kit (Incl. Ref. 13-15) This part replaces 753-0588. Price: $14.26 |
| 35 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 36 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 37 |
682-0140 |
DECK ASSEMBLY-20" SD Not Available Price: |
| 38 |
987-02106A |
HANDLE BRACKET ASSEMBLY (RH) Not Available This part replaces 682-3024. Price: |
