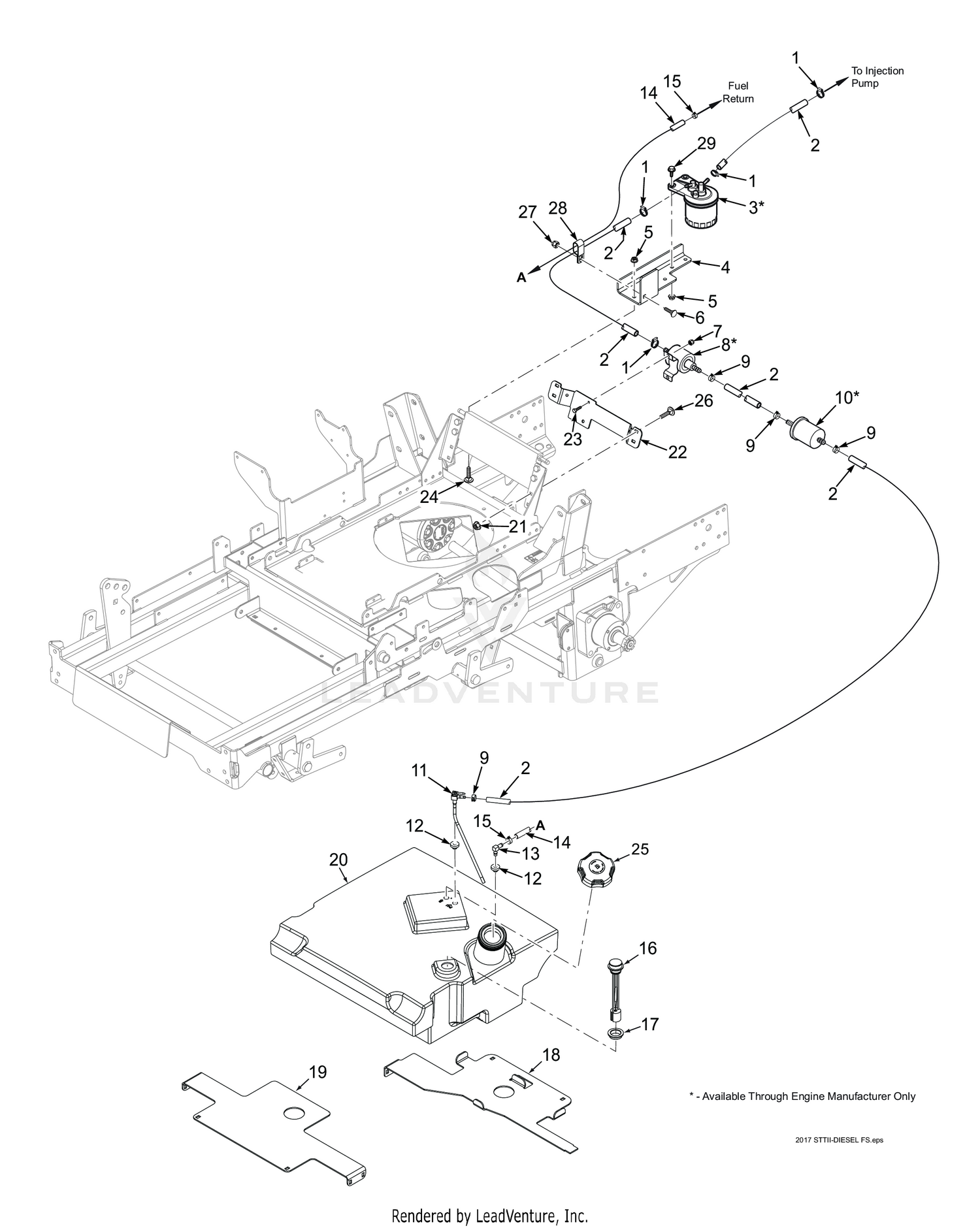

| Ref | Part Number | Description |
|---|
| 1 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 1 |
6-8730 |
Seat Price: Call Us |
| 2 |
231-21 |
DISCONTINUED Price: Call Us |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 4 |
3217-9 |
NUT-HH Price: $0.37 |
| 4 |
427164 |
Bracket, Fuel Filter Mounting Price: Call Us |
| 5 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 5 |
3-6866 |
Frame Price: Call Us |
| 6 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 6 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 7 |
242-36 |
DISCONTINUED Price: Call Us |
| 8 |
251-182 |
DISCONTINUED Price: Call Us |
| 9 |
3-6872 |
Spacer Price: Call Us |
| 9 |
48059-04 |
Clamp, Fuel Hose 5/16" I.D. (791DFI) Price: Call Us |
| 10 |
232-3 |
TUBE-INNER Price: $30.40 |
| 11 |
3-6873 |
Pivot Tube Price: Call Us |
| 11 |
485701 |
Valve, Fuel Shutoff Price: Call Us |
| 12 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 12 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 13 |
3-6884 |
Pin Price: Call Us |
| 13 |
485626 |
Fitting, Return Price: Call Us |
| 14 |
6-7700 |
Foot Rest Pad Price: Call Us |
| 15 |
3-6874 |
Foot Rest Price: Call Us |
| 15 |
48059-03 |
Clamp, Fuel Return Hose Price: Call Us |
| 16 |
485687 |
Fuel Guage Assy., 8" Price: Call Us |
| 16 |
6-7710 |
Spring, Seat Price: Call Us |
| 17 |
325-22 |
SCREW-HH This part replaces 325-21. Price: $4.26 |
| 17 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 18 |
325-13 |
SCREW-HH Price: $3.57 |
| 18 |
428024 |
Rear Support, Fuel Tank Price: Call Us |
| 19 |
325-23 |
SCREW-HH Price: $18.83 |
| 19 |
428023 |
Front Support, Fuel Tank Price: Call Us |
| 20 |
463149 |
Fuel Tank Assembly (Incl. #11, 12, 15, 16) Price: Call Us |
| 21 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 22 |
428225 |
Mounting Bracket, Fuel Pump Price: Call Us |
| 23 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 24 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 25 |
484294 |
Cap, Fuel Tank Price: Call Us |
| 26 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 27 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 28 |
48030-11 |
Clamp, Double Cable 5/8" ID. Price: Call Us |
| 29 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
