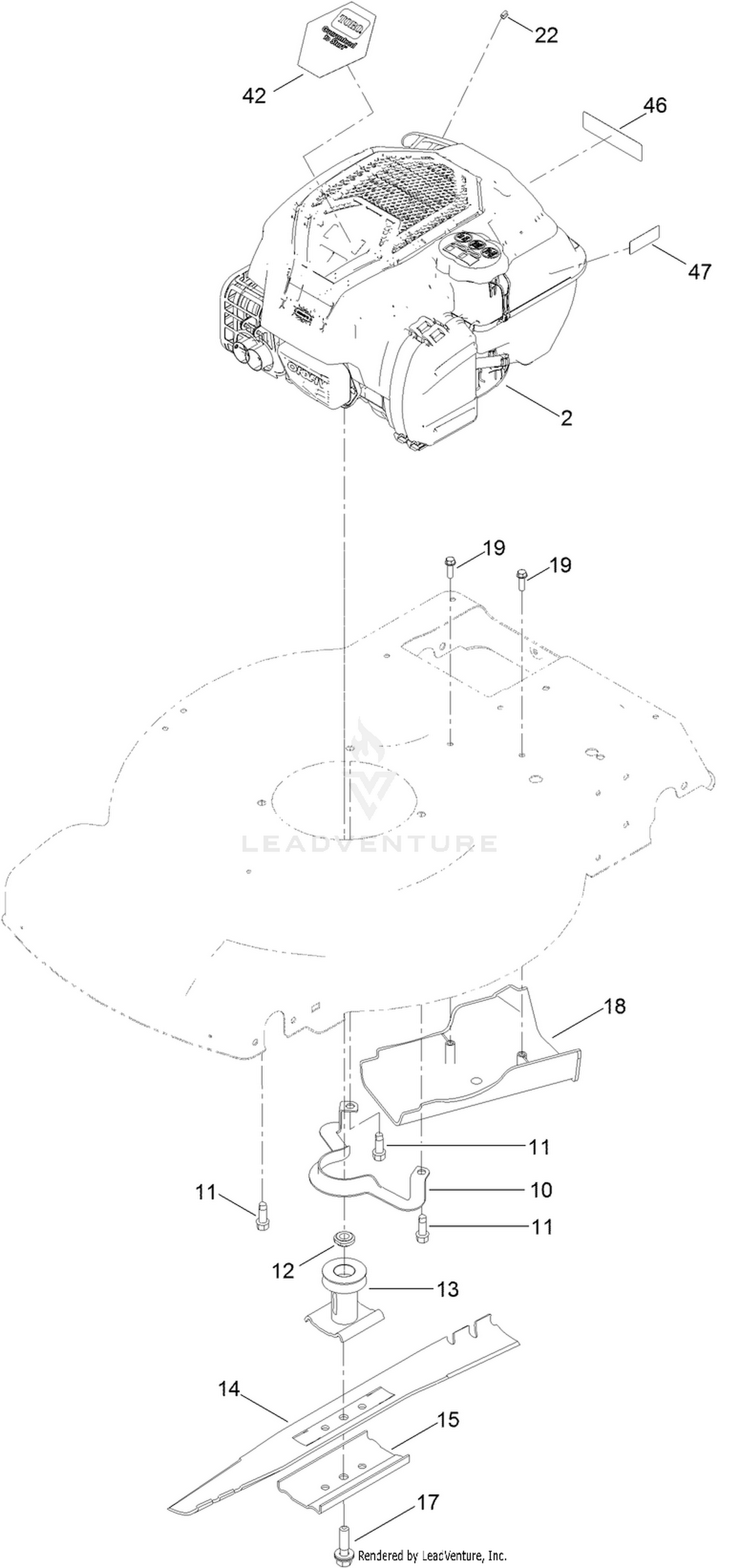

Engine and Blade Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 105-3030-03 | GUIDE-BELT Price: $9.83 |
| 11 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 12 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 13 | 106-3987 | DRIVER-BLADE Price: $20.79 |
| 14 | 131-4547-03 | BLADE-22 INCH Price: $21.88 |
| 15 | 108-3766-03 | SUPPORT-BLADE Price: $7.65 |
| 17 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 18 | 114-7937 | COVER-BELT Price: $12.23 |
| 19 | 46-8091 | SCREW-HWH Price: $3.59 |
| 22 | 2210-316 | STOP-ROPE Price: $4.41 |
| 42 | 133-8105 | DECAL-SHROUD Price: $3.79 |
| 46 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
