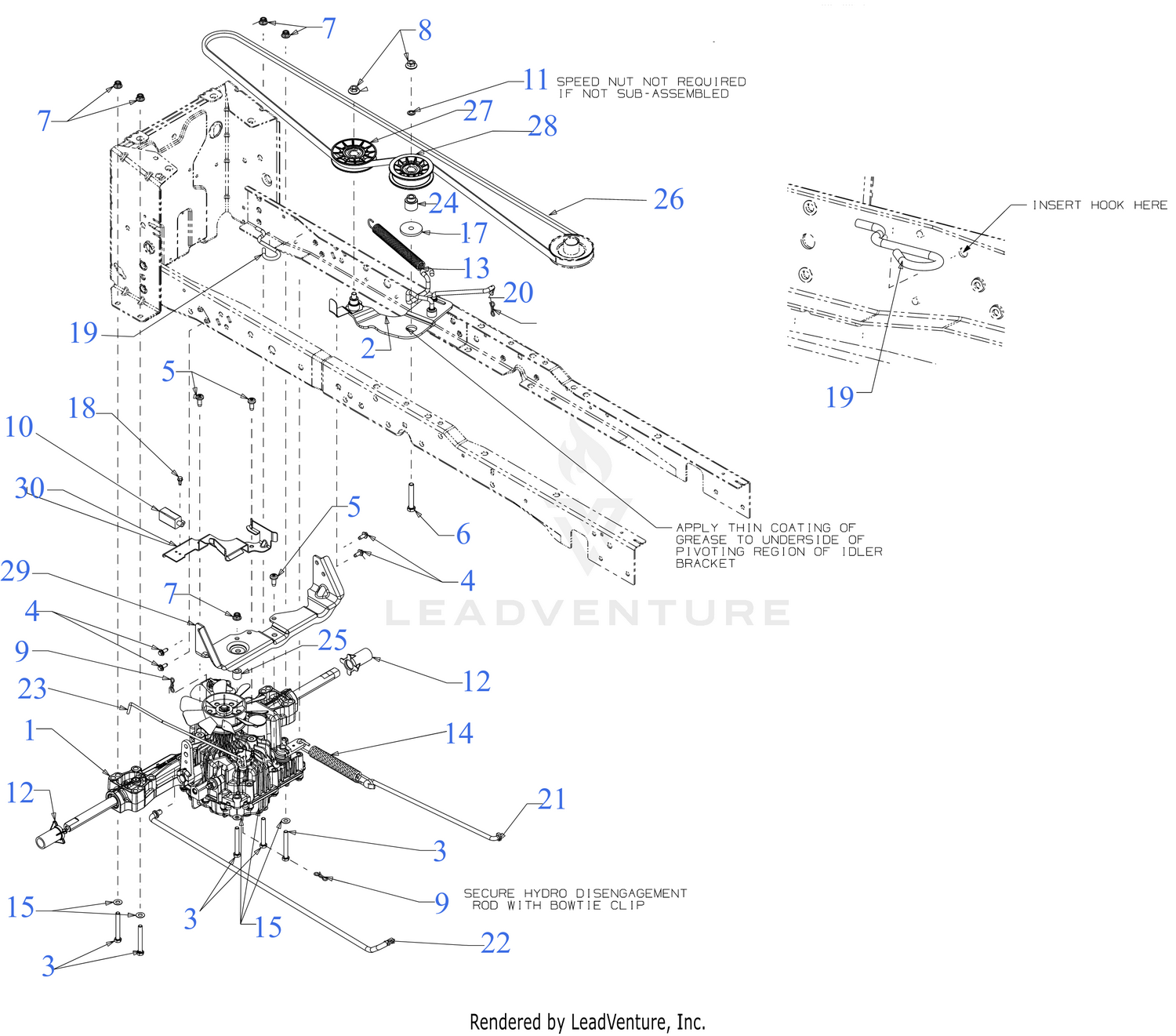

| Ref | Part Number | Description |
|---|
| 2 |
983-05090A |
IDLER BRACKET ASSEMBLY Price: $64.53 |
| 3 |
710-0378 |
SCREW 5/16-18 x 2.5 GR 5 Price: $4.09 |
| 4 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 5 |
710-1611B |
SCREW 5/16-18 x .750 Price: $5.94 |
| 6 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 7 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 8 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 9 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 10 |
725-04363 |
INTERLOCK SWITCH (NO/NC) Price: $13.25 |
| 11 |
726-0201 |
PUSH NUT Price: $6.01 |
| 12 |
731-08237 |
AXLE SLEEVE .765 ID x 2.11 LG Price: $3.49 |
| 13 |
732-05108A |
EXTENSION SPRING .790 DIA x 8.41 Price: $11.41 |
| 14 |
732-05146 |
EXTENSION SPRING 0.90 DIA x 8.14 Price: $11.07 |
| 15 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 17 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 18 |
738-04237A |
SHOULDER SCREW Price: $5.30 |
| 19 |
747-05608A |
DECK SPRING HOOK Price: $2.94 |
| 20 |
747-06193B |
IDLER BRACKET ROD Price: $10.13 |
| 21 |
747-06251C |
BRAKE ROD Price: $11.23 |
| 22 |
747-06281B |
HYDRO CONTROL ROD Price: $16.02 |
| 23 |
747-06447 |
HYDRO DISENGAGEMENT ROD Price: $7.35 |
| 24 |
748-05037B |
SHOULDER SPACER Price: $4.64 |
| 25 |
750-06201 |
SPACER .34 x .75 x .63 LG Price: $3.66 |
| 26 |
954-05027B |
V-BELT A SEC x 90.90 Price: $59.35 |
| 27 |
756-05024 |
V-IDLER PULLEY 3.56 OD Price: $22.11 |
| 28 |
756-05032 |
FLAT IDLER PULLEY 3.00 OD Price: $23.03 |
