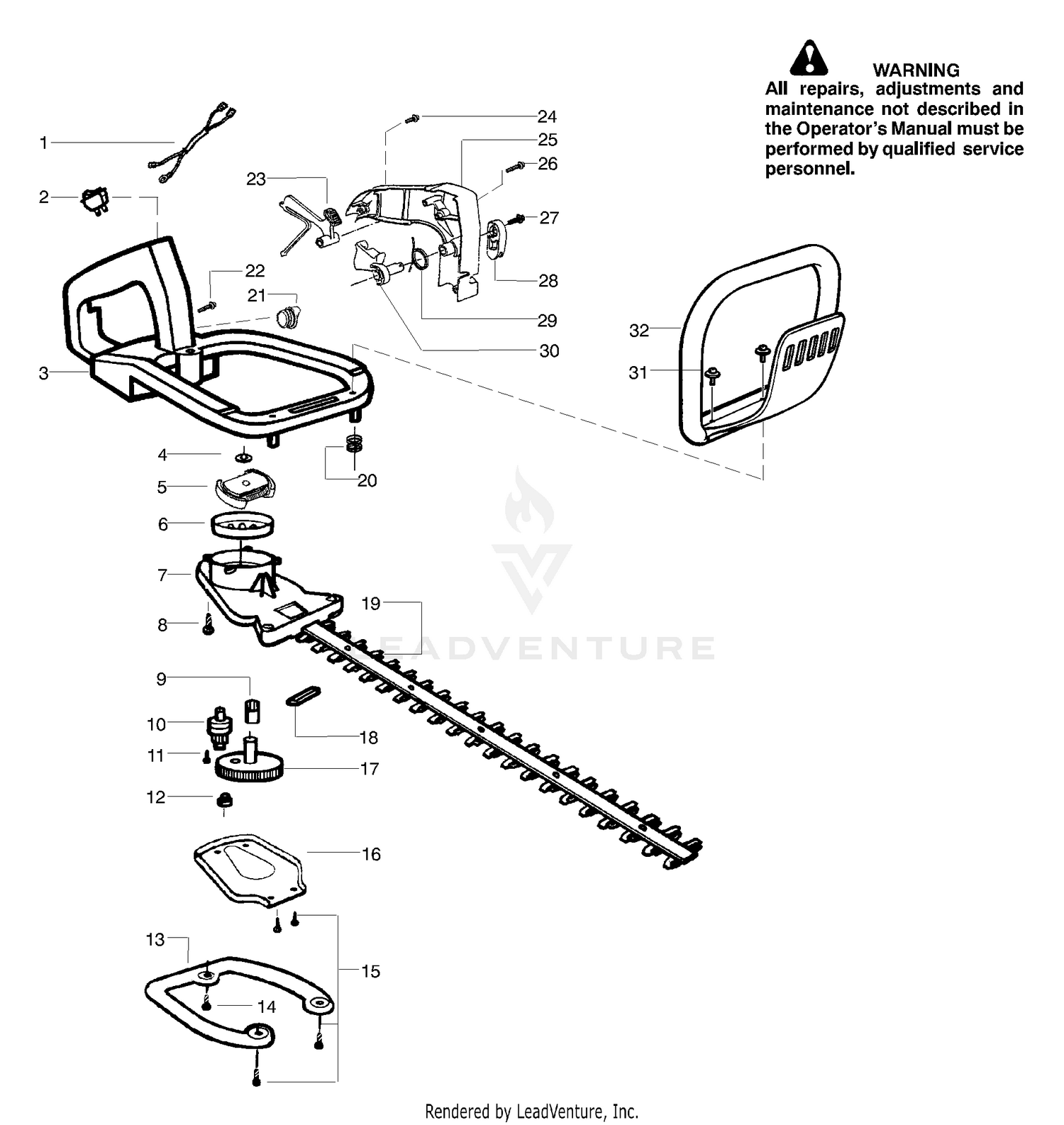

Handle & Blade Assembly Type 2,3,4
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 530029954 | Switch-Ignition Price: $4.99 |
| 3 | 530071655 | HANDLE This part replaces 530071656. Price: $24.99 |
| 4 | 530015828 | Washer-Clutch Price: $1.99 |
| 5 | 530014396 | Kit-Clutch Assy. Price: $14.99 |
| 6 | 10-7050 | TRACTION PUMP HUB *R Price: $74.82 |
| 6 | 530056069 | Assy-Drum Price: $24.99 |
| 7 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 8 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 8 | 530015886 | Screw Price: $1.99 |
| 9 | 530016013 | Bearing-Gear Price: $2.99 |
| 10 | 530096009 | Assy-Pinion Price: $14.99 |
| 11 | 530015805 | Screw Price: $1.99 |
| 12 | 530032121 | Bushing-Blade Price: $2.99 |
| 13 | 530036046 | Plate-Isolator Price: $4.99 |
| 14 | 530015849 | Screw Price: $1.99 |
| 15 | 530015934 | Screw Price: $1.99 |
| 16 | 530029916 | Cover-Gear Box Plate Price: $2.99 |
| 18 | 530029948 | Seal-Blade (Felt) Price: $1.99 |
| 19 | 530403228 | Assy-Blade 19" Price: $29.99 |
| 20 | 530029946 | Spring Price: $1.99 |
| 21 | 577858601 | FUEL CAP ASSY W/RET LW PRM This part replaces 530014871. Price: $3.99 |
| 22 | 530015770 | Screw Price: Call Us |
| 23 | 530053900 | Lockout-Throttle Price: $1.99 |
| 24 | 530015934 | Screw Price: $1.99 |
| 25 | 530038305 | Cover-Handle Price: $2.99 |
| 26 | 530015940 | Screw Price: $1.99 |
| 27 | 530015775 | Screw Price: $1.99 |
| 28 | 530029958 | Lever-Trigger Price: $1.99 |
| 29 | 530036123 | Spring-Trigger Price: $1.99 |
| 30 | 530053884 | Trigger Price: $1.99 |
| 31 | 530015955 | Screw Price: $1.99 |
