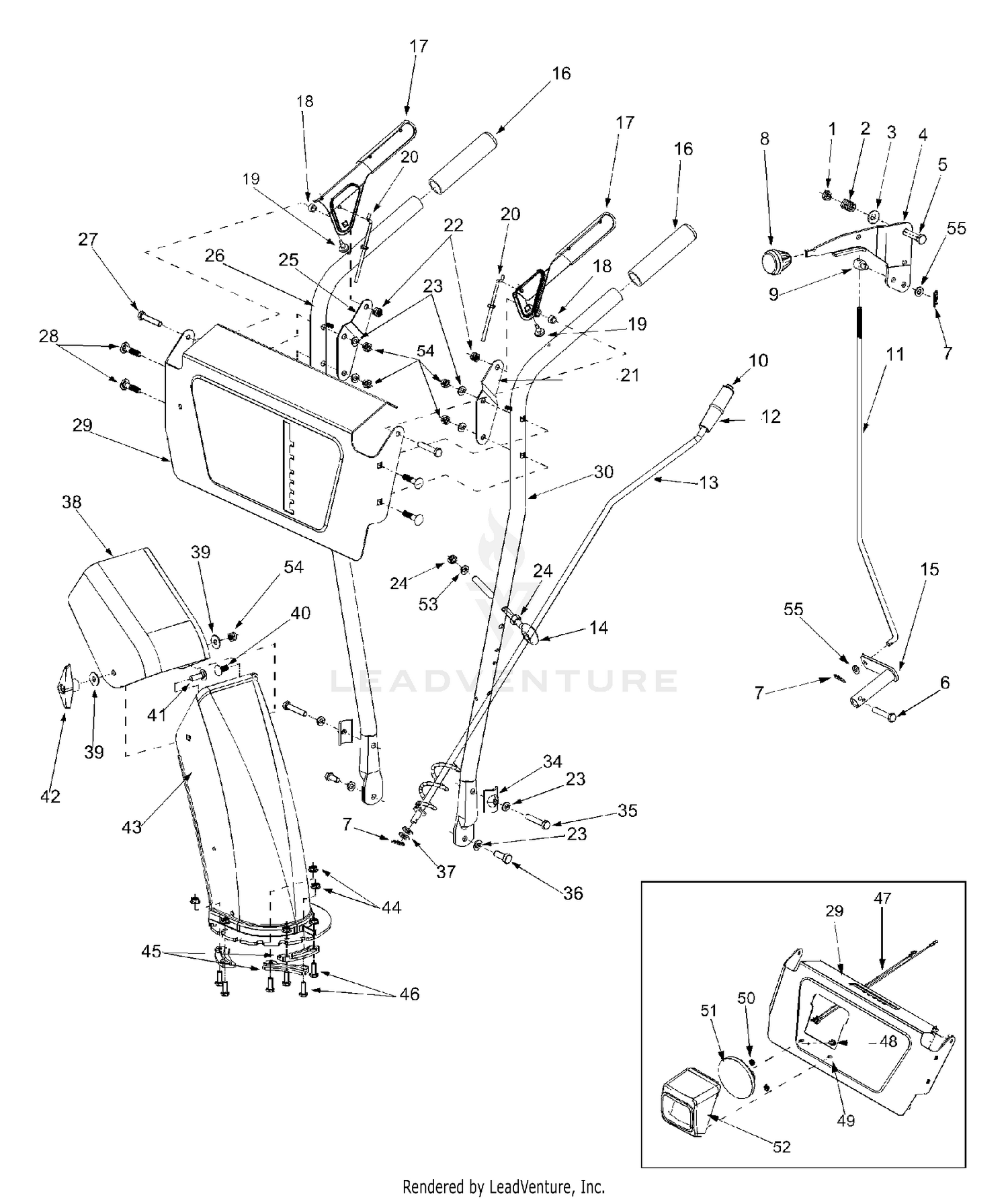

| Ref | Part Number | Description |
|---|
| 1 |
712-0116 |
Jam Lock Nut 3/8-24 Price: $3.95 |
| 2 |
732-0193 |
Compression Spring Price: $4.11 |
| 3 |
736-0105 |
Bell Washer Price: $3.96 |
| 4 |
753-05395 |
KIT-SHIFT HANDLE:S Not Available This part replaces 784-5619A. Price: |
| 5 |
710-0459A |
Hex Cap Screw 3/8-24 Price: $6.50 |
| 6 |
710-0788 |
Tap Screw 1/4-20 Price: $6.20 |
| 7 |
714-0104 |
Cotter Pin Price: $3.90 |
| 8 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 9 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 10 |
726-0100 |
Push Cap Price: $3.75 |
| 11 |
747-0921 |
SHIFT ASSEMBLY ROD Not Available Price: |
| 12 |
720-0201A |
Chute Knob Price: $9.62 |
| 13 |
984-0022 |
Chute Crank Ass'y This part replaces 705-5204A. Price: $87.11 |
| 14 |
747-0697 |
EYEBOLT Not Available Price: |
| 15 |
684-0008A-0637 |
SHIFT ARM ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-0008A. Price: |
| 16 |
720-0274 |
Grip Price: $9.99 |
| 17 |
705-5233A |
CLUTCH LEVER (LH) Not Available Price: |
| 18 |
750-1032 |
SPACER Not Available Price: |
| 19 |
735-0199A |
Rubber Bumper Price: $6.89 |
| 20 |
946-0778 |
Cable "Z" Fitting This part replaces 746-0778. Price: $9.14 |
| 21 |
705-5275 |
PANEL SUPPORT BRACKET (LH) Not Available Price: |
| 22 |
712-0429 |
Lock Hex Nut 5/16-18 Price: $3.56 |
| 23 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 24 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 25 |
705-5274 |
PANEL SUPPORT BRACKET (RH) Not Available Price: |
| 26 |
749-0910C-0637 |
HANDLE (RH) Not Available This part replaces 749-0910C. Price: |
| 27 |
710-3103 |
Hex Cap Screw 5/16-18 x 2.0 Price: $4.02 |
| 28 |
710-0262 |
Carriage Bolt 5/16-18 x 1.50 Price: $3.66 |
| 29 |
684-0105 |
CONTROL PANEL ASSEMBLY Not Available Price: |
| 30 |
749-0911C |
HANDLE (LH) Not Available Price: |
| 34 |
984-5599 |
Handle Tab This part replaces 784-5599. Price: $3.58 |
| 35 |
710-3259 |
SCREW 5/16-18 x 1.75 GR5 Not Available Price: |
| 36 |
710-1880 |
Hex Cap Screw 5/16-18 x .75 Price: $4.02 |
| 37 |
736-0185 |
Flat Washer Price: $3.43 |
| 38 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-0921. Price: $17.04 |
| 40 |
710-0451 |
Carriage Bolt 5/16-18 x .75 Price: $3.53 |
| 41 |
710-0276 |
Carriage Screw 5/16-18 x 1.0 Price: $3.68 |
| 42 |
720-0284 |
Knob Price: $4.08 |
| 43 |
731-1300E |
Lower Chute This part replaces 731-1300A. Price: $49.82 |
| 44 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 45 |
731-0851A |
Flange Keeper Price: $3.90 |
| 46 |
710-3015 |
Hex Cap Screw 1/4-20 x .75 Price: $3.65 |
| 47 |
929-0058B |
LIGHT HARNESS ASSEMBLY Not Available This part replaces 629-0058. Price: |
| 48 |
710-1652 |
Hex Tap Screw 1/4-20 x .625 Price: $3.86 |
| 49 |
710-04669 |
Special Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 50 |
712-0415 |
SELF TAPP NUT Not Available Price: |
| 51 |
925-1300 |
HEADLIGHT Not Available This part replaces 725-1300. Price: |
| 52 |
731-1317 |
HEAD LIGHT BEZEL Not Available Price: |
| 53 |
736-0242 |
Bell Washer Price: $3.75 |
| 54 |
712-3009 |
Hex L-Nut 5/16-18 Thd. This part replaces 712-3068. Price: $5.99 |
