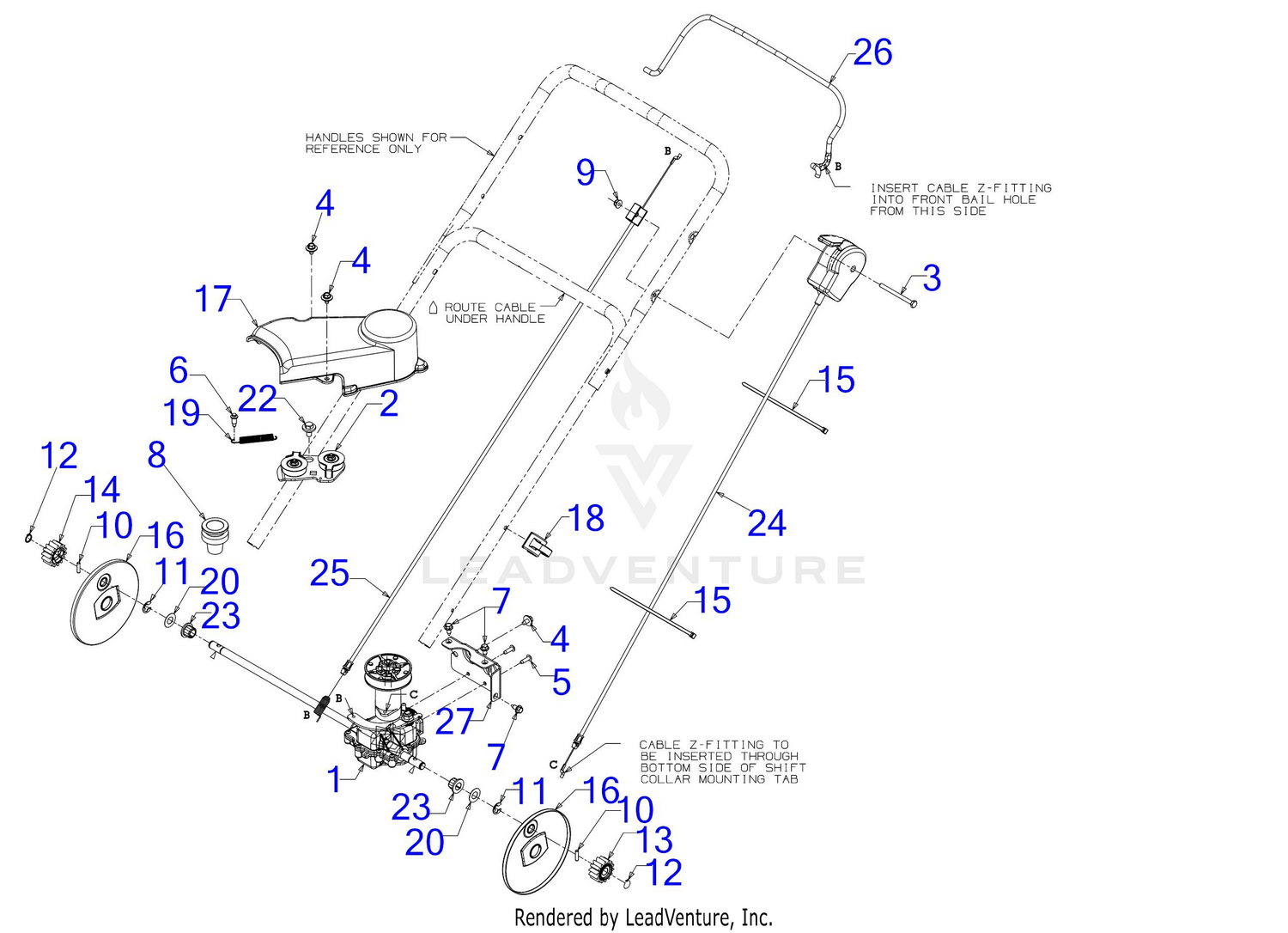

| Ref | Part Number | Description |
|---|
| 3 |
710-04370 |
SCREW 1/4-20 x 3.0 GR5 Price: $3.66 |
| 4 |
710-05073 |
SCREW 1/4-20 x .50 Price: $3.52 |
| 5 |
710-1220 |
SCREW #12-16 x .750 Price: $3.96 |
| 6 |
710-1650 |
SCREW .30 x .46 Price: $4.22 |
| 7 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 8 |
911-04245 |
IMPELLER INSERT HUB Price: $62.73 |
| 9 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 10 |
915-0221 |
DOWEL PIN Price: $3.93 |
| 11 |
916-0104 |
E-RING FOR .500 Price: $3.37 |
| 12 |
716-0865 |
SNAP RING FOR .500 Price: $3.86 |
| 13 |
717-1761 |
SPUR GEAR 14T (LH) Price: $12.11 |
| 14 |
717-1762 |
SPUR GEAR 14T (RH) Price: $12.11 |
| 16 |
731-04643 |
DUST WHEEL COVER Price: $7.28 |
| 17 |
731-04879 |
BELT COVER Price: $25.11 |
| 18 |
731-1820 |
CABLE GUIDE Price: $7.65 |
| 19 |
732-04217 |
EXTENSION SPRING Price: $9.16 |
| 20 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
| 22 |
738-0930 |
SHOULDER SCREW .560X.165: 5/16-18 Price: $6.07 |
| 23 |
741-04108 |
HEX FLANGE BEARING .506ID x .590LG Price: $5.20 |
| 24 |
946-04155A |
SPEED CONTROL CABLE Price: $80.81 |
| 25 |
746P04156 |
CONTROL CABLE This part replaces 746-04156. Price: $37.56 |
| 26 |
747-04305B |
GULLWING DRIVE BAIL- RED Price: $35.40 |
