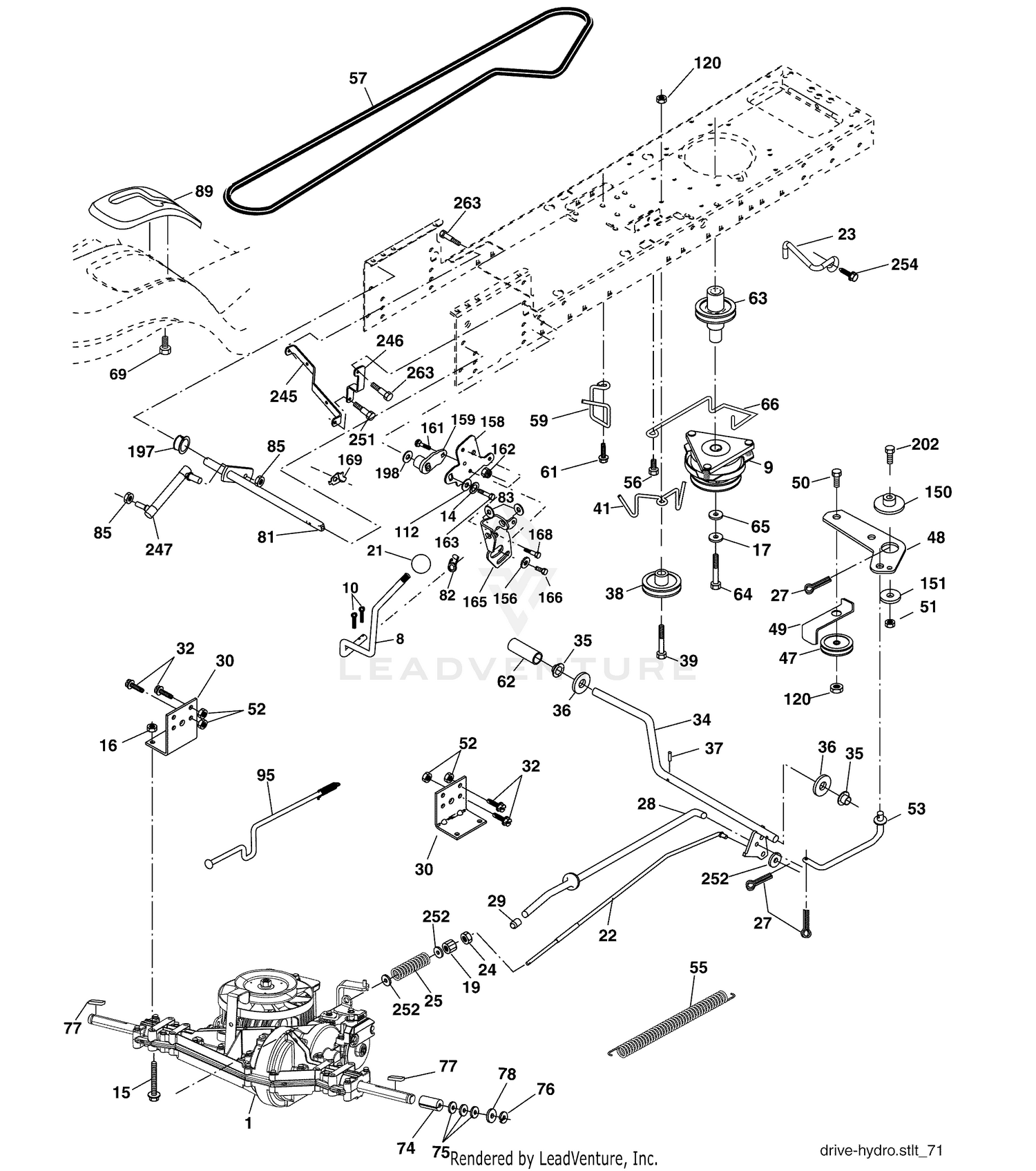

| Ref | Part Number | Description |
|---|
| 1 |
322-1 |
SCREW-HH Price: $0.22 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 3 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 4 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 6 |
105-3822 |
HYD CYLINDER ASM This part replaces 83-2580. Price: $533.45 |
| 7 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 8 |
532192502 |
ROD.SHIFT.FENDER.ADJ.STLT Price: $19.99 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532179334. Price: $329.99 |
| 10 |
5-1226 |
WASHER Price: $3.90 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 12 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 14 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
3-1506 |
BUSHING Price: $2.42 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 17 |
532126197 |
WASHER Price: $6.99 |
| 18 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 19 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 21 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 22 |
532178141 |
ROD.BRAKE Price: $19.99 |
| 23 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
532190736 |
BRACKET, ANTI-ROTATION Price: $24.99 |
| 24 |
136-8484 |
FRAME-PULL, LH This part replaces 92-9176. Price: $382.66 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 29 |
62-2460 |
LIFT ARM ASM Price: $130.13 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 30 |
62-2390-01 |
BAR-LH LIFT ARM This part replaces 62-2390. Price: $109.59 |
| 31 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 32 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 34 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
237-78 |
O-RING Price: $3.85 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 39 |
63-3850 |
HOSE ASM Price: $83.26 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
532178138 |
V-BELT DRIVE Price: $49.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 61 |
817490614 |
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 This part replaces 817120614. Price: $3.20 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532174607 |
PULLEY- ENGINE Price: $44.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532178139 |
SHAFT ASM Price: $19.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 85 |
532150360 |
NUT LOCK CENTER 1/4 -28 FNTHD Price: $2.99 |
| 89 |
532192387 |
CONSOLE, SHIFT,STL,AUTO,GRAY This part replaces 532194810. Price: $8.99 |
| 95 |
532178134 |
DISCONNECT.ASM.ROD.BYPASS Price: $32.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 202 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 245 |
532178122 |
STRAP, TORQUE Price: $19.99 |
| 246 |
532178121 |
STRAP, TORQUE Price: $17.99 |
| 247 |
583112701 |
LINK.SHFT.TRANSAXLE.LTH2000 This part replaces 532181462. Price: $44.99 |
| 251 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 252 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 254 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
