| Ref | Part Number | Description |
|---|
| 1 |
3269-5 |
RIVET-POP Price: $1.29 |
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
95-8707 |
COVER-DASH Price: $194.77 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 3 |
95-8763 |
BRACKET-HOLD DOWN, COVER Price: $13.94 |
| 4 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 6 |
95-8764-0P |
SUPPORT-MAGNET This part replaces 95-8764-03. Price: $35.03 |
| 7 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 8 |
95-8765 |
BRACKET-STRIKE, MAGNET Price: $9.32 |
| 9 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
874760612 |
BOLT Price: $3.99 |
| 13 |
95-8684 |
PAD-BUMPER Price: $27.13 |
| 14 |
3289-4 |
SCREW-FH Price: $3.27 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
104-4628 |
LINK-BRAKE, PARKING Price: $18.33 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 17 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 18 |
104-4817 |
LEVER-BRAKE Price: $143.45 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 19 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 20 |
32105-9 |
SCREW Price: $0.54 |
| 21 |
532406180 |

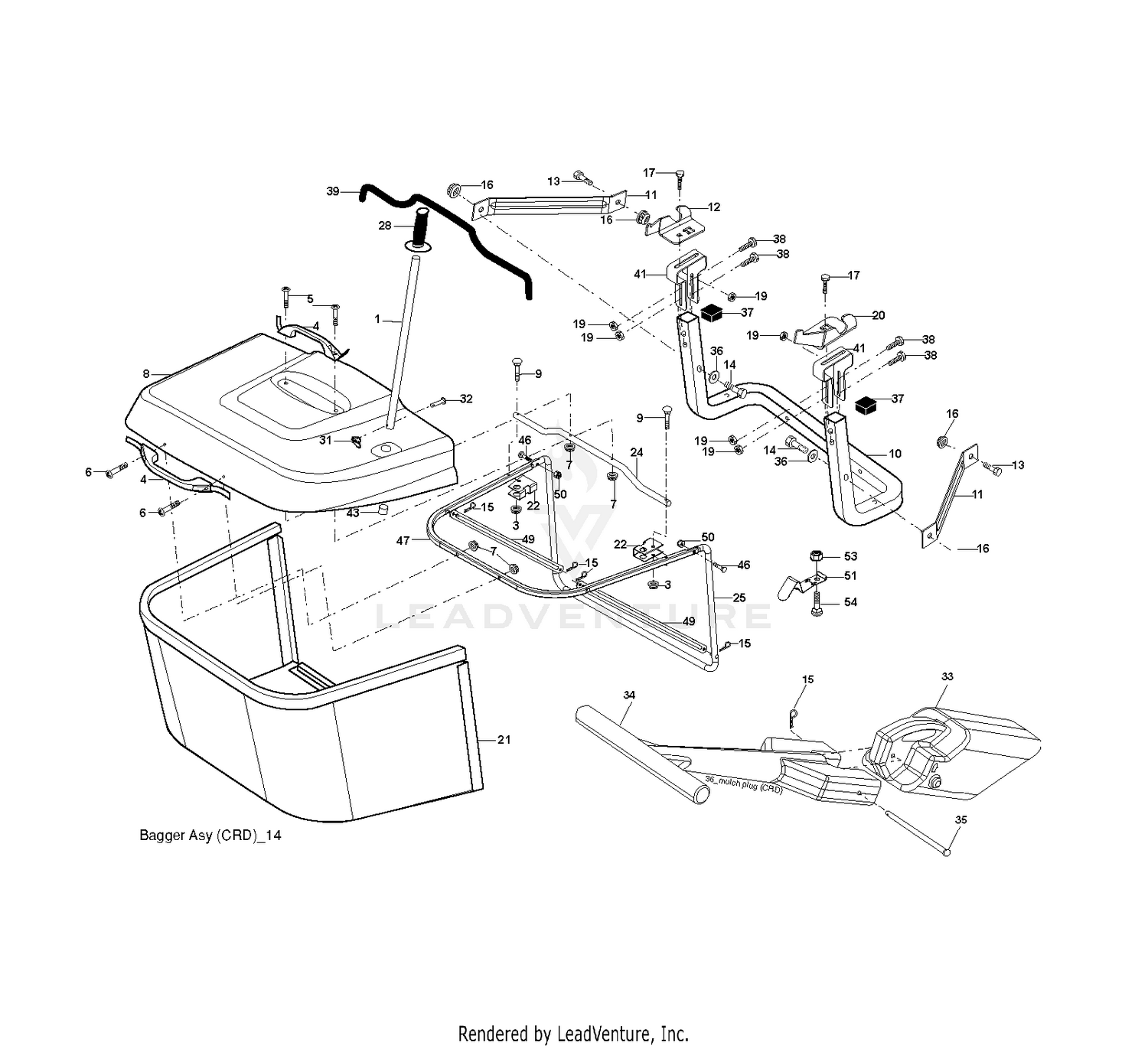

BAGGER.ASM.CRD.2007 Price: $129.99 |
| 21 |
95-8900 |
SWITCH Price: $95.42 |
| 22 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
3296-9 |
NUT-HEX Price: $0.25 |
| 24 |
321-10 |
SCREW-HH Price: $1.29 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
583211601 |
TUBE.FRONT.BAGGER.CRD This part replaces 532193705. Price: $84.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 46 |
873110510 |
NEEDS DESCRIPTION Price: Call Us |
| 47 |
583211501 |
TUBE.UPPER.BAGGER.CRD This part replaces 532193704. Price: $279.99 |
| 49 |
583208201 |
BAR.SPREADER.BAGGER.CRD This part replaces 532193305. Price: $12.99 |
| 50 |
872800500 |
NEEDS DESCRIPTION Price: Call Us |
| 51 |
529846601 |
SERVICE KIT LATCH.SPRING.BAGGE This part replaces 532199903. Price: $1.99 |
| 53 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 54 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
