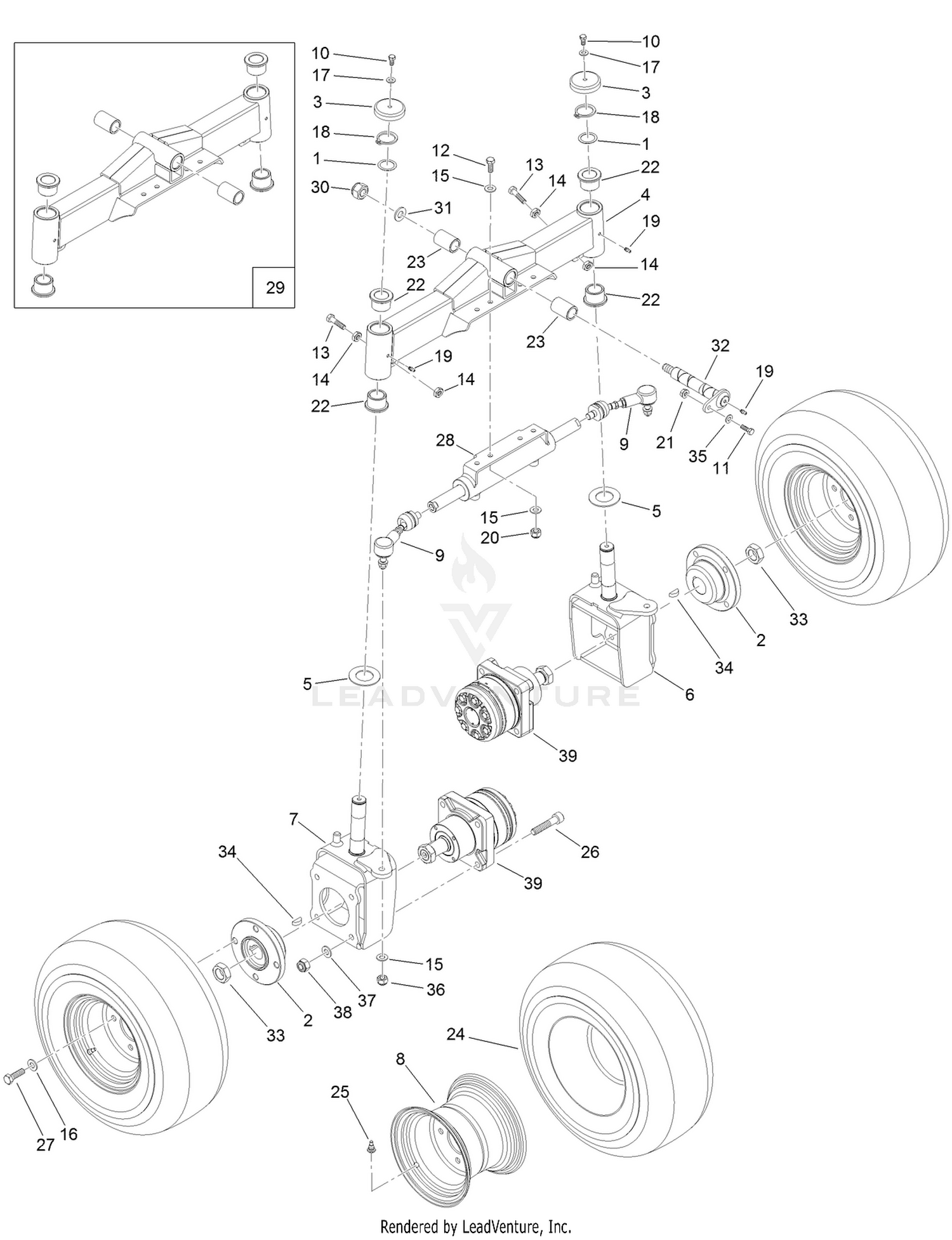

Rear Axle Assembly
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-4927 | SPACER Price: $2.07 |
| 2 | 134-0721 | FLANGE Price: $156.80 |
| 3 | 134-0723 | CAP Price: $11.64 |
| 4 | 134-0769 | AXLE-REAR Price: $253.75 |
| 5 | 134-0770 | WASHER Price: $4.63 |
| 6 | 134-0774 | FORK Price: $152.33 |
| 7 | 134-0775 | FORK Price: $149.56 |
| 8 | 134-0818 | RIM-WHEEL, REAR Price: $83.18 |
| 9 | 134-0860 | ARTICULATION Price: $95.82 |
| 10 | 134-1010 | SCREW Price: $0.32 |
| 11 | 134-1015 | SCREW Price: $0.46 |
| 12 | 134-1018 | SCREW Price: $0.78 |
| 13 | 134-1030 | SCREW Price: $1.10 |
| 14 | 134-1043 | NUT Price: $0.32 |
| 15 | 134-1046 | WASHER Price: $0.25 |
| 16 | 134-1047 | WASHER Price: $0.25 |
| 17 | 134-1054 | WASHER Price: $0.32 |
| 18 | 134-1061 | RING-RETAINING, INT Price: $0.95 |
| 19 | 134-1065 | FITTING-GREASE Price: $1.22 |
| 20 | 134-1079 | NUT Price: $0.42 |
| 21 | 134-1082 | NUT Price: $0.36 |
| 22 | 134-1188 | BUSHING Price: $34.91 |
| 23 | 134-1189 | BUSHING Price: $16.37 |
| 24 | 134-1230 | TIRE-REAR Price: $109.60 |
| 25 | 134-1261 | VALVE-TIRE Price: $2.22 |
| 26 | 134-1298 | SCREW Price: $2.22 |
| 27 | 134-1305 | SCREW Price: $3.52 |
| 28 | 134-0657 | PISTON-STEERING Price: $368.96 |
| 29 | 134-3104 | REAR AXLE Price: $411.63 |
| 30 | 134-3105 | NUT Price: $1.79 |
| 31 | 134-2962 | WASHER Price: $0.27 |
| 32 | 134-3106 | PIN Price: $86.30 |
| 33 | 134-2967 | NUT This part replaces 134-3107. Price: $37.89 |
| 34 | 134-2970 | FEATHER KEY This part replaces 134-3108. Price: $4.50 |
| 35 | 134-1045 | WASHER Price: $0.25 |
| 36 | 134-3110 | NUT Price: $0.77 |
| 37 | 134-0591 | WASHER Price: $0.36 |
| 38 | 134-0561 | NUT Price: $0.57 |
