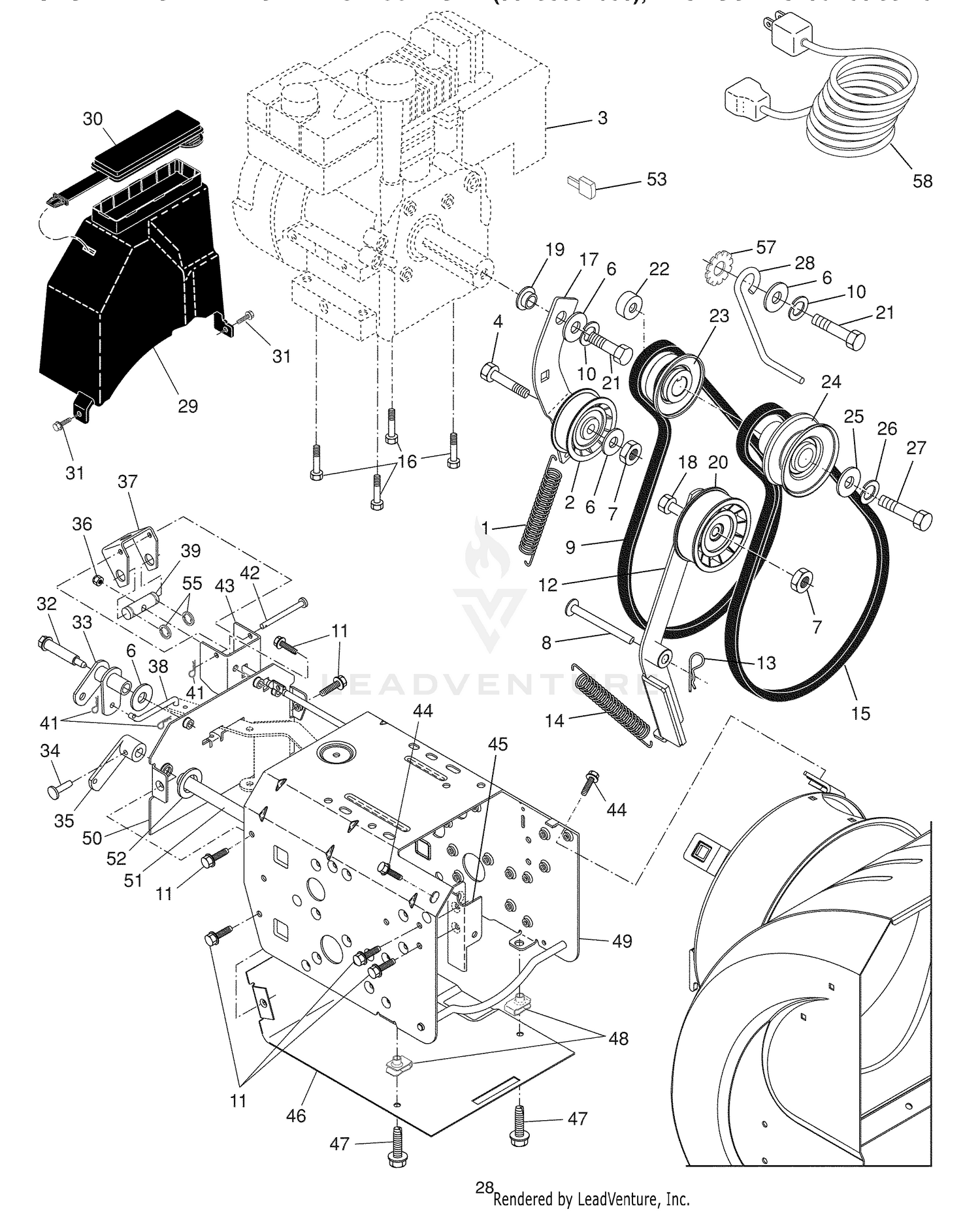

| Ref | Part Number | Description |
|---|
| 1 |
43-1911 |
FAN This part replaces 43-1910. Price: $152.80 |
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
42-9070 |
PULLEY K9674051 F/W Price: $138.23 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 3 |
53-8680 |
DISCONTINUED Price: Call Us |
| 4 |
32120-10 |
RING-SNAP Price: $1.29 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
36-7290 |
BEARING Price: $40.48 |
| 6 |
322-4 |
SCREW-HH Price: $0.35 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 7 |
66-2390 |
HUB WA *B Price: $91.84 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
532416954 |
V-BELT.TRACTION This part replaces 532179092. Price: $27.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 10 |
66-2440 |
DISCONTINUED Price: Call Us |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 11 |
63-7380 |
RESERVE TANK W/ENG Price: $114.51 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 14 |
63-6760 |
FITTING-CONNECTOR Price: $61.52 |
| 15 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 15 |
532408010 |
BELT.V.IMPELLER.DRIVE Price: $34.99 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 16 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 17 |
71-2910-03 |
RH REAR ENGINE ANGLE This part replaces 71-2910. Price: $22.46 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 18 |
98-7218 |
DISCONTINUED This part replaces 63-7060. Price: Call Us |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 19 |
66-2320-03 |
LH FRONT MOUNT ASM This part replaces 66-2320. Price: $62.36 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 22 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 23 |
71-1450 |
DISCONTINUED Price: Call Us |
| 24 |
532426491 |
PULLEY.IMPELER. This part replaces 532179157. Price: $14.99 |
| 24 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 26 |
323-8 |
SCREW-HH Price: $1.20 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 28 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 29 |
92-8879 |
V-BELT This part replaces 63-7130. Price: $34.52 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 30 |
70-8560 |
DISCONTINUED Price: Call Us |
| 31 |
52-2340 |
PIVOT ARM SPACER Price: $11.14 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 32 |
67-4700 |
GLOW LAMP This part replaces 66-8700. Price: $117.35 |
| 33 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 33 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $3.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 36 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 37 |
321-3 |
SCREW-HH Price: $0.28 |
| 37 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 38 |
5-3637 |
SPACER Price: $2.23 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 39 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 40 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
57-6390 |
NUT-JAM Price: $0.89 |
| 42 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 43 |
48-7680 |
SCREW-HH Price: $0.61 |
| 43 |
532415450 |
PLATE.SHIFTER.BZP Price: $6.99 |
| 44 |
71-1520 |
RESERVOIR CAP Price: $21.69 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 46 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $19.99 |
| 47 |
3217-5 |
NUT-HEX Price: $0.25 |
| 47 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 48 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 49 |
532415340 |
FRAME.WELD.PNT.003BGP Price: $50.99 |
| 50 |
532416921 |
PLATE.REAR.SNOW.PNT.ORANGE Price: $11.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
531300340 |
KEY, TECUMSEH ENGINE This part replaces 532035062. Price: $10.00 |
| 55 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
