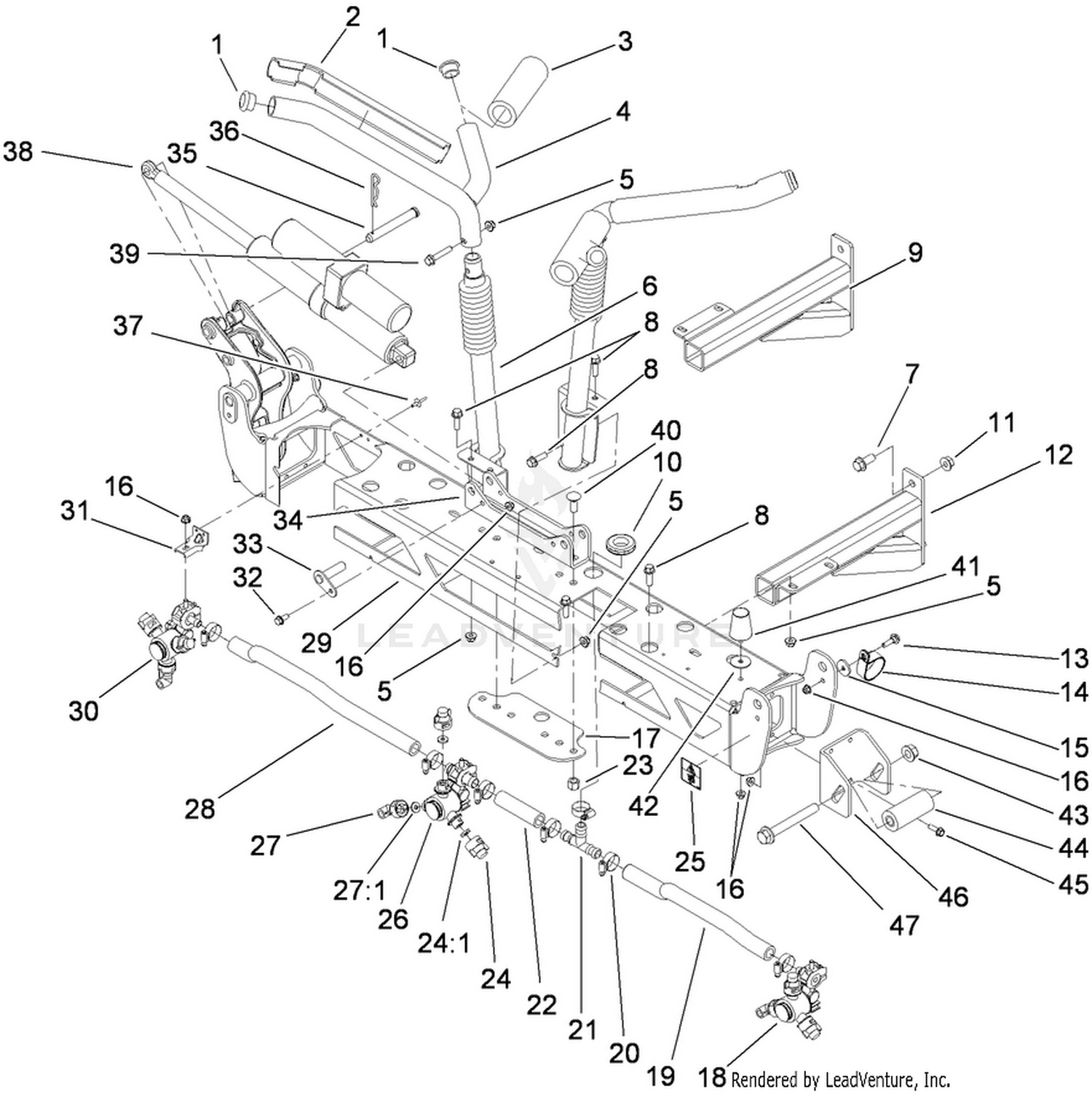

Center Boom Assembly
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-3489 | CAP-TUBE Price: $3.25 |
| 2 | 108-3495 | COVER-SLIDE Price: $98.16 |
| 3 | 108-3457 | SPACER Price: $21.03 |
| 4 | 108-3476-03 | CRADLE-UPPER Price: $84.74 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 161-4174 | CRADLE ASM This part replaces 108-3472-03. Price: $56.88 |
| 7 | 110-5057 | CAPSCREW-HHF Price: $2.71 |
| 8 | 110-5050 | SCREW-HHF Price: $2.59 |
| 9 | 108-3408-03 | SEE PB # 962 Price: Call Us |
| 10 | 108-3723 | GROMMET Price: $6.89 |
| 11 | 108-3745 | NUT-HHF, WHIZ Price: $1.15 |
| 12 | 108-3409-03 | SEE PB # 962 Price: Call Us |
| 13 | 108-3744 | SCREW-SHOULDER Price: $9.60 |
| 14 | 114-9566 | CLAMP-R Price: $2.78 |
| 15 | 108-3743 | WASHER Price: $2.31 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 108-3469-03 | PLATE-WASHER Price: $35.72 |
| 18 | 108-3726 | RH SINGLE BODY TURRET ASM Price: $57.64 |
| 19 | 108-3718 | HOSE-BOOM, CENTER (RH) Price: $43.48 |
| 20 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 21 | 108-3439 | TEE Price: $10.76 |
| 22 | 108-3717 | HOSE-BOOM Price: $25.69 |
| 23 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 24 | 95-9187 | CAP-BLANK Price: $10.69 |
| 25 | 114-9576 | DECAL-PINCHPOINT Price: $8.29 |
| 26 | 108-3727 | DOUBLE TURRET BODY ASM Price: $57.64 |
| 27 | 95-9186 | CAP Price: $7.89 |
| 28 | 108-3735 | HOSE-BOOM, CENTER (LH) Price: $43.48 |
| 29 | 121-5094 | FRAME ASM This part replaces 114-9579-03. Price: $902.34 |
| 30 | 108-3725 | LH SINGLE BODY TURRET ASM Price: $57.64 |
| 31 | 107-8775 | BRACKET-MOUNT, NOZZLE Price: $56.17 |
| 32 | 110-5053 | SCREW-HHF Price: $0.88 |
| 33 | 112-7884 | PIN-PIVOT Price: $20.16 |
| 34 | 114-9560-03 | STRAP-CLEVIS Price: $52.84 |
| 35 | 108-3436 | PIN-CLEVIS Price: $44.88 |
| 36 | 3290-468 | PIN-COTTER Price: $0.95 |
| 37 | 3269-18 | RIVET-BLIND Price: $1.15 |
| 38 | 108-3438 | ACTUATOR Price: $2,801.86 |
| 39 | 108-3742 | SCREW-HHF Price: $1.90 |
| 40 | 110-5067 | SCREW-CARR Price: $2.17 |
| 41 | 110-5070 | BUMPER Price: $10.00 |
| 42 | 3256-68 | WASHER-FLAT Price: $2.69 |
| 43 | 32128-54 | NUT-HF Price: $5.25 |
| 44 | 112-7881 | BUMPER Price: $67.10 |
| 45 | 108-3748 | SCREW-HHF Price: $1.90 |
| 46 | 112-7872-03 | BRACKET-HARD STOP Price: $45.57 |
