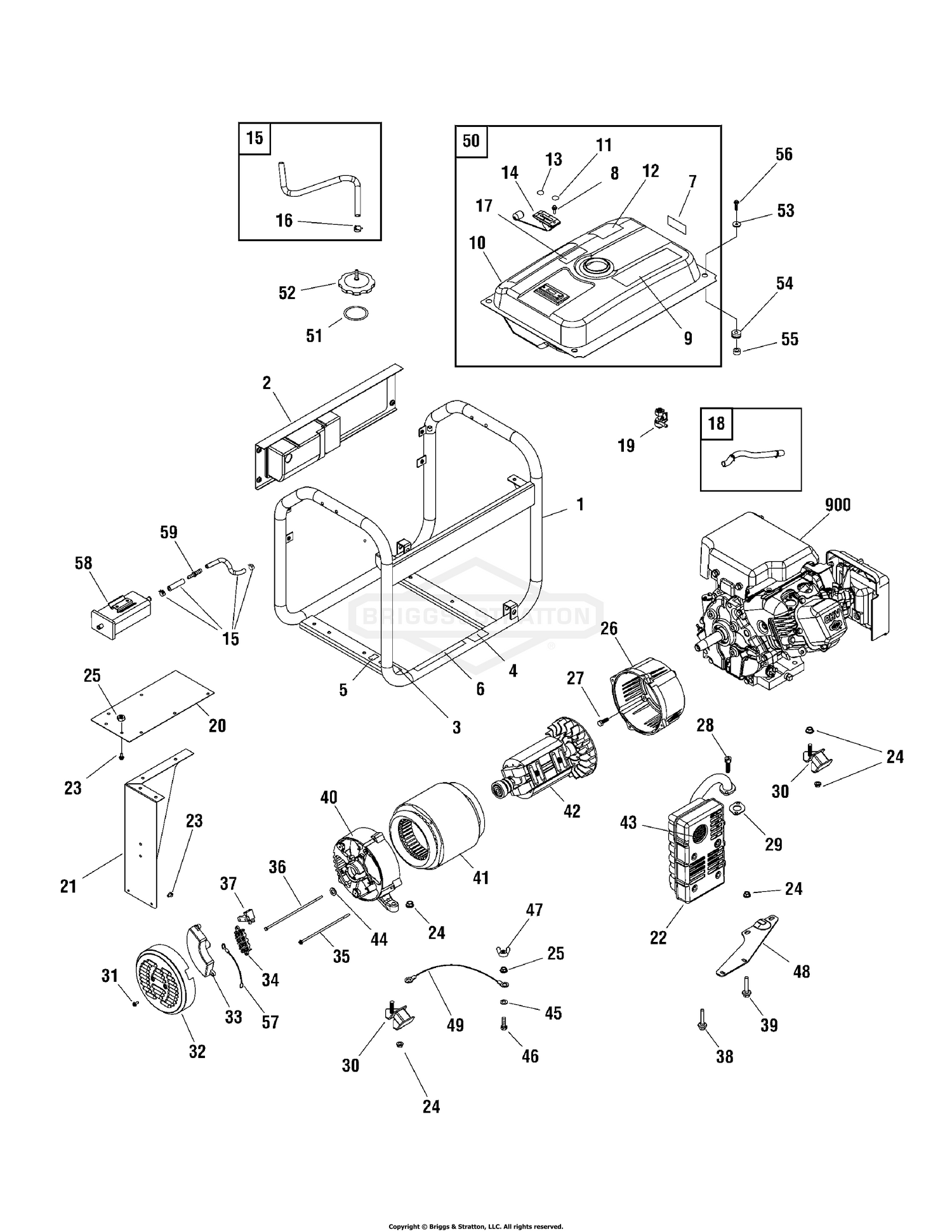

Main Unit (318172)
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 318163GS | CRADLE Price: $419.99 |
| 2 | 318171GS | CONTROL PANEL ASSEMBLY Price: $164.99 |
| 3 | 200311GS | DECAL Price: $6.99 |
| 4 | 208834GS | DECAL Price: $9.79 |
| 5 | B4986GS | DECAL Price: $2.75 |
| 6 | 200310GS | DECAL Price: $14.83 |
| 7 | 197798GS | DECAL Price: $7.89 |
| 9 | 194984GS | DECAL Price: $13.99 |
| 10 | 312572GS | DECAL Price: $6.49 |
| 11 | 313462GS | DECAL Price: $8.36 |
| 12 | 202997GS | DECAL Price: $12.80 |
| 13 | 313461GS | DECAL Price: $8.89 |
| 14 | 208124GS | GAUGE-FUEL Price: $8.39 |
| 15 | 315017GS | HOSE Price: $26.64 |
| 16 | 314955GS | CLAMP Price: $4.19 |
| 17 | 312728GS | DECAL Price: $8.39 |
| 19 | 209417GS | VALVE, Fuel Price: $7.75 |
| 20 | 318166GS | HEATSHIELD Price: $28.99 |
| 21 | 318177GS | HEATSHIELD Price: $46.99 |
| 22 | 188301GS | MUFFLER Price: $141.76 |
| 23 | 209775GS | BOLT Price: $4.07 |
| 26 | 704266 | ADAPTER-ENGINE Price: $81.99 |
| 27 | 209412GS | BOLT Price: $5.79 |
| 28 | 204885GS | SCREW Price: $2.25 |
| 29 | 692237 | GASKET-EXHAUST This part replaces 697815. Price: $4.82 |
| 30 | 706149 | MOUNT-VIBRATION This part replaces 209425GS. Price: $8.95 |
| 31 | 207824GS | SCREW Price: $3.73 |
| 32 | 313364GS | END COVER Price: $26.20 |
| 33 | 209420GS | VOLTAGE REGULATOR Price: $43.98 |
| 34 | 312041GS | TERMINAL BLOCK Price: $13.49 |
| 35 | 209427GS | BOLT Price: $7.09 |
| 36 | 313525GS | BOLT Price: $6.30 |
| 37 | 209441GS | BRUSH ASSY Price: $9.35 |
| 40 | 209423GS | CARRIER-BEARING Price: $120.36 |
| 41 | 318162GS | STATOR Price: $234.99 |
| 42 | 318164GS | ROTOR Price: $226.78 |
| 43 | 83083GS | SCREEN Price: $8.49 |
| 44 | 312045GS | WASHER Price: $2.99 |
| 46 | 84010594 | HANDLE This part replaces 47411GS. Price: $32.85 |
| 47 | 87680GS | NUT Price: $6.57 |
| 48 | 191785GS | BRACKET-MUFFLER Price: $7.85 |
| 49 | 312040GS | WIRE Price: $5.54 |
| 50 | 318168GS | TANK-FUEL Price: $289.99 |
| 51 | 318211GS | SEAL Price: $4.80 |
| 52 | 318167GS | CAP-FUEL Price: $27.99 |
| 53 | 312005GS | WASHER Price: $3.09 |
| 54 | 312006GS | GROMMET Price: $3.19 |
| 55 | 312010GS | SPACER Price: $2.99 |
| 57 | 318309GS | WIRE Price: $5.89 |
| 58 | 316783GS | CARBON CANISTER Price: $59.91 |
| 59 | 317025GS | BARB-HOSE Price: $6.79 |
