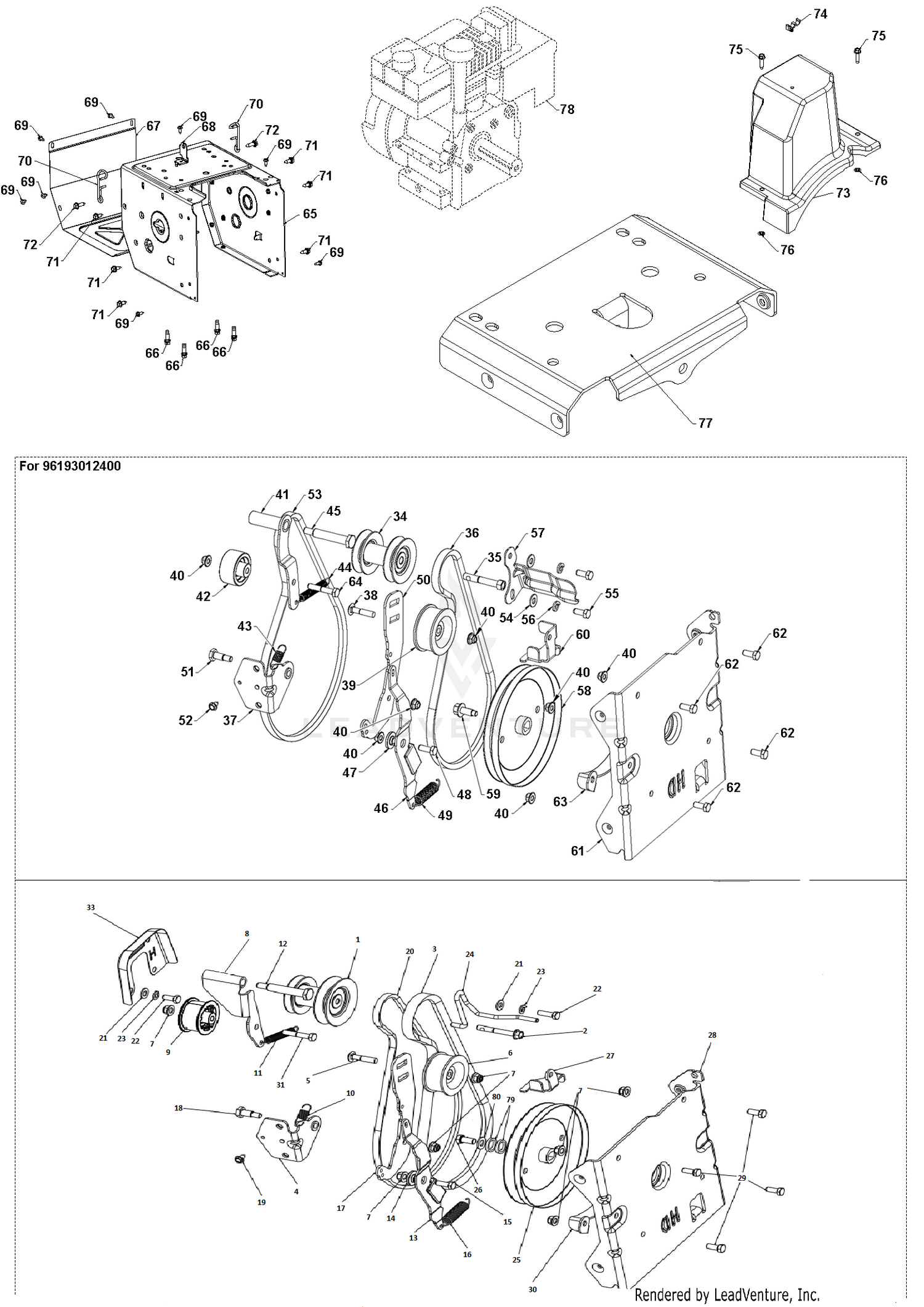

| Ref | Part Number | Description |
|---|
| 2 |
598758701 |
BOLTS Price: $1.99 |
| 3 |
589262602 |
BELT 5L 39.15L Price: $22.99 |
| 4 |
546125702 |
BRACKET.WELDMANT.IDLER ARM This part replaces 589263402. Price: $8.99 |
| 5 |
589284501 |
BOLT 5/16-18 CARRIAGE 1.5L Price: $5.99 |
| 6 |
589262702 |
Pulleys Price: $9.99 |
| 8 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA Price: $9.99 |
| 9 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ Price: $9.99 |
| 10 |
589263701 |
SPRING IDLER RETURN Price: $4.99 |
| 11 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 12 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 13 |
579763301 |
ARM IMPELLER BRAKE Price: $27.99 |
| 14 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 15 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ Price: $2.99 |
| 16 |
579763501 |
SPRING EXTENSION - BRAKE Price: $4.99 |
| 17 |
589262902 |
ARM IDLER BLACK ZINC Price: $9.99 |
| 18 |
589263601 |
SCREW HEX HEAD SHOULDER Price: $5.99 |
| 19 |
817060408 |
SCREW Price: $4.99 |
| 20 |
582640702 |
BELT 3L 39.68; POLY CORD Price: $6.99 |
| 22 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 25 |
589263801 |
PULLEY IMPELLER DD 5L HD Price: $29.99 |
| 27 |
589262505 |
GUIDE BZP Price: $5.99 |
| 28 |
501595403 |
NEEDS DESCRIPTION This part replaces 501595402. Price: $6.99 |
| 30 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 31 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 34 |
589262201 |
PULLEY WELDMENT Price: $24.99 |
| 35 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 36 |
589262602 |
BELT 5L 39.15L Price: $22.99 |
| 37 |
546125702 |
BRACKET.WELDMANT.IDLER ARM This part replaces 589263402. Price: $8.99 |
| 38 |
589284501 |
BOLT 5/16-18 CARRIAGE 1.5L Price: $5.99 |
| 39 |
589262702 |
Pulleys This part replaces 589262701. Price: $9.99 |
| 40 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 41 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 42 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER This part replaces 586880201. Price: $9.99 |
| 43 |
589263701 |
SPRING IDLER RETURN Price: $4.99 |
| 44 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 45 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 46 |
579763301 |
ARM IMPELLER BRAKE Price: $27.99 |
| 47 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 48 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 49 |
579763501 |
SPRING EXTENSION - BRAKE Price: $4.99 |
| 50 |
589262902 |
ARM IDLER BLACK ZINC Price: $9.99 |
| 51 |
589263601 |
SCREW HEX HEAD SHOULDER Price: $5.99 |
| 52 |
817060408 |
SCREW Price: $4.99 |
| 53 |
582640702 |
BELT 3L 39.68; POLY CORD Price: $6.99 |
| 54 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 55 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 56 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 57 |
589262401 |
GUIDE BELT - 3L FRICTION, 5L I Price: $6.99 |
| 58 |
589263801 |
PULLEY IMPELLER DD 5L HD Price: $29.99 |
| 59 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- This part replaces 583814901. Price: $3.99 |
| 60 |
589262505 |
GUIDE BZP Price: $5.99 |
| 61 |
501595403 |
NEEDS DESCRIPTION This part replaces 501595402. Price: $6.99 |
| 62 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 63 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 64 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 65 |
589264705 |
FRAME MS 668 Price: $99.99 |
| 66 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 67 |
580839505 |
COVER COVER.FRAME MS668 ORANGE Price: $49.99 |
| 68 |
501060403 |
BRACKET.SHIFTER.BZP Price: $6.99 |
| 69 |
582906901 |
SCREW.HEX HEAD W/COLLAR 1/4-20 Price: $2.99 |
| 70 |
588954501 |
WIREFORM.SUPPORT.CABLE Price: $6.99 |
| 71 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 72 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 585217501. Price: $2.99 |
| 73 |
585771101 |
COVER BELT, HIGH This part replaces 587105501. Price: $27.99 |
| 74 |
532145006 |
PUSH CLIP Price: $2.99 |
| 77 |
585546002 |
BRACKET.FRAME.SUP.LARGEENG.BLA Price: $44.99 |
