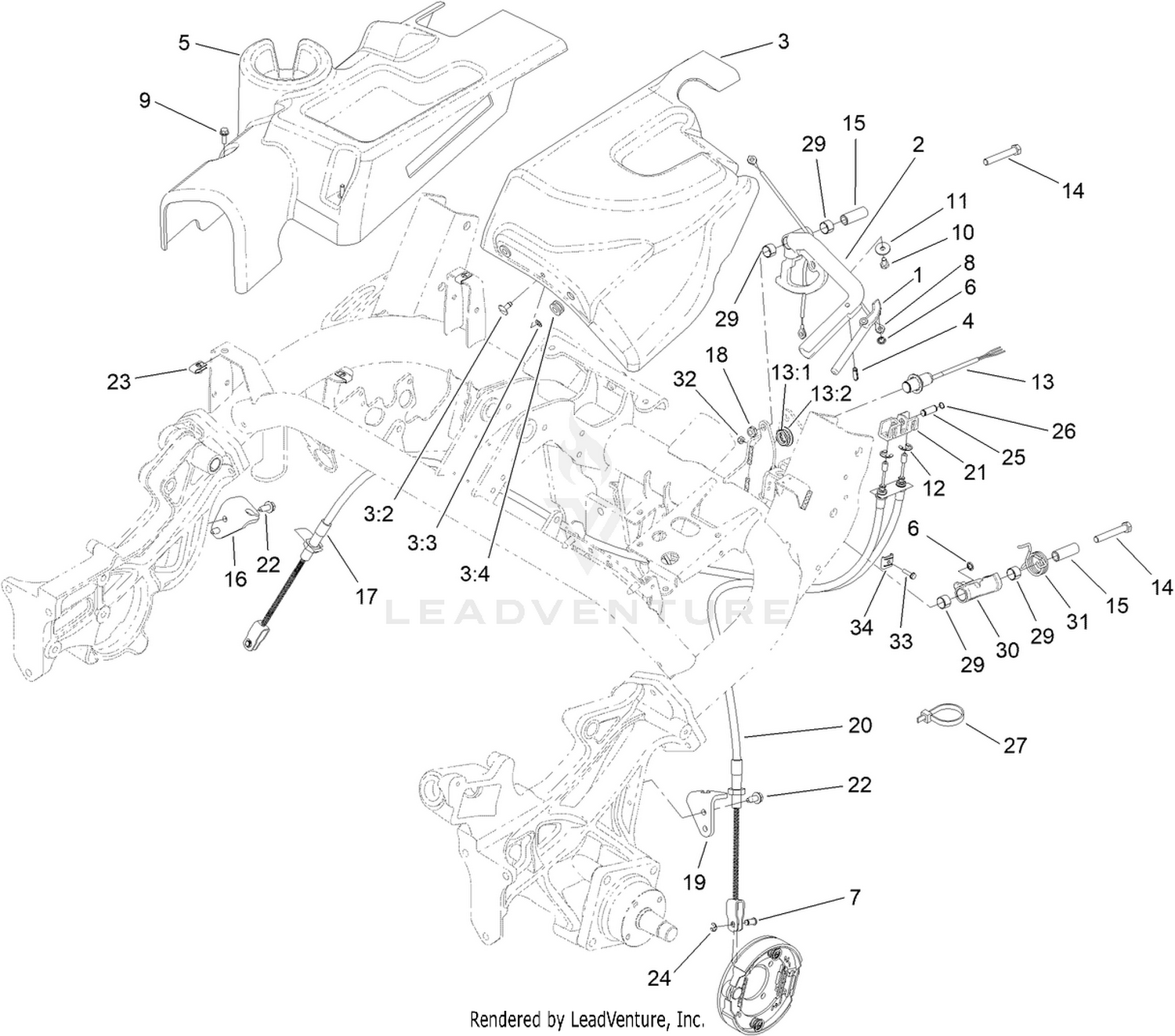

| Ref | Part Number | Description |
|---|
| 1 |
131-3003 |
LEVER-RELEASE Price: $33.33 |
| 2 |
131-3024 |
LEVER-BRAKE, HAND Price: $156.45 |
| 3 |
131-3025 |
LH COVER ASM Price: $120.40 |
| 4 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 5 |
138-5029 |
COVER-SIDE, RH This part replaces 131-3101. Price: $164.48 |
| 6 |
104-8310 |
RING-RETAINING Price: $0.25 |
| 7 |
109-6887 |
PIN-CLEVIS Price: $3.90 |
| 8 |
131-3004 |
CABLE Price: $11.96 |
| 9 |
115-5103 |
SCREW-HHF Price: $0.34 |
| 10 |
321-2 |
SCREW-HH Price: $2.79 |
| 11 |
3256-67 |
WASHER Price: $0.49 |
| 12 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 13 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 14 |
323-12 |
SCREW-HH Price: $1.14 |
| 15 |
131-3017 |
SPACER Price: $16.56 |
| 16 |
115-5787 |
BRACKET-BRAKE CABLE, RH Price: $11.43 |
| 17 |
131-1833 |
CABLE-BRAKE, RH Price: $117.13 |
| 18 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 19 |
114-9997 |
BRACKET-BRAKE CABLE, LH Price: $11.43 |
| 20 |
131-1834 |
CABLE-BRAKE, LH Price: $105.25 |
| 21 |
131-3065 |
EQUALIZER-CABLE Price: $26.50 |
| 22 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 23 |
107069 |
CLIP Price: $1.79 |
| 24 |
701197 |
E-RING Price: $2.99 |
| 25 |
131-3021 |
PIN Price: $9.70 |
| 26 |
32120-46 |
RING-RETAINING Price: $1.99 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 29 |
1-653600 |
BUSHING Price: $18.99 |
| 30 |
137-1659 |
BUSHING ASM This part replaces 131-3058. Price: $95.46 |
| 31 |
132-3833 |
SPRING-TORSION Price: $4.60 |
| 32 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 33 |
3290-126 |
SCREW-HWH Price: $1.79 |
