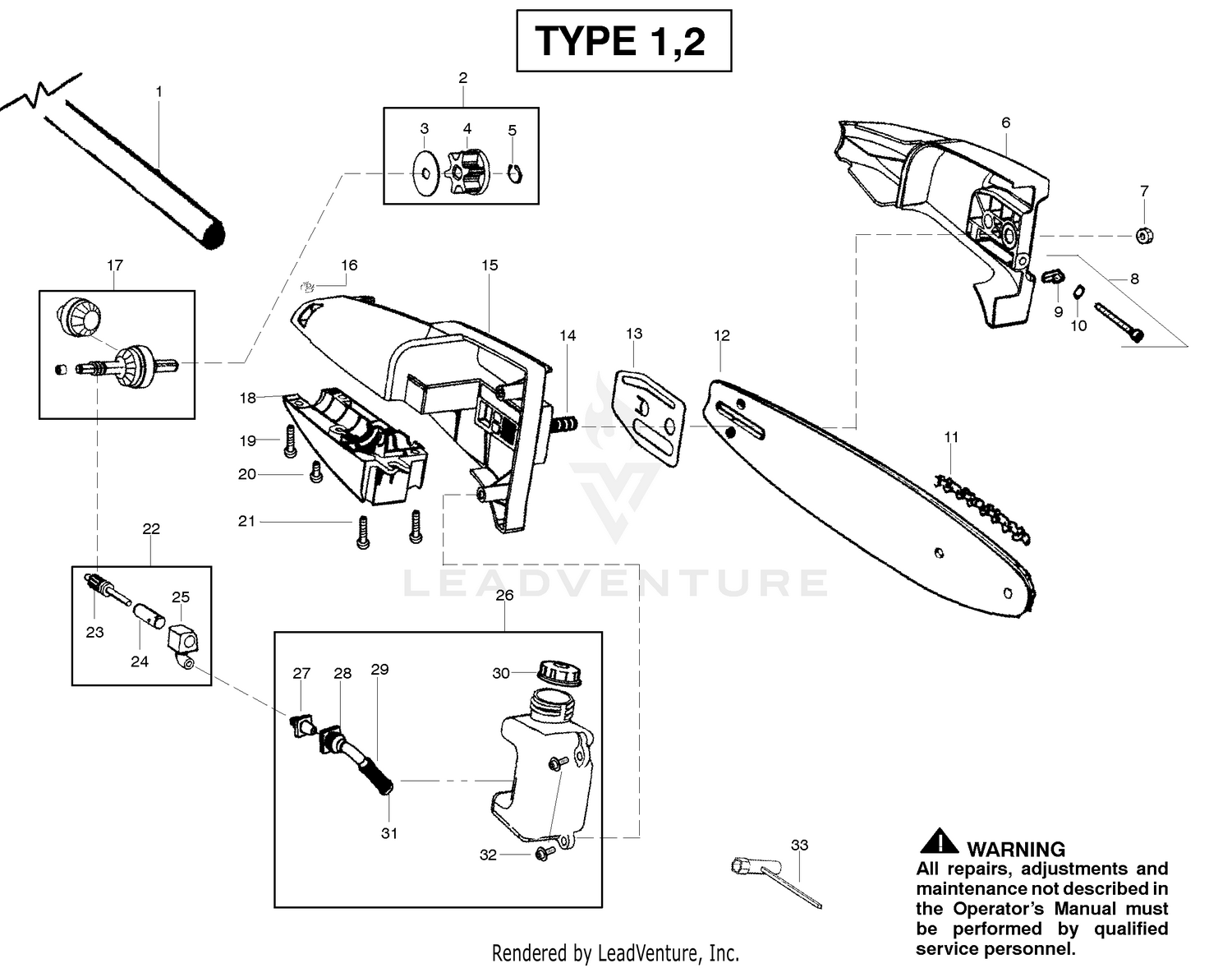

| Ref | Part Number | Description |
|---|
| 1 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 1 |
545008090 |
Assy-Driveshaft Price: $31.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
530056521 |
Washer Price: $2.99 |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 4 |
530056520 |
Sprocket Price: $5.99 |
| 5 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 5 |
530056563 |
Retainer-Sprocket Price: $2.99 |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 7 |
145-4569 |
HYD CYLINDER ASM This part replaces 106-9064. Price: $461.20 |
| 7 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 8 |
110-3955 |
CENTER LIFT ARM ASM Price: $148.89 |
| 9 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 9 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 11 |
110-3953 |
SPRING-TORSION, CENTER Price: $9.16 |
| 11 |
952051549 |
Accy.-Chain-8" Price: Call Us |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
530044908 |
Bar-8" Price: Call Us |
| 13 |
322-1 |
SCREW-HH Price: $0.22 |
| 13 |
530056523 |
Plate-Bar pad Price: $2.99 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
530016133 |
Bolt-Bar Price: $1.99 |
| 15 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
530016284 |
Nut Price: $1.99 |
| 17 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 17 |
530071646 |
Kit-Gear Assy Price: $22.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
530056514 |
Hsg.-Lower Price: $10.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
530016312 |
Screw Price: $1.99 |
| 20 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 20 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 21 |
5-1226 |
WASHER Price: $3.90 |
| 21 |
530015886 |
Screw Price: $1.99 |
| 22 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
105-0452 |
PIVOT HINGE ASM Price: $477.65 |
| 23 |
530053764 |
Assy-Gear Plunger Price: $2.99 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 24 |
530053765 |
Barrel Price: $4.99 |
| 25 |
136-8485 |
FRAME-PULL, CENTER This part replaces 108-8633. Price: $382.66 |
| 25 |
530056522 |
Block-Oil Price: $6.99 |
| 26 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 27 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 27 |
530056524 |
Fitting-Oil Line Price: $2.99 |
| 28 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 28 |
530021160 |
Intake-Oil Line Price: $2.99 |
| 29 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 29 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
| 30 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 30 |
530150552 |
CAP OIL This part replaces 530053072. Price: $2.99 |
| 31 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 31 |
530056533 |
Filter-Oil This part replaces 530030189. Price: $2.99 |
| 32 |
530015843 |
Screw Price: $1.99 |
| 32 |
95-1639 |
FITTING-STR,ORIF Price: $63.47 |
| 33 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 34 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 35 |
105-5740 |
HOOK-LIFT Price: $13.14 |
| 36 |
33115-025 |
SCREW-HH Price: $0.61 |
| 37 |
3272-11 |
PIN-COTTER Price: $0.99 |
