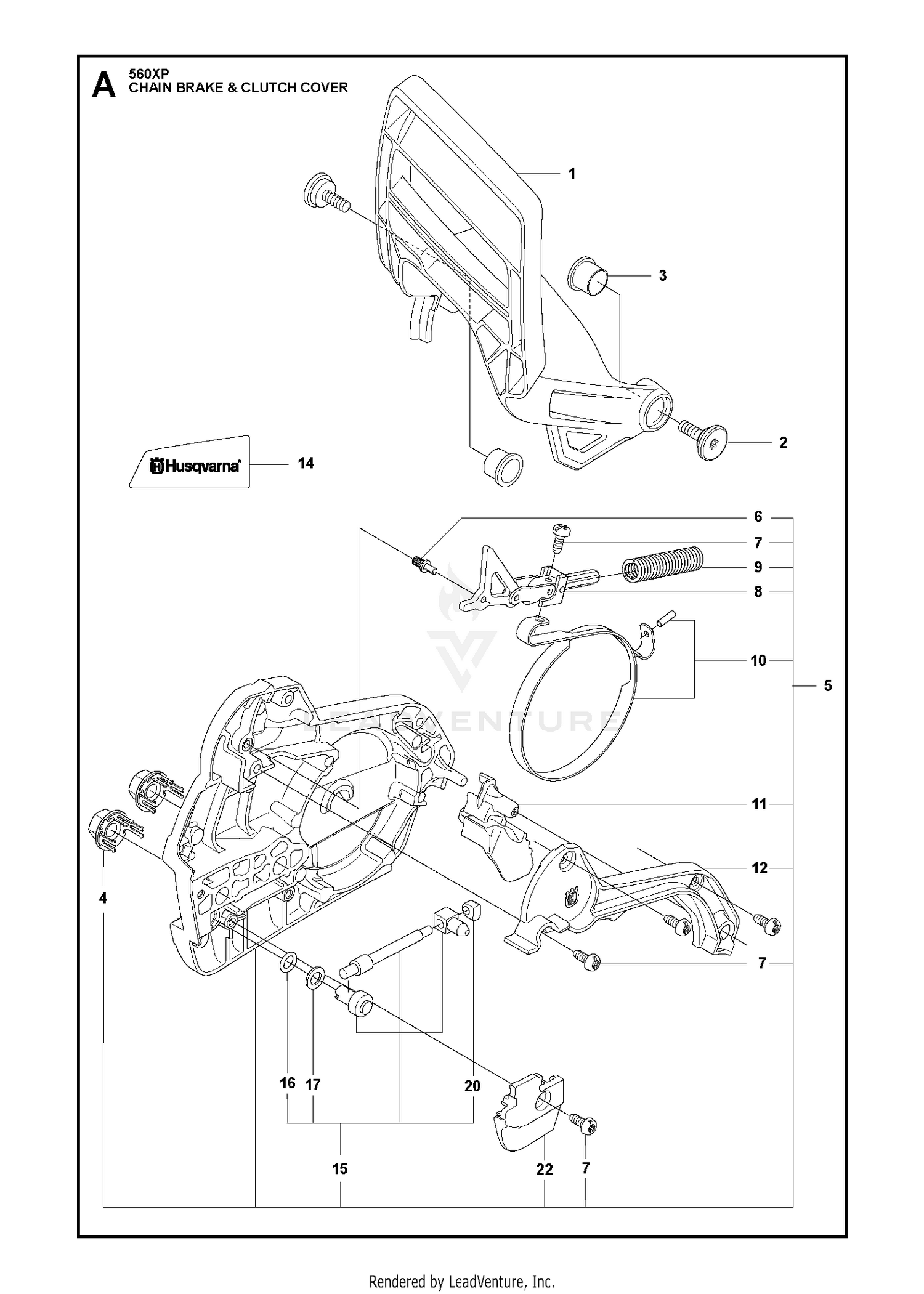

CHAIN BRAKE & CLUTCH COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505200902 | HAND GUARD Price: $22.99 |
| 2 | 526834501 | SCREW Price: $3.99 |
| 3 | 577780201 | BUSHING Price: $4.99 |
| 4 | 505197301 | NUT RETAINER ASSY Price: $6.99 |
| 5 | 501846103 | CLUTCH COVER ASSY 560 AND 550 This part replaces 501846101. Price: $109.99 |
| 6 | 503751801 | PIN Price: $3.99 |
| 7 | 526221801 | SCREW Price: $2.99 |
| 8 | 505199301 | KNEE JOINT ASSY Price: $19.99 |
| 9 | 503908301 | SPRING Price: $4.99 |
| 10 | 505199502 | BRAKE BAND Price: $14.99 |
| 11 | 505201601 | GUARD Price: $6.99 |
| 15 | 575260404 | CHAIN TENSIONER KIT This part replaces 575260403. Price: $9.99 |
| 16 | 740480702 | O-RING Price: $3.99 |
| 17 | 503230063 | WASHER Price: $3.99 |
| 20 | 537017401 | SLEEVE Price: $4.99 |
| 22 | 505199801 | CHAIN GUIDE Price: $4.99 |
