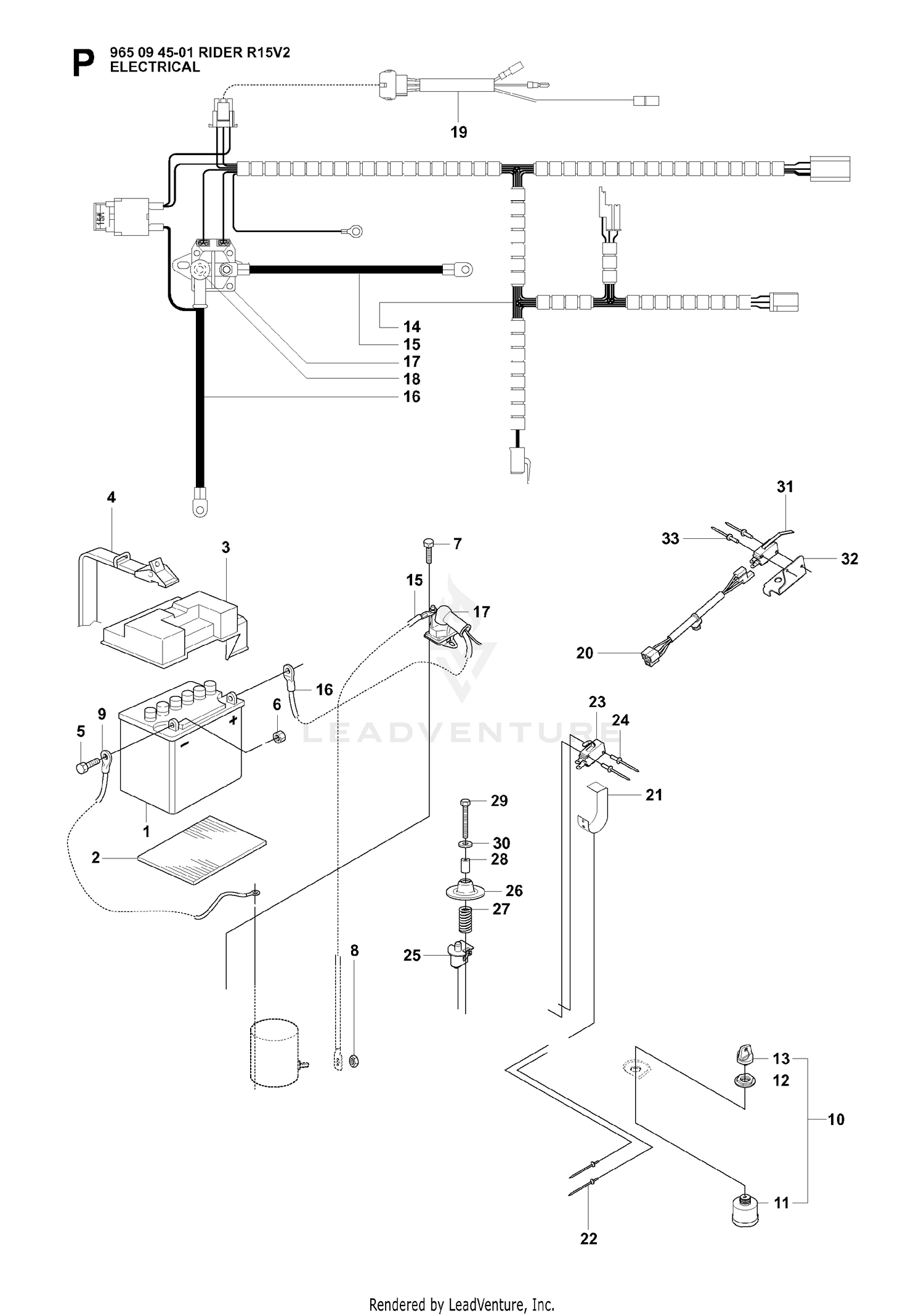

ELECTRICAL
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3234-11 | SCREW-HHF Price: $1.23 |
| 1 | 531031071 | BATTERY This part replaces 506788801. Price: $139.99 |
| 2 | 535441101 | MAT Price: $8.55 |
| 3 | 237-68 | O-RING Price: $3.22 |
| 3 | 506809901 | Cover Price: $18.17 |
| 4 | 120-5118 | SHAFT-ADJUSTER Price: $44.64 |
| 4 | 506836802 | BELT Price: $9.99 |
| 5 | 106-5344 | BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 | 725237071 | SCREW Price: $3.99 |
| 6 | 119-4067 | SCREW-HH Price: $0.81 |
| 6 | 731231601 | NUT Price: $2.99 |
| 7 | 725236461 | SCREW Price: $2.99 |
| 7 | 99-2097 | DETENT Price: $12.71 |
| 8 | 120-5116 | WASHER-WAVE Price: $9.17 |
| 8 | 506899801 | NUT Price: $2.99 |
| 9 | 108-0015 | WASHER-FLAT Price: $0.39 |
| 9 | 544967601 | CABLE Price: $19.99 |
| 10 | 137-6130 | SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 11 | 119-4155 | WASHER-HARDENED Price: $4.16 |
| 11 | 544442201 | IGNITION SWITCH Price: $17.99 |
| 12 | 120-5120 | SPRING-COMPRESSION Price: $2.89 |
| 13 | 119-4039 | NUT-HEX, NI Price: $0.28 |
| 13 | 544442401 | IGNITION KEY Price: $6.99 |
| 14 | 544926301 | WIRING Price: $49.99 |
| 15 | 105-8095-01 | BEDBAR-FAIRWAY Price: $303.06 |
| 15 | 544928601 | CABLE Price: $9.99 |
| 16 | 119-4151 | SCREW-BEDKNIFE Price: $0.41 |
| 16 | 544926101 | RP CABLE Price: $22.99 |
| 17 | 544439801 | RELAY Price: $17.99 |
| 18 | 506899801 | NUT Price: $2.99 |
| 19 | 137-6093 | BEDKNIFE-EDGEMAX LOWCUT This part replaces 137-0832. Price: $166.88 |
| 19 | 535453401 | Price: Call Us |
| 20 | 544892201 | WIRING Price: $22.99 |
| 21 | 506909301 | SPRING Price: $6.99 |
| 22 | 722783902 | Rivet Price: $1.99 |
| 23 | 574316001 | SWITCH This part replaces 535469101. Price: $11.99 |
| 24 | 544440701 | RIVET Price: $2.99 |
| 24 | 61-1950 | WASHER-PLASTIC Price: $0.55 |
| 25 | 506909601 | SWITCH Price: $14.99 |
| 25 | 56-9520 | BUSHING-FLANGED Price: $2.15 |
| 26 | 131-4715 | WASHER Price: $0.95 |
| 26 | 506909701 | WASHER Price: $12.99 |
| 27 | 106-9623 | BOLT-BEDBAR Price: $18.27 |
| 27 | 544441201 | SPRING Price: $4.99 |
| 28 | 3296-33 | NUT-LOCK, NI Price: $2.39 |
| 28 | 506909902 | SPACER TUBE Price: $3.99 |
| 29 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 30 | 115-5258 | SPRING-WIRE, FLAT Price: $3.40 |
| 30 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 31 | 574316101 | MICRO SWITCH This part replaces 544415501. Price: $11.99 |
| 32 | 544415701 | BRACKET Price: $4.99 |
| 33 | 544440701 | RIVET Price: $2.99 |
| 34 | 137-8427 | ES REEL+,5IN FWY(22)11 BLD LD(FSR) Price: $770.20 |
| 37 | 130-0064 | INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 38 | 130-0063 | INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
