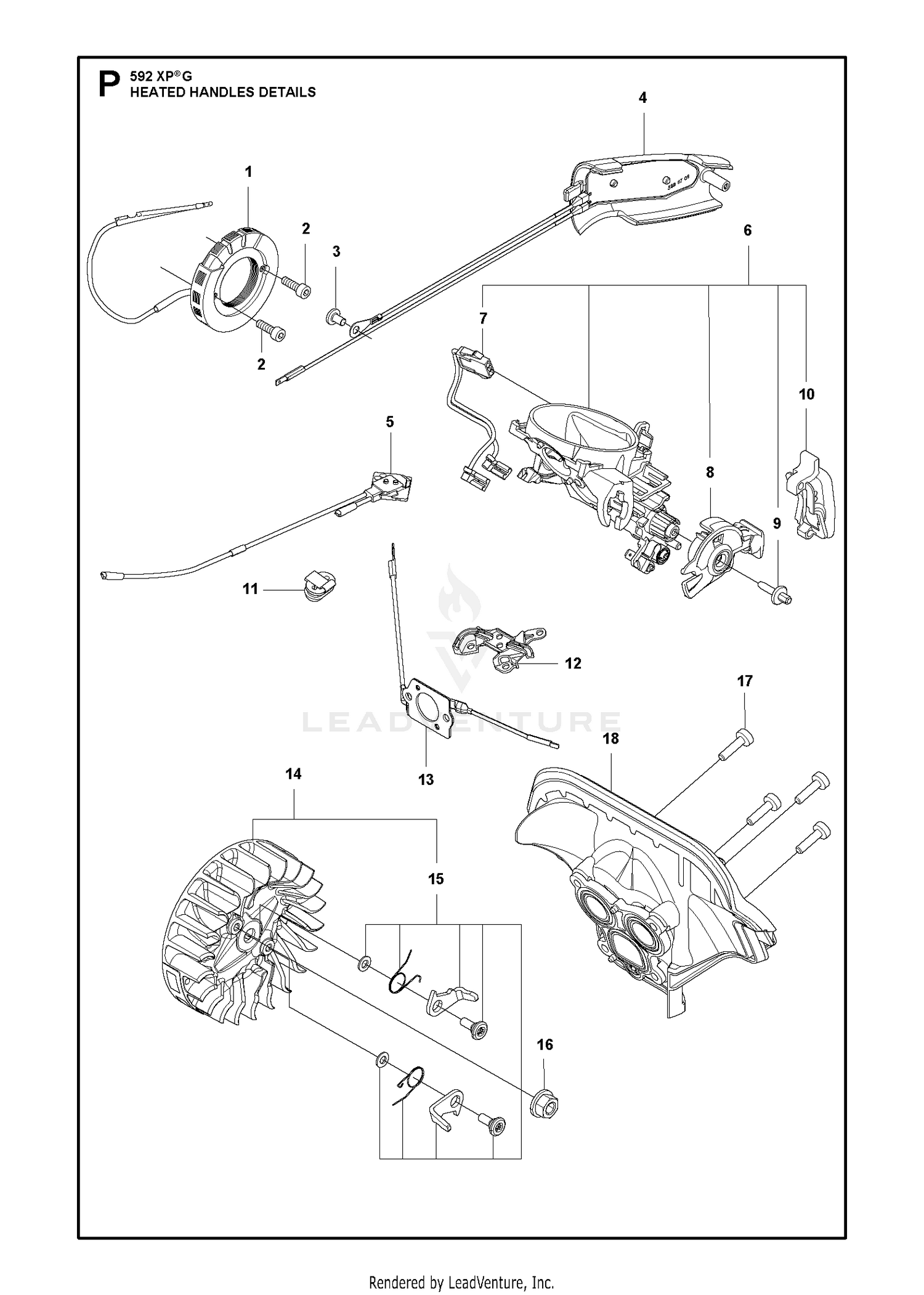

| Ref | Part Number | Description |
|---|
| 1 |
596298301 |
STATOR ASSY Price: $119.99 |
| 2 |
526818102 |
SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 3 |
526221801 |
SCREW Price: $2.99 |
| 4 |
593912701 |
HANDLE INSERT ASSY XPG Price: $27.99 |
| 5 |
593908901 |
THERMOSTAT ASSY Price: $64.99 |
| 6 |
593261004 |
FILTER HOLDER ASY XPG DETENT This part replaces 593261002. Price: $49.99 |
| 8 |
593260801 |
CHOKE CONTROL ASSY Price: $9.99 |
| 9 |
505156201 |
SCREW Price: $2.99 |
| 10 |
593909001 |
SEALING CHOKE CONTROL Price: $3.99 |
| 11 |
582157101 |
GROMMET Price: $3.99 |
| 12 |
598940901 |
RETAINER THERMOSTAT Price: $4.99 |
| 13 |
593908701 |
FOIL ELEMENT CARBURETTOR Price: $37.99 |
| 15 |
597960601 |
SCREW KIT PAWL 90CC SPARE PART Price: $5.99 |
| 16 |
503220401 |
NUT W/ WASHER Price: $3.99 |
| 17 |
526818101 |
SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 18 |
593257902 |
INLET PIPE ASSY WINTER Price: $109.99 |
