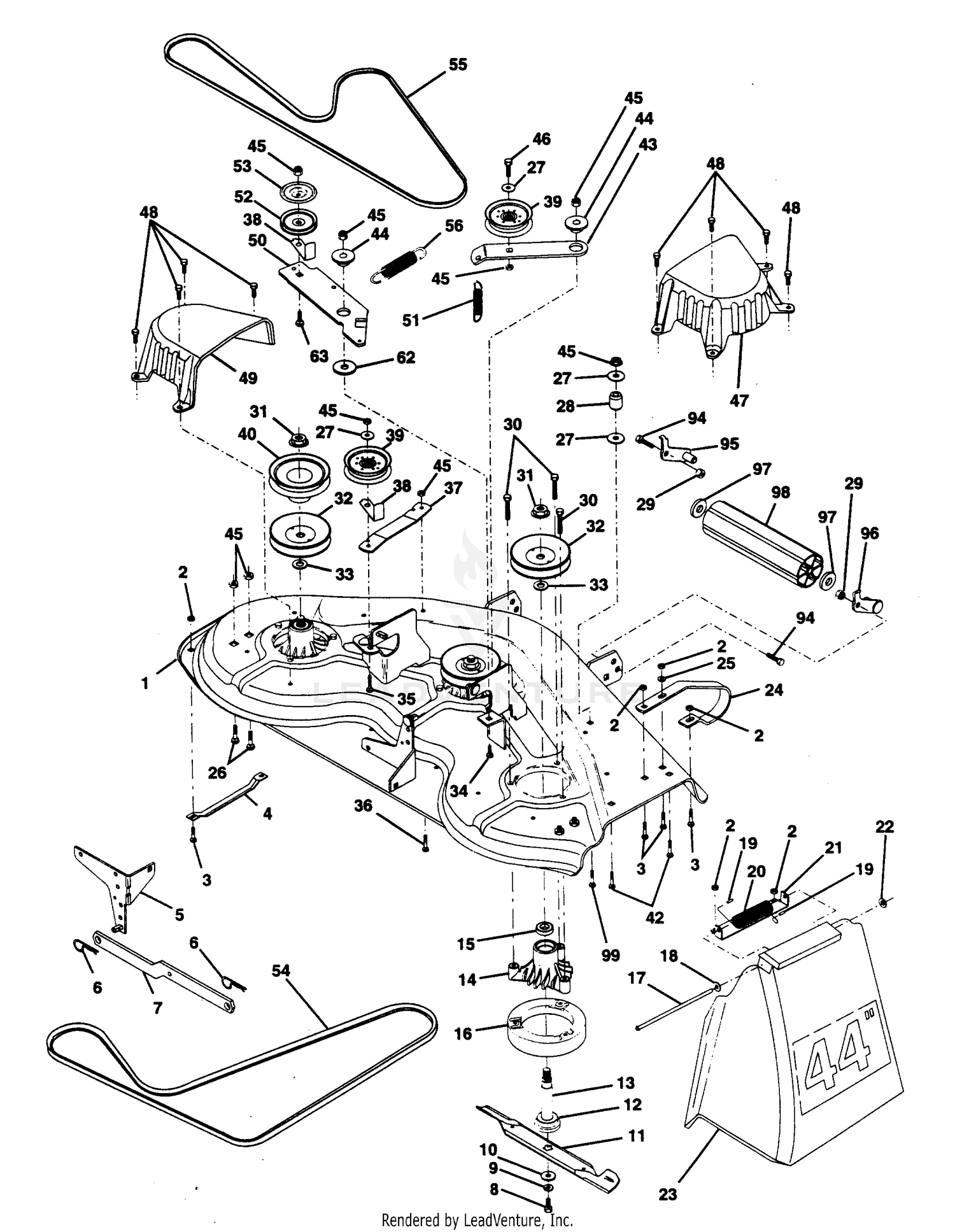

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 1 |
532140579 |
Deck Asm., Mower 44" Vented (AYP part number) Price: $3.33 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 3 |
3211-2 |
SCREW-HH Price: $2.17 |
| 3 |
872110506 |
Bolt, Carriage 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 4 |
532007631 |
Runner, Mower LH (AYP part number) This part replaces 532125074. Price: $11.99 |
| 5 |
532138457 |
Bracket Asm., Sway Bar (AYP part number) Price: $8.99 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 7 |
23-8670 |
DISCONTINUED Price: Call Us |
| 7 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 8 |
21-5720 |
DISCONTINUED Price: Call Us |
| 8 |
532850857 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched (AYP part number) Price: $1.99 |
| 9 |
21-0410 |
DISCONTINUED Price: Call Us |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
21-0420 |
DISCONTINUED Price: Call Us |
| 10 |
532140296 |
Washer, Hard Blade Mower Vented (AYP part number) Price: $2.99 |
| 11 |
3290-366 |
DISCONTINUED Price: Call Us |
| 11 |
532130652 |
Blade (3 Required) (AYP part number) Price: $17.99 |
| 12 |
3255-10 |
WASHER-LOCK / EXT Price: $0.25 |
| 12 |
532129895 |
Bearing, Ball #6204 (Mandrel) (AYP part number) Price: $6.99 |
| 13 |
21-2180 |
DISCONTINUED Price: Call Us |
| 13 |
532137553 |
Shaft Asm., W/Lower Brg (Inc. 12) (AYP part number) Price: $22.99 |
| 14 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 14 |
532137152 |
Housing, Mandrel 44" Vent (AYP part number) Price: $24.99 |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 15 |
532110485 |
Bearing, Ball Mandrel (AYP part number) Price: $7.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532140329. Price: $3.99 |
| 17 |
3217-5 |
NUT-HEX Price: $0.25 |
| 17 |
532106735 |
Rod, Hinge (AYP part number) Price: $4.99 |
| 18 |
21-8540 |
DISCONTINUED Price: Call Us |
| 18 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. (AYP part number) Price: $5.99 |
| 19 |
21-5800 |
DISCONTINUED Price: Call Us |
| 19 |
532105304 |
Cap, Sleeve (AYP part number) Price: $2.99 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
532123713 |
Spring, Torsion Deflector (AYP part number) Price: $3.99 |
| 21 |
2412-41 |
CLAMP-R Price: $4.82 |
| 21 |
532137607 |
Bracket, Deflector (AYP part number) Price: $3.99 |
| 22 |
21-0340 |
DISCONTINUED Price: Call Us |
| 22 |
532110452 |
Nut, Push (AYP part number) Price: $1.99 |
| 23 |
532109785 |
Shield, Deflector Mower (AYP part number) Price: $22.99 |
| 23 |
93-5398 |
SCREW-HH This part replaces 21-0330. Price: $3.22 |
| 24 |
32103-12 |
NUT-WING Price: $1.15 |
| 24 |
532136321 |
Runner, RH (AYP part number) Price: $6.99 |
| 25 |
21-2220 |
DISCONTINUED Price: Call Us |
| 25 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 26 |
21-2240 |
DISCONTINUED Price: Call Us |
| 26 |
872110606 |
Bolt Carriage 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 27 |
21-5630 |
DISCONTINUED Price: Call Us |
| 27 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 28 |
38-7430 |
DISCONTINUED This part replaces 21-5790. Price: Call Us |
| 28 |
532132823 |
Spacer, Spring Stop Idler Price: $4.99 |
| 29 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 30 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $1.99 |
| 31 |
21-5640 |
JOINT-BALL Price: $27.80 |
| 31 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 32 |
21-5620 |
DISCONTINUED Price: Call Us |
| 32 |
532129861 |
Pulley, Mandrel (AYP part number) Price: $17.99 |
| 33 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 33 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 34 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 34 |
583611601 |
BOLT.3/8-14X1.25 This part replaces 872140610. Price: $3.99 |
| 35 |
110-0047 |
HOSE-FUEL This part replaces 18-2400. Price: $12.42 |
| 35 |
872110616 |
Bolt, Carriage 3/8-16 x 2 (AYP part number) Price: $3.99 |
| 36 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 36 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 (AYP part number) Price: $3.99 |
| 37 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 37 |
532137166 |
Stiffener, Arm Idler (AYP part number) Price: $3.99 |
| 38 |
3217-7 |
NUT-HEX Price: $0.28 |
| 38 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532137554. Price: $4.99 |
| 39 |
3247-4 |
SCREW-SET Price: $0.54 |
| 39 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 40 |
532136572 |
Pulley, Driven (AYP part number) Price: $24.99 |
| 40 |
95-1823 |
WASHER This part replaces 3-3391. Price: $29.18 |
| 41 |
21-2300 |
ENGINE MOUNT Price: $195.59 |
| 42 |
21-0130 |
RUBBER MOUNT Price: $69.69 |
| 42 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 43 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
532136460 |
Arm, Idler Secondary (AYP part number) Price: $4.99 |
| 44 |
322-6 |
SCREW-HH Price: $0.45 |
| 44 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 45 |
21-0350 |
DISCONTINUED Price: Call Us |
| 45 |
873680600 |
Nut, Crownlock 3/8-16 Unc Price: $1.99 |
| 46 |
21-2310 |
ENG MT BRKT *B Price: $63.43 |
| 46 |
582740701 |
BOLT This part replaces 874760628. Price: $2.99 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |
| 47 |
532137200 |
Cover, Mandrel RH (AYP part number) Price: $14.99 |
| 48 |
23-1850 |
MUFFLER Price: $413.71 |
| 48 |
532137729 |
Screw, Thd Roll 1/4-20 x 5/8 (AYP part number) Price: $2.99 |
| 49 |
32128-19 |
NUT-HF Price: $0.99 |
| 49 |
532136574 |
Cover, Mandrel LH (AYP part number) Price: $12.99 |
| 50 |
323-6 |
SCREW-HH Price: $0.66 |
| 50 |
532137272 |
Arm, Idler Primary (AYP part number) Price: $3.99 |
| 51 |
23-1570 |
DISCONTINUED Price: Call Us |
| 51 |
532137273 |
Spring, Secondary (AYP part number) Price: $3.99 |
| 52 |
32120-69 |
RING-SNAP Price: $2.78 |
| 52 |
532139245 |
Pulley, Idler V Groove (AYP part number) Price: $22.99 |
| 53 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 53 |
532137789 |
Shield, Idler (AYP part number) Price: $4.99 |
| 54 |
23-1630 |
DISCONTINUED Price: Call Us |
| 54 |
532131264 |
V-Belt, Mower Primary Price: $19.99 |
| 55 |
23-1620 |
DISCONTINUED Price: Call Us |
| 55 |
532144200 |
V-Belt Mower 42" This part replaces 532131290. Price: $32.99 |
| 56 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 56 |
532138687 |
Spring, Primary (AYP part number) Price: $2.99 |
| 57 |
23-1650 |
DISCONTINUED Price: Call Us |
| 58 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 59 |
21-4360 |
Metric Nut Price: Call Us |
| 60 |
21-0370 |
DISCONTINUED Price: Call Us |
| 61 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 62 |
251-252 |
BEARING This part replaces 251-261. Price: $98.35 |
| 62 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 63 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 63 |
872110612 |
Bolt Carriage 3/8-16 x 1-1/2 (AYP part number) Price: $3.99 |
| 64 |
21-2260 |
DISCONTINUED Price: Call Us |
| 65 |
21-0050 |
Engine Price: Call Us |
| 66 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 67 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 68 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 69 |
3290-134 |
SCREW Price: $0.27 |
| 94 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 95 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $3.99 |
| 96 |
532175747 |
BRACKET ASM, ROLLER This part replaces 532132273. Price: $7.99 |
| 97 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. (AYP part number) Price: $2.99 |
| 98 |
532132264 |
Roller, Nose Price: $27.99 |
| 99 |
872110614 |
Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5 (AYP part number) Price: $3.99 |
