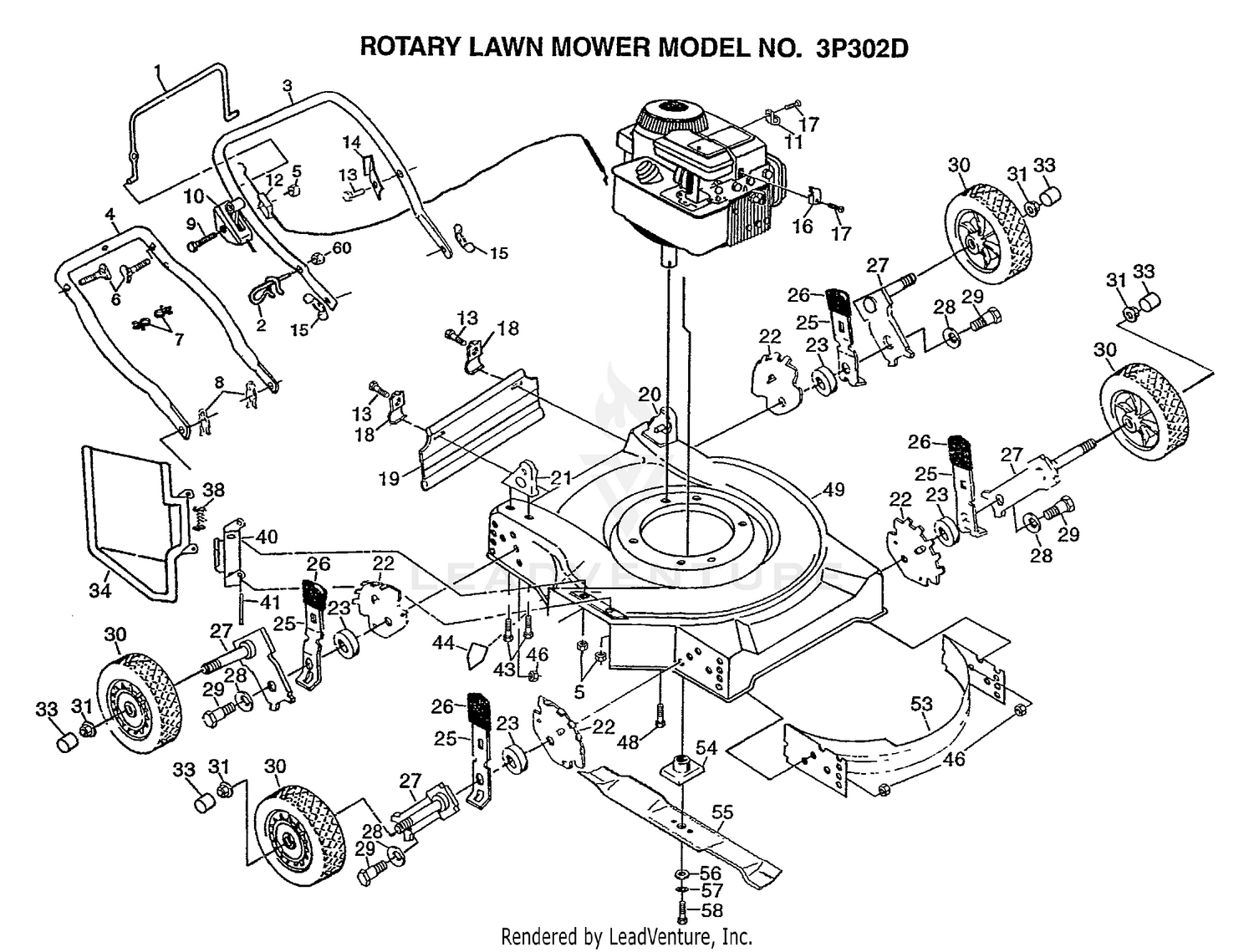

| Ref | Part Number | Description |
|---|
| 1 |
131696 |
CONTROL BAR Price: Call Us |
| 1 |
99-1822 |
RING - SNAP Price: $3.64 |
| 2 |
132001 |
ROPE GUIDE Price: Call Us |
| 3 |
153346X479 |
SUB= 166860X479 Price: Call Us |
| 4 |
151721X479 |
LOWER HANDLE Price: Call Us |
| 4 |
93-3401 |
ROCKER SCREW ASM Price: $5.76 |
| 5 |
63601 |
SUB= 73800400 Price: Call Us |
| 5 |
70-2970 |
NUT This part replaces 51-5210. Price: $2.13 |
| 6 |
131959 |
BOLT.HANDLE.LM Price: Call Us |
| 6 |
99-1824 |
BOLT-BRACKET, ROCKER Price: $15.70 |
| 7 |
151517 |
SUB= 7192J Price: Call Us |
| 7 |
99-1820 |
SPRING - ROCKER Price: $25.61 |
| 8 |
51793 |
HAIRPIN COTTER Price: Call Us |
| 9 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 10 |
851462 |
CONTROL THROTTLE Price: Call Us |
| 10 |
99-1825 |
BOLT W/WASHER Price: $2.14 |
| 11 |
51-5280 |
CAP Price: $4.42 |
| 11 |
87930 |
GUIDE CLIP PM Price: Call Us |
| 12 |
60-7420 |
VALVE-COTTER Price: $7.78 |
| 13 |
750097 |
TAPPING SCREW Price: Call Us |
| 13 |
99-1816 |
RETAINER-UPPER Price: $45.94 |
| 14 |
99-1817 |
SEAL-STEM, VALVE Price: $34.78 |
| 15 |
51-5320 |
SPRING Price: $31.93 |
| 16 |
111190X |
CABLE CLAMP Price: Call Us |
| 16 |
99-1815 |
VALVE-EXHAUST Price: $110.90 |
| 17 |
83816 |
SCREW PM Price: Call Us |
| 17 |
99-1814 |
VALVE-INLET Price: $58.89 |
| 18 |
99-1823 |
BRACKET-SHAFT, ROCKER Price: $82.31 |
| 19 |
140539 |
SKIRT.REAR.22SD. Price: Call Us |
| 20 |
151667X479 |
HDLE BRKT ASSY LH Price: Call Us |
| 21 |
151665X479 |
HDLE BRKT ASSY.RH Price: Call Us |
| 22 |
700325X007 |
BRACKET.ADJ.9POS. Price: Call Us |
| 23 |
146630 |
SPACER.HEIGHT.ADJ Price: Call Us |
| 25 |
700331X004 |
SPRING SELECTOR Price: Call Us |
| 26 |
87877 |
KNOB PM Price: Call Us |
| 27 |
145935X004 |
ARM.AXLE.ASM.BZP. Price: Call Us |
| 29 |
142748 |
BOLT SHLD 3/8-16 Price: Call Us |
| 30 |
800220 |
WHEEL.ASM Price: Call Us |
| 31 |
83923 |
HEX FLANGE LOCKNT Price: Call Us |
| 33 |
800090 |
HUB CAP-PLASTIC Price: Call Us |
| 34 |
145282 |
GUARD.DISCH.22SD. Price: Call Us |
| 38 |
145286 |
SUB= 152186 Price: Call Us |
| 40 |
147775 |
BRACKET.HINGE.W/F Price: Call Us |
| 41 |
147286 |
ROD.HINGE.COMBI-C Price: Call Us |
| 43 |
149741 |
SCREW 5/16-18X3/4 Price: Call Us |
| 44 |
107339X |
DECAL HYT Price: Call Us |
| 46 |
751592 |
LOCKNUT PM Price: Call Us |
| 48 |
150406 |
BOLT.ENG.3/8-16 Price: Call Us |
| 49 |
152787 |
KIT HOUSING MOWER Price: Call Us |
| 53 |
700929X479 |
BAFFLE.FRT/REAR Price: Call Us |
| 54 |
850977 |
BLADE ADAPTOR Price: Call Us |
| 57 |
850263 |
LOCKWASHER Price: Call Us |
| 58 |
851084 |
SCREW Price: Call Us |
| 145655 |
MANUAL.OP.GEN.PUS |
Price: Call Us 145655 |
| 159477 |
MANUAL.P.3P302D |
Price: Call Us 159477 |
