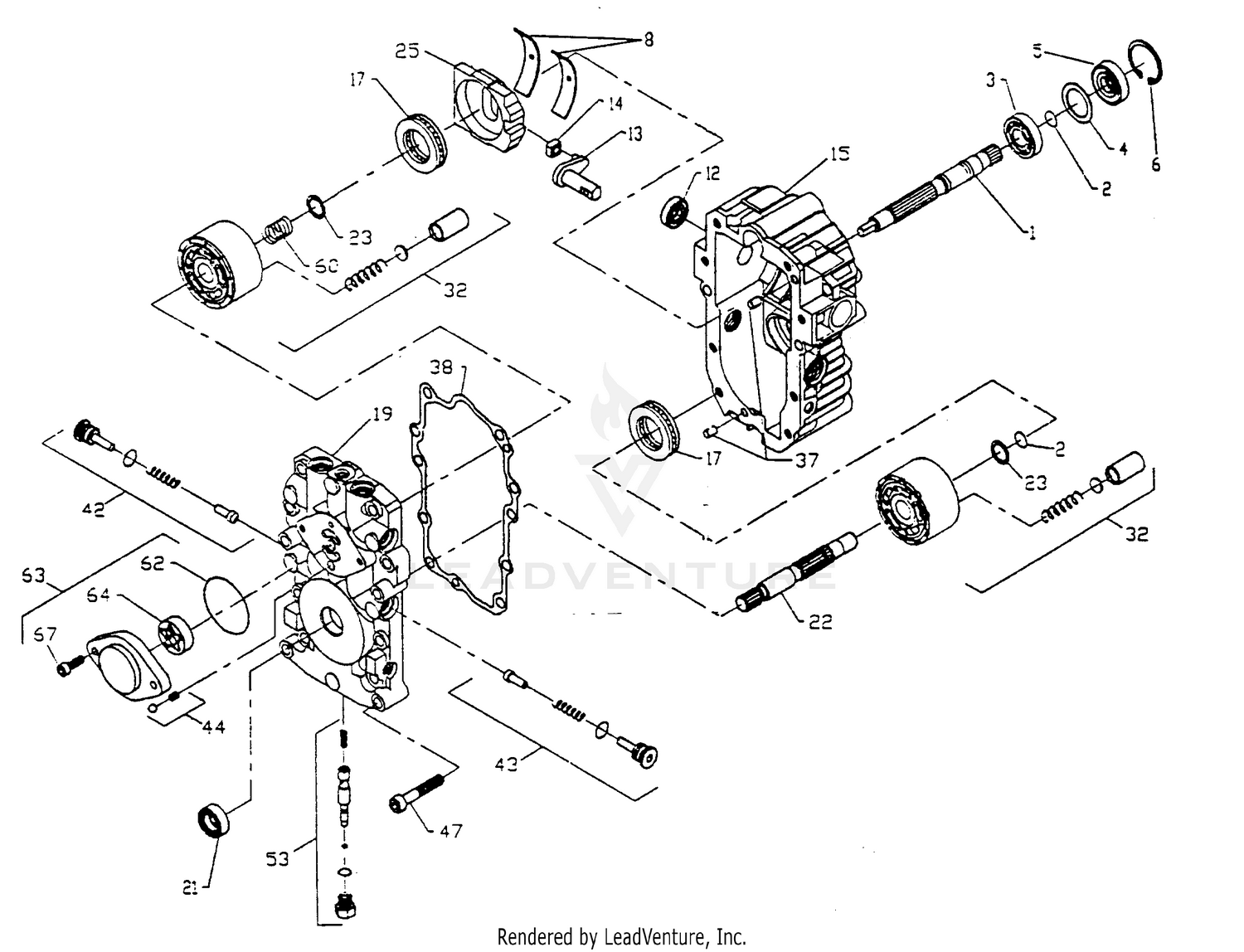

| Ref | Part Number | Description |
|---|
| 1 |
110-4817 |
KIT - AXLE HOUSING This part replaces 95-7538. Price: $657.17 |
| 1 |
532144569 |
Shaft, Pump Price: $182.99 |
| 2 |
115-0622 |
SEAL - OIL This part replaces 100-2557. Price: $10.23 |
| 2 |
532142928 |
Wire Retaining Ring This part replaces 532122716. Price: $3.99 |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 3 |
532122745 |
Bearing, Ball Price: $61.99 |
| 4 |
106-1069 |
O-RING This part replaces 104-2372. Price: $5.20 |
| 4 |
532122715 |
Spacer Price: $5.46 |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 5 |
532142932 |
Seal, Lip This part replaces 532122700. Price: $9.99 |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 6 |
532122699 |
Ring, Retaining Price: $2.38 |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 8 |
532122767 |
Bearing, Cradle Price: $12.44 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 12 |
532122717 |
Seal, Lip Price: $2.68 |
| 13 |
532122748 |
Arm, Trunnion Price: $146.13 |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
532122749 |
Guide, Slot Price: $4.99 |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
532144571 |
Housing Kit, Transmission Price: $75.04 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
532150771 |
BEARING, THRUST This part replaces 532122770. Price: $23.99 |
| 18 |
106-1141 |
STEERING TIE ROD ASM This part replaces 100-3762. Price: $642.02 |
| 19 |
532144572 |
Center Section Kit Price: $762.99 |
| 21 |
532122722 |
Seal, Lip Price: $4.99 |
| 22 |
532144573 |
Shaft, Motor Price: $103.99 |
| 23 |
532144574 |
Washer, Block Thrust Price: Call Us |
| 25 |
532127148 |
Swashplate, Variable Price: $163.93 |
| 32 |
532144577 |
Block Assembly Price: Call Us |
| 37 |
532122786 |
Pin, Stainless, Headless Price: $2.38 |
| 38 |
532122718 |
Gasket, Center Section Price: $3.99 |
| 42 |
532144578 |
Check Valve Kit Price: $46.99 |
| 43 |
532144578 |
Check Valve Kit Price: $46.99 |
| 44 |
532144579 |
Charge Relief Kit Price: $5.99 |
| 47 |
532122752 |
Screw, Socket Head, Cap Price: $2.99 |
| 53 |
532127153 |
Bypass Valve Kit Price: $96.99 |
| 60 |
532144580 |
Block Spring Price: Call Us |
| 62 |
532144581 |
O-Ring Price: $3.99 |
| 63 |
532144582 |
Charge Pump Kit Price: $157.88 |
| 64 |
532144583 |
Gerotor Assembly Price: $28.99 |
| 67 |
532144584 |
Screw, Socket Head, Cap Price: $3.08 |
