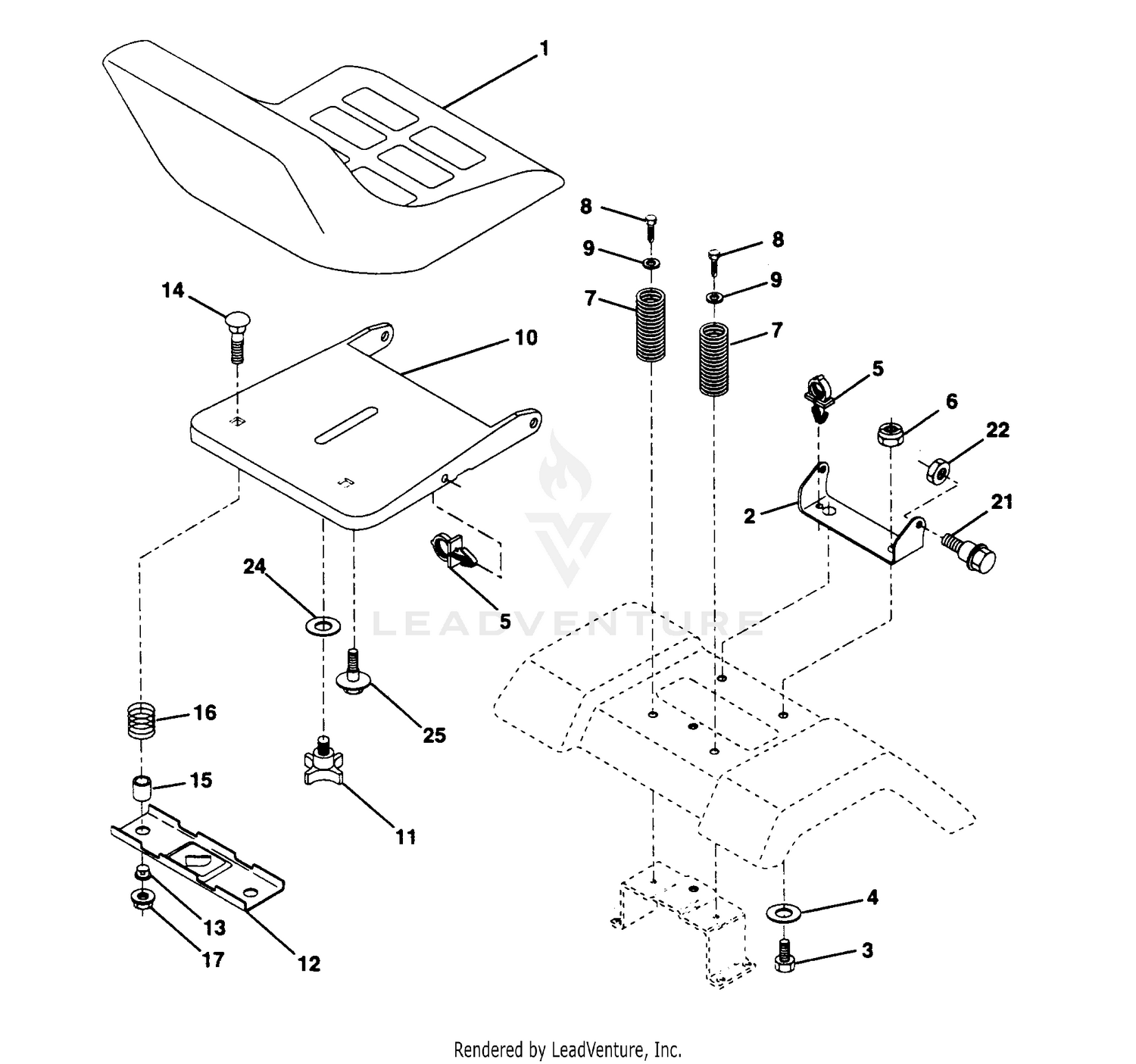

| Ref | Part Number | Description |
|---|
| 1 |
115-8293-0P |
TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 |
532127428 |
Seat V450 Blk/blk Std (AYP part number) Price: $119.99 |
| 2 |
114-5410 |
SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 |
532140551 |
Bracket Pivot Seat 8 720 (AYP part number) Price: $3.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
819131610 |
Washer 13/32 X 1 X 10 Ga (AYP part number) Price: $3.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
532145006 |
Clip Push-In (AYP part number) Price: $2.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $14.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
Bushing Snap Blk Nyl 50 Id (AYP part number) Price: $3.99 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $2.99 |
| 15 |
532134300 |
Spacer Split 28x 96 Yel Zinc (AYP part number) Price: $3.99 |
| 16 |
532121250 |
Spring Cprsn 1 27 Blk Pnt (AYP part number) Price: $3.99 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
532139888 |
Bolt Shoulder 5/16-18 Unc Blkz (AYP part number) Price: $2.99 |
| 22 |
873800500 |
Nut Hex Lock W/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 24 |
819171912 |
Washer 17/32 X 1-3/16 X 12 Ga. (AYP part number) Price: $3.99 |
